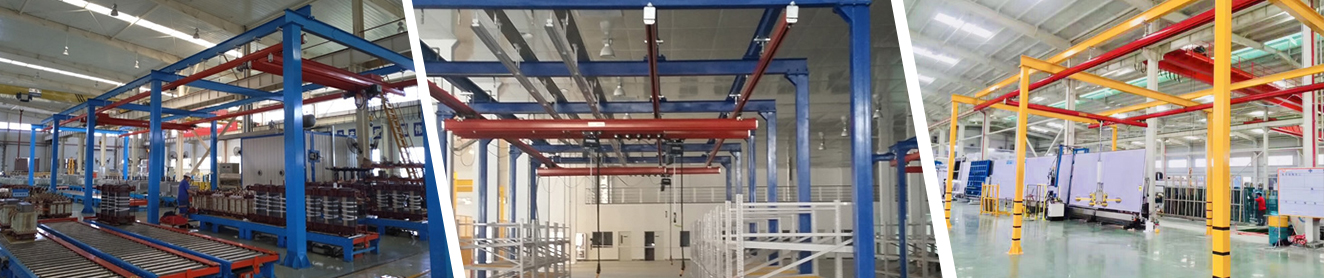

Workstation cranes are light, modular crane systems that serve one workplace or one section of a production line instead of the whole building. Enclosed steel or aluminum tracks are hung from the roof structure or carried by a free-standing frame, and a chain hoist travels along them, so operators can lift and position loads by hand without waiting for the main overhead crane.
Kinocranes builds the full range. Single girder and double girder light crane systems cover a rectangular working area with loads from 125 kg up to 3 t. Monorail systems move loads along a line on straight and curved track. Aluminum rail systems are the lightest to push and suit clean production areas, telescoping cranes reach beyond the runway, and aluminum jib cranes serve a single machine or bench. For loads up to 5 t, or where the building cannot carry a suspended track, we supply free-standing bridge cranes on their own steel structure.
All systems are assembled from standard bolted components, so they can be extended, converted or moved when your production layout changes. Send us the load, the working area, the building height and a photo or sketch of the roof structure, and our engineers will reply with a layout and quotation.
Aluminum Jib Crane
Aluminum Jib Crane
The aluminum jib crane is a workstation crane with a boom made from an anodised aluminum rail profile. The hoist trolley runs inside the profile, and a tie rod above the boom carries the load back to the pillar or wall bracket. It is designed for loads from 80 kg to 500 kg and arm lengths from 2 m to 5 m.
Telescoping Light Crane System
Telescoping Light Crane System
The telescoping light crane system is a suspension crane whose girder can be pulled out sideways beyond the runway. It is used when the load has to be picked up or set down outside the area covered by the crane tracks: inside a machine, on a truck or in a container, next to an assembly line or across an aisle.
Aluminum Rail Light Crane System
Aluminum Rail Light Crane System
The aluminum rail light crane system uses extruded, anodised aluminum profiles instead of steel track. The profiles weigh from only 5.4 kg per metre, so the crane girder is very light and an operator can move and position the load by hand with very little force.
Double Girder Light Crane System
Double Girder Light Crane System
The double girder light crane system is used when a single girder cannot carry the load or cover the span. Two parallel girders are joined by end carriages and travel on enclosed tracks; the electric chain hoist sits on a trolley frame between the two girders.
Light Monorail Crane System
Light Monorail Crane System
The light monorail crane system moves loads along a fixed line. A single enclosed track is suspended above the work area, and one or more hoists travel along it on trolleys. It is the simplest and most economical member of our modular light crane family, for loads from 125 kg to 2 t.
Single Girder Light Crane System
Single Girder Light Crane System
The single girder light crane system is a modular overhead suspension crane for loads from 125 kg to 2 t at individual workstations and along production lines. One crane girder travels on two parallel enclosed tracks and an electric chain hoist runs along the girder, so the operator can reach every point of a rectangular working area.
Free Standing Bridge Crane
Free Standing Bridge Crane
Free standing bridge crane has the advantages of simple structure, convenient manufacture and installation, light weight, and the main girder is mostly of slant rail box structure. And wide range of application.
Ceiling Mounted Workstation Crane
Ceiling Mounted Workstation Crane
Kinocranes offers a complete line of bridge cranes including workstation bridge cranes that are easy to install and relocate. For all of your work station bridge crane needs contact Kinocranes.
Stacker Cranes
Stacker Cranes
Stacker cranes are essential lifting and transport equipment for high-bay warehouses, serving as a hallmark of such storage facilities. Their primary function is to operate within the aisles of high-bay warehouses, inserting goods located at the aisle entrances into the shelves or retrieving items from the shelves to transport them back to the aisle entrances.
| Type | Capacity | Span (m) | Lift Height (m) | Duty (ISO) | Rail |
| Free-Standing Bridge | 0.08 – 5 t | 0.7 – 15 | 3 – 10 | A1 – A6 | Ω / enclosed track |
| Ceiling-Mounted | 0.25 – 2 t | 0.7 – 9 | 3 – 10 | A1 – A6 | Suspended track |
| Single Girder Light Crane | 0.125 – 2 t | up to 8.5 | To order | Per hoist | Enclosed steel track, flexible or rigid |
| Double Girder Light Crane | 0.5 – 3 t | up to 7.5 | To order | Per hoist | Enclosed steel track, reinforced |
| Light Monorail | 0.125 – 2 t | line layout, curves R1.5 / R2 | To order | Per hoist | Enclosed steel track, straight / curved |
| Aluminum Rail Light Crane | up to 2 t | suspension distance up to 8 | To order | Per hoist | Anodised aluminum profile, 105 – 260 mm |
| Telescoping Light Crane | 0.125 – 0.5 t | extension up to 1.3 | To order | Per hoist | Steel or aluminum track |
| Aluminum Jib Crane | 0.08 – 0.5 t | arm 2 – 5 | To order | Per hoist | Aluminum boom, 270° / 180° slewing |
| Stacker Crane | per spec ⚙ | aisle-width | rack height | — | Guided mast |
Need a size outside this range? We engineer custom up to 500 t for foundry & steel. Tell us your load & span →
Experience superior lifting capabilities with our 2-ton freestanding bridge crane, tailored for export. From seamless on-site installation to versatile applications in manufacturing and warehouses, our cutting-edge technology ensures a streamlined workflow. Elevate efficiency with precision and reliability in every lift.
The multi-pole power conductor line for crane is a slide line with the function of preventing accidental impact and hazard.
A USA customer purchased our electric chain hoist. The capacity is 3 ton, and lifting height is 9 m. Customize points: 1. 220V single phase voltage. 2. Double lifting speed. 3. Low clearance design with higher effective lifting height and smaller space occupation. Specification of Low Clearance Design Electric Hoist with Motorized Trolley: Lift load: 3t…
Trusted by customers in 120+ countries — here is what stands behind every crane we ship.
Every crane is built with globally recognized components and leaves the factory fully certified.
No two sites are the same. We engineer each crane around your span, capacity, headroom, and duty cycle.
Support continues long after your crane leaves the factory — through installation, operation, and beyond.
Rigid structures built from standardized, interchangeable modules — adaptable to almost any application.
Every order ships with the engineering and support needed to run in your country, your grid, and your plant.
From the first drawing to final installation, our engineers work alongside your team.
Cranes engineered for harsh and hazardous sites — from cold storage to foundries to chemical plants.
Electrics matched to your national grid, so your crane runs the day it arrives.
A stocked accessories inventory keeps your project on schedule — before and after delivery.
Light duty flexible track lifting equipment is used for transporting materials in a line, which can directly connect the loading worker and unloading worker, such as the out-back haul, circle haul, etc.
This kind of manufacturing usually uses a variety of cranes, including High working class, high lifting capacity crane, low working class, low lifting capacity crane.
Dust-free workshop electric overhead crane is widely used in various clean workshop environments such as biotechnology, medical equipment, pharmaceutical production, food production, and semiconductor manufacturing.
