Single Girder Overhead Crane

Overhead crane series

  • Capacity: 0.5~20t
  • Lift Height: 3~35m or customized
  • Span: 3~32m
  • Lifting Mechanism: Wire rope hoist or electric chain hoist
  • Protection class: IP44/IP54
  • Working temperature: -20~+40℃
  • Color:Red, yellow or customized
Applications:

Widely used in petroleum and petrochemical, railway construction, civil aviation airports, hydroelectric power stations, ports, paper making, building materials, metallurgy and other workshops.

Leave Message Chat Online

  • Description
  • Technical Data
  • Advantages
  • Application

Description

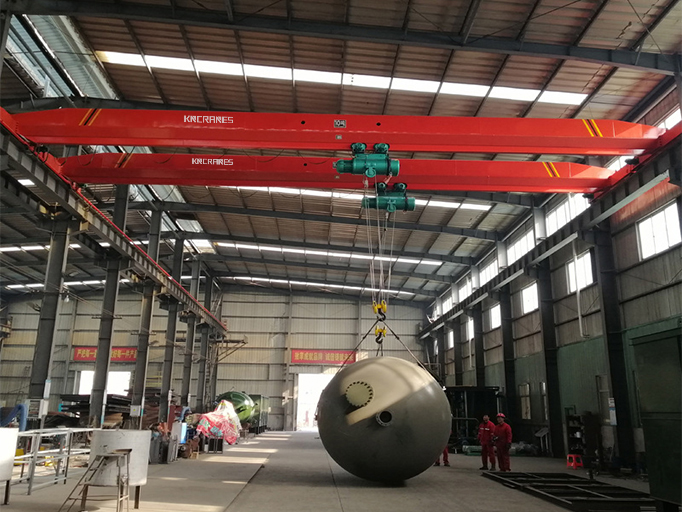

Electric single girder overhead crane is equipped with a CD1 model or MD1 model electric wire rope hoist, the lifting mechanism can be single speed or double speed type, specially the speed can also be VVVF TYPE.

Electric single girder overhead cranes have the advantages of compact appearance, light weight, low wheel pressure, stable running speed, low noise, and convenient installation and maintenance. It is suitable for use in warehouses, workshops, power stations and other places such as maintenance jobs and materials handlings.

Technical Data

Capacity 0.5~20t
Span 3~32m
Lifting Height 3~35m or customized
Lifting speed Single speed: 3.5~8 m/min or customized
Double speed: 3.5~8/0.35~0.8 m/min or customized
Lifting mechanism Wire rope hoist or electric chain hoist
Work duty M3~M5
Power supply 220/230/380/400/415/440V/460-AC-3Phase-50/60Hz or as require
Control method Push button, wireless remote control, cabin control
Application area Factory, workshop, warehouse, power station, logistic, steel mill etc.
Color Red, yellow or customized
Working temperature -20~40° or as require
Protection class IP44; IP54; IP55; IP65
Safety device Buffer, current overload protection, overload device, power failure protection, lifting height limit device, gravity limit device

Advantages

  • Single welding box girder
  • DIN/FEM standard deflection
  • Whole length CNC cutting for complete web plate, high deflection accuracy
  • High quality automatic welding and NDT inspection
  • Shot-blasting Sa2.5 for complete girder after welding, stress release
  • High tension bolts mounting between girder and legs, safety connection
  • Excellent driving properties, long lifetime design.
  • Excellent performance, stable operation, high efficiency, suitable for a variety of operating environments, effectively reduce labor costs
  • Simple installation, convenient operation and maintenance, smooth operation, low noise

Application

Electric single girder overhead cranes are widely used in petroleum and petrochemical, railway construction, civil aviation airports, hydroelectric power stations, ports, paper making, building materials, metallurgy and other workshops, warehouses, and material yards.
