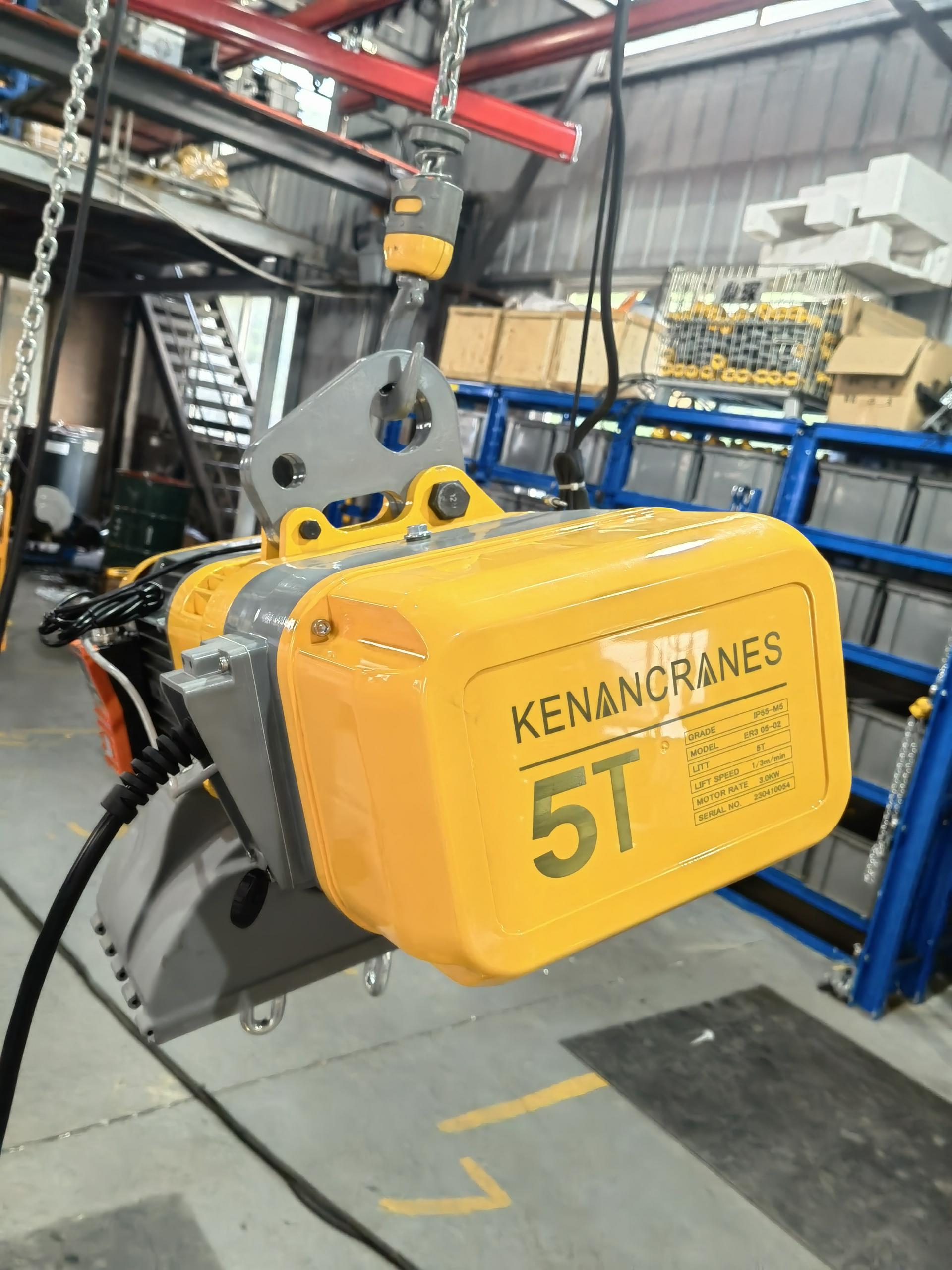

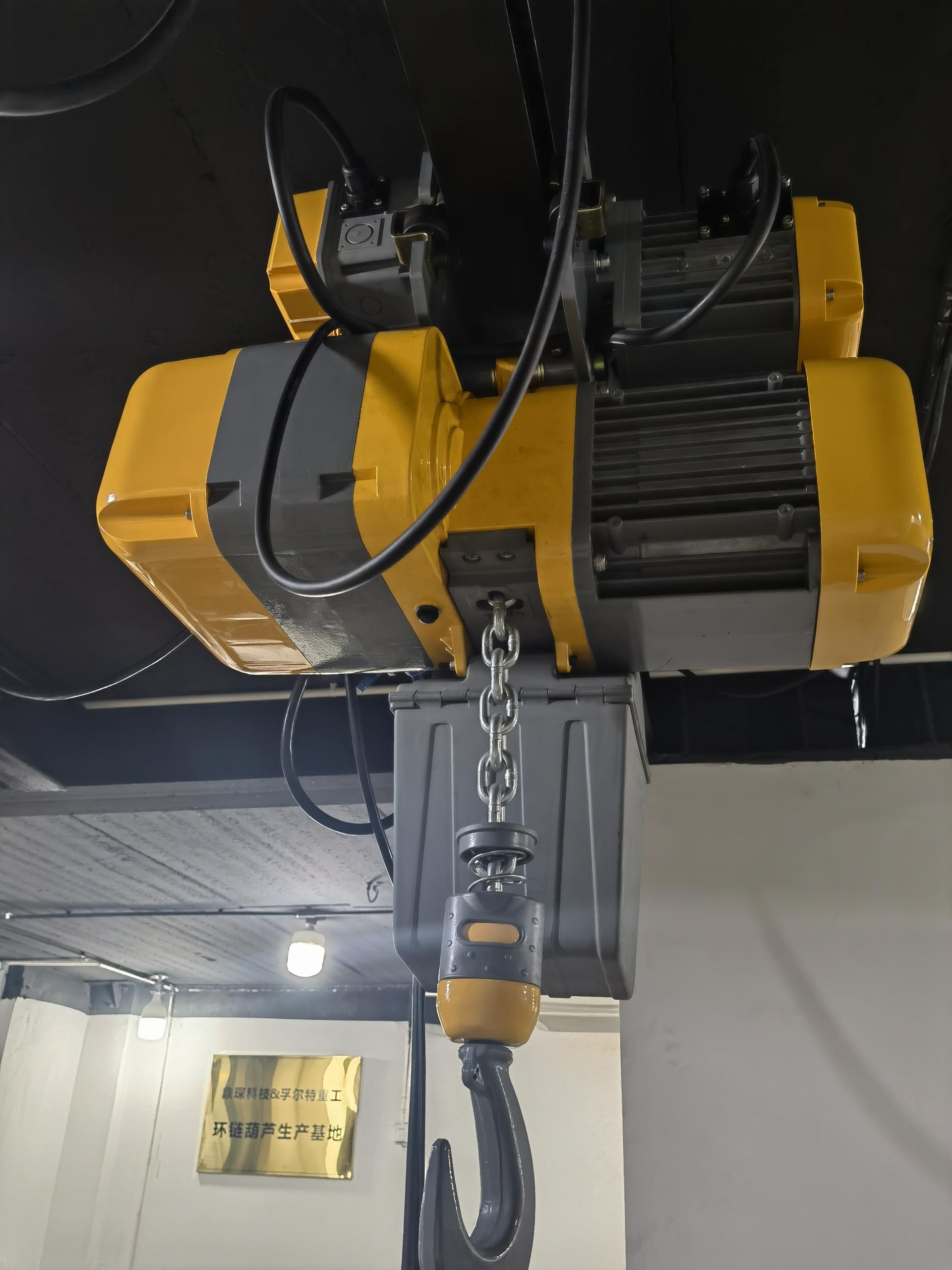

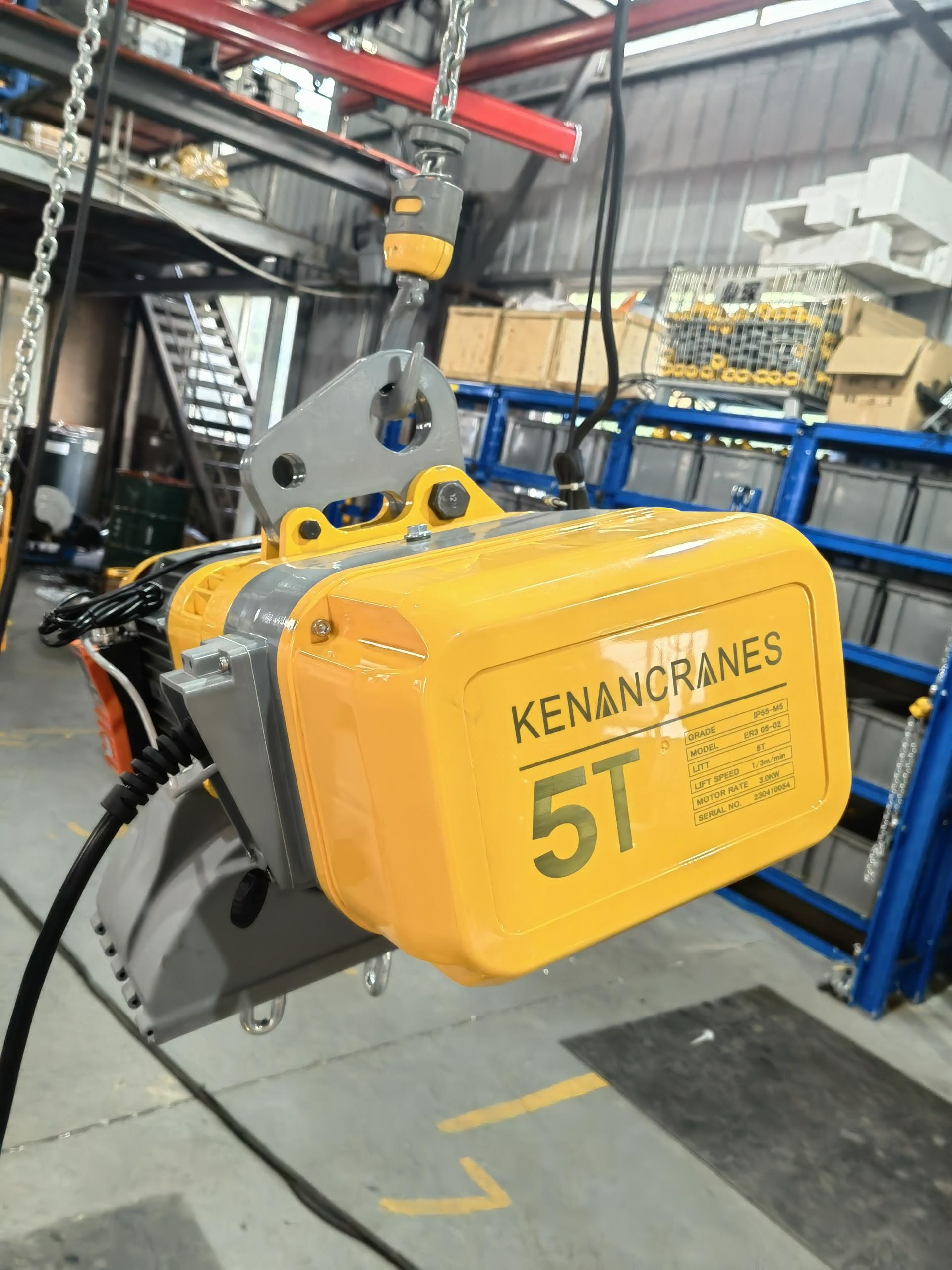

Electric Chain Hoist

Electric Hoist Series

Electric chain hoist is a light and small lifting electric hoist together with overhead crane, gantry crane, jib crane for efficient material handling.

  • Maximum Lifting Weight: 20t
  • Lifting Height: 3-12m
  • Lift Speed: 6.8 m/min; 5.4 m/min; 2.7 m/min
  • Certification: CE SGS ISO
  • Type: Trolley type/ Fixed type
  • Working class: M3
  • Power supply: as your request
  • Working temperature: -20℃~+40℃
  • Control Method: Pendant control/remote control
Applications:

Factory, storage, wind-power stations, logistics, ports, construction field, and other places or workshops, etc.

Leave Message Chat Online

  • Description
  • Technical Data
  • Product Details
  • Advantages
  • Product Application

Description

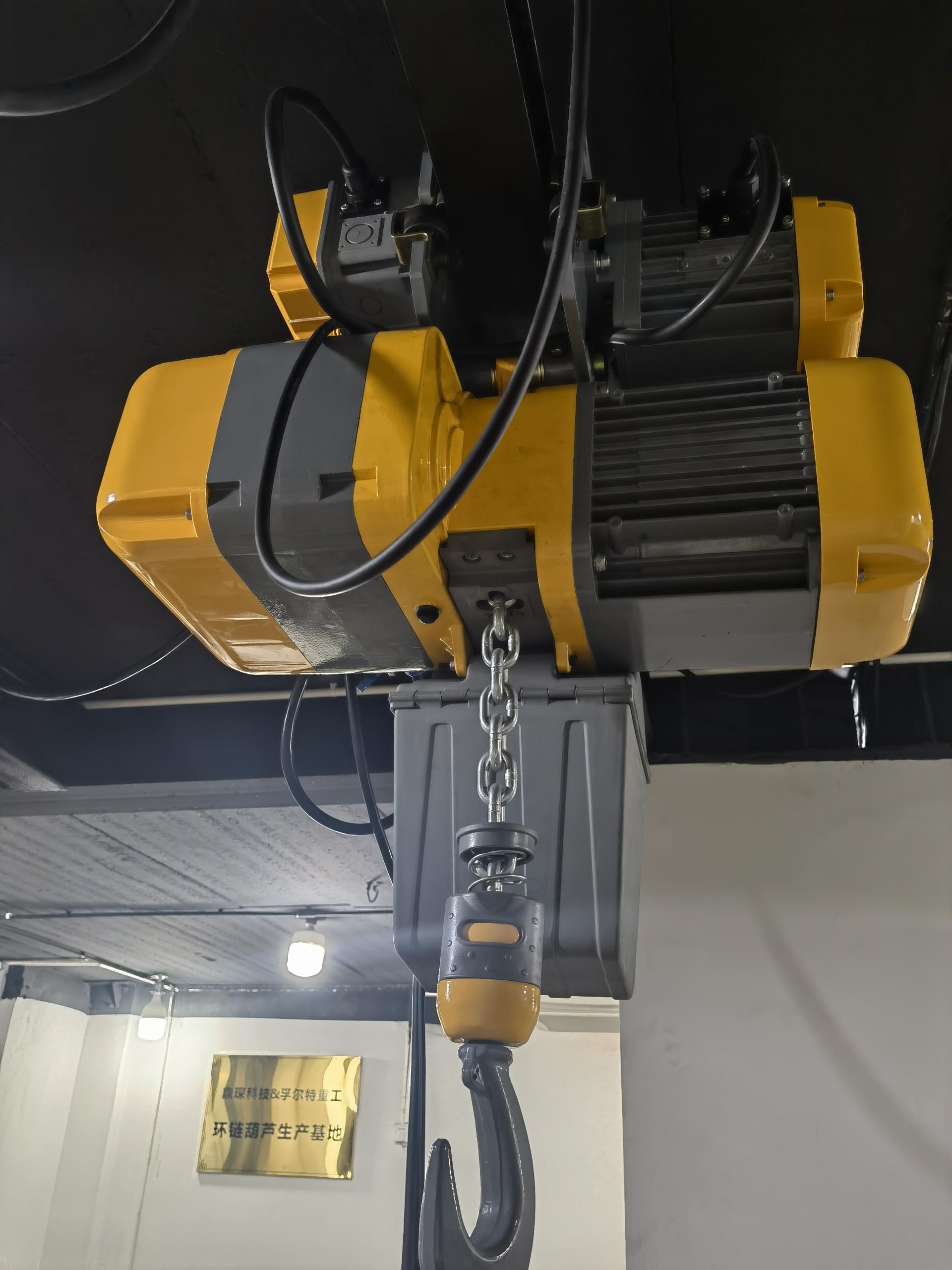

Electric Chain Hoist

Electric chain hoists usually have a unique and optimal structure, and the most suitable lifting height is 3-12 meters. If the lift is too high, it will cause the chain to malfunction. Single chain is configured for less than 5 tons, double chain is configured for more than 5 tons, and 3 chains are configured for more than 7 tons. It can shorten the distance between the machine body and the beam track, and is suitable for operations in low side buildings, especially for temporary workshops or places where the effective lifting space inside is expanded. The building is the most important part of the machine is the chain and braking system.

Technical Data

Capacity/t 1 5 7 10 12
Lifting Height m 3 3 3 3 3
Lifting Speed  m/min 6.8 6.6 6.6 5.4 2.7
Lifting

Motor

Power/kw 0.75 0.5 3 3 3
Rotation Speed(r/min) 1440 1440 1440 1440 1440
Phases 3 3 3 3 3
Voltage(v) 200-660 200-660 200-660 200-660 200-660
Frequency(Hz) 50/60 50/60 50/60 50/60 50/60
Operating

Motor

Power/Kw 0.4 0.4 0.4 0.75 0.75




Electric

Trolley Type

Rotation Speed(r/min) 1440 1440 1440 1440 1440
Operating Speed(m/min) 11/21 11/21 11/21 11/21 11/21
Phases 3 3 3 3 3
Voltage(v) 200-660 200-660 200-660 200-660 200-660
Frequency(Hz) 50/60 50/60 50/60 50/60 50/60
Load Chain Falls 1 1 1 1 1
(Electric Trolley Type) 58-153 58-153 58-153 58-153 58-153
Chain Add Weight Per Meter(Kgs) 1 1.1 2.3 2.8 5.6

Product Details

Shell:

The shell should be a lightweight aluminum alloy shell, light in weight but hard, suitable for use in harsh working environments with high heat dissipation and a fully sealed design, with an efficiency of up to 40%.

Limit switch:

The limit switch device is installed in a position where the weight can be lifted and put down to make the motor stop automatically to prevent the chain from exceeding the safety range.

24V / 36V equipment:

It is used to prevent emergencies in the event of a leaking switch.

Bang magnetic brake:

The newly designed magnetic generator, which is characterized by producing magnetism, can brake when the power is cut off, ensuring absolute safety during lifting.

Hook:

After hot forging, it is light and excellent, not easy to break, it can be rotated 360 degrees when hanging, with safety tongue to ensure safe operation

Chain:

The chain should be imported FEC G80 super heat-treated aluminum alloy chain.

Electric Chain Hoist

Advantages

  1. The capacity of electric chain hoist ranges from 500kg to 30T, hook type or electric trolley type.
  2. All electric chain hoists have CE certification.
  3. Electric chain hoist, the shell is light but hard.
  4. The G80 chain is of good quality.
  5. The hook is hot forged with perfect strength and is not easy to break.

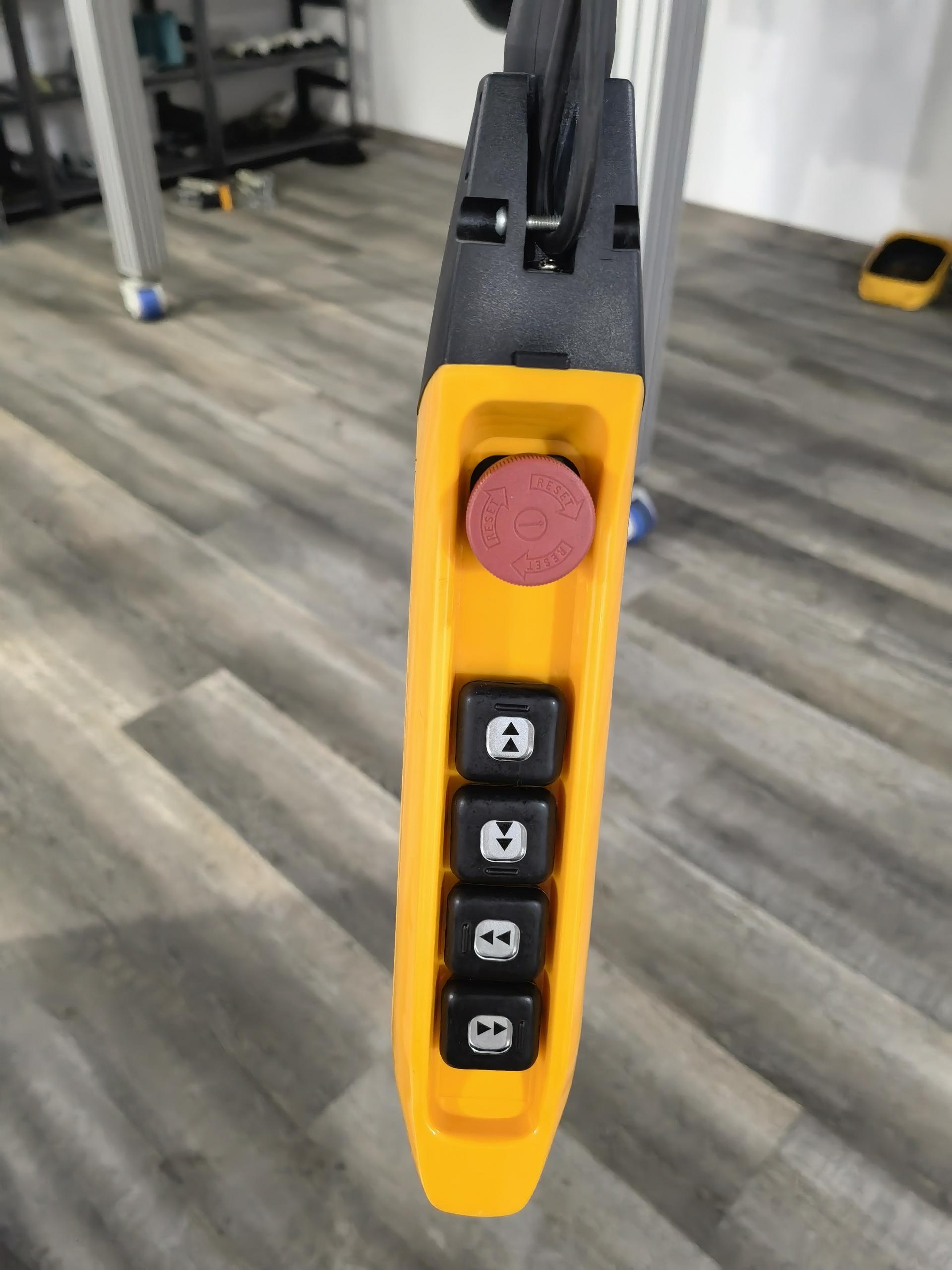

  6. Button, high-quality remote control.
  7. Electric chain hoist can be equipped with rain cover, stroke limiter and overload limiter.
  8. Choose single speed or double speed according to your needs.
  9. Three-phase electric chain hoist: voltage from 220V -690V, 50/60HZ, three-phase, we can also produce single-phase electric chain hoist.
  10. OEM is available.

Product Application

  1. Extensively used in factories, workshops, warehouses and many other occasions to hoist materials directly,
  2. Installed on the straight or curve I-steel beam of Single-girder Cranes to lift goods.
  3. It can also be used together with electric hoist double beam, gantry crane and slewing cranes to hoist different items and so on.
