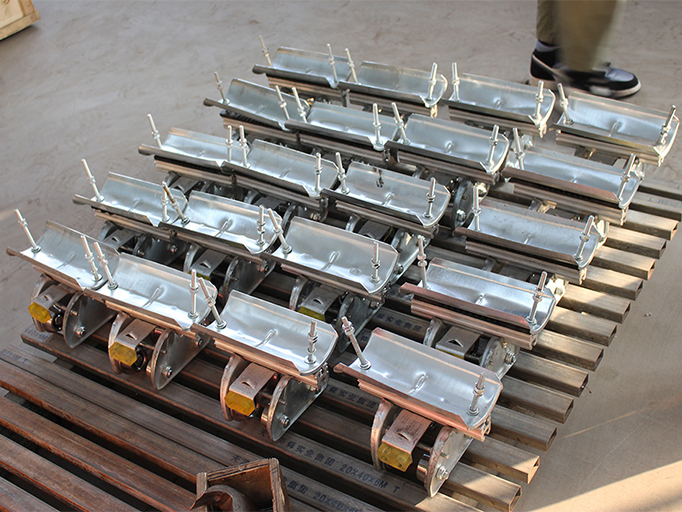

C Track Cable Trolley

Low environmental requirement;
Operation smoothly;
Low failure rate;
Both flat cable and round cable applicable;
The buffer device and cable protection device are installed.

Applications:

general bridge crane, gantry crane, electric hoist trolley, warehouse, shipyard, wharf and other lifting equipment of mobile power supply.

Description
Product Details
Parameter Table
Features

Description

C Track cable trolley is an ideal logistics power supply system, suitable for indoor and outdoor, dusty and large temperature difference. At present, cable trolley is widely used in all kinds of general bridge crane, gantry crane, electric hoist trolley, warehouse, shipyard, wharf and other lifting equipment of mobile power supply.

Product Details

Parameter Table

Wheels:	Ball Bearing, hardened and galvanized
Material:	Carrier Body: Galvanized steel
	Support Saddle: Galvanized steel or ABS
	Clamp: Neoprene
	Dowel：Seamless brass tube or galvanized steel
	Other Hardware：Galvanized steel
Travelling Speed:	＜120m/min
Working Temperature:	-40℃~125℃
Cable Load:	＜120kg
Cable Loop Depth:	≥0.3m (when travelling speed is no more than 35m/min)
	≤0.8m (when travelling speed is between 35-50m/min)
	≥0.8m (when travelling speed is between 50-80m/min)
