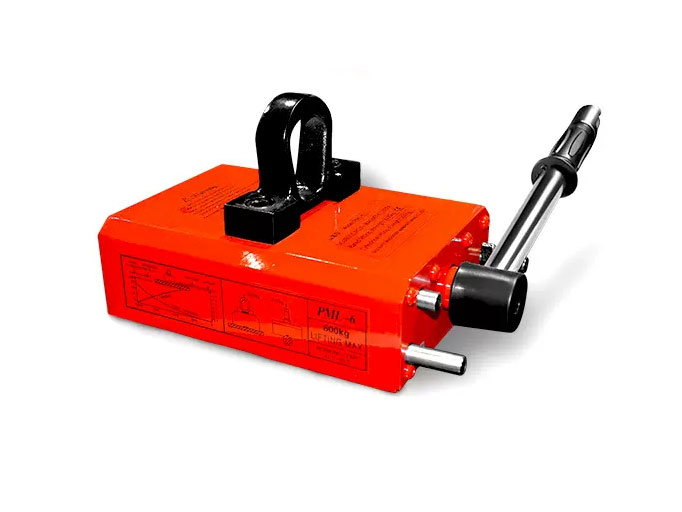

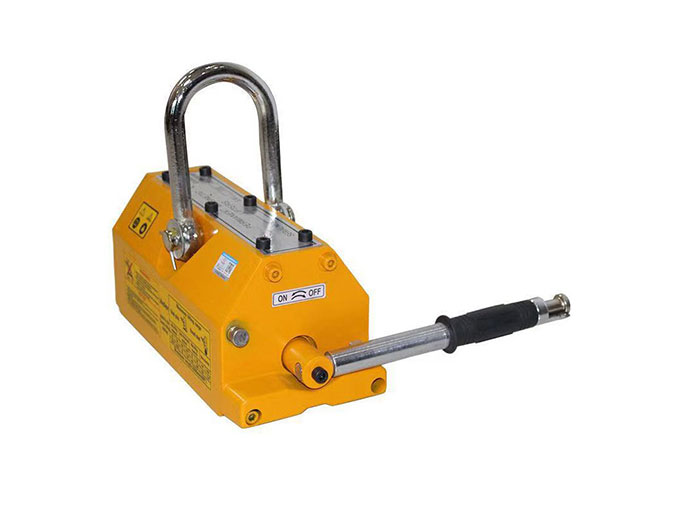

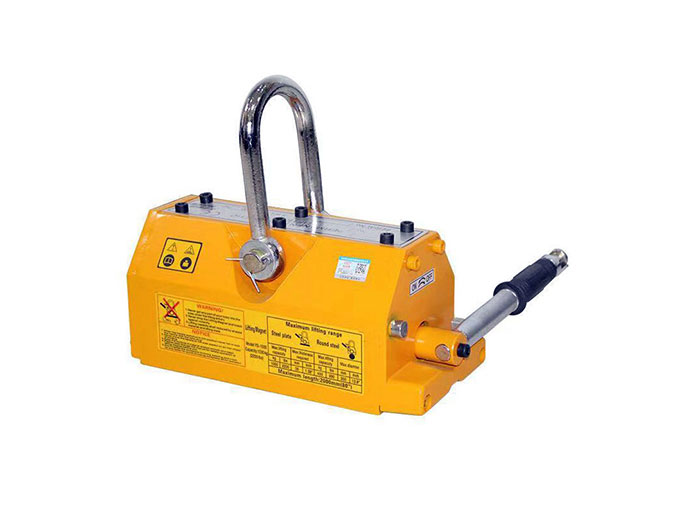

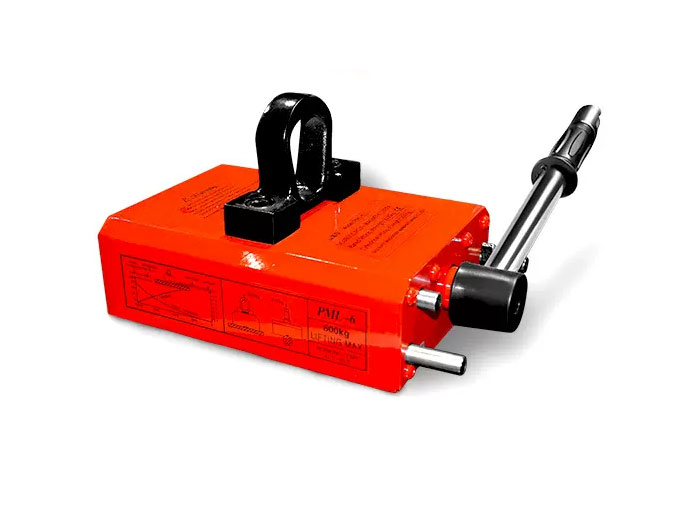

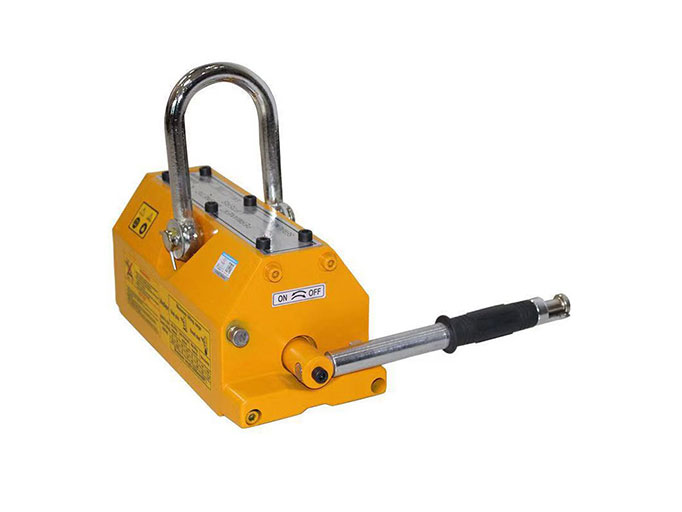

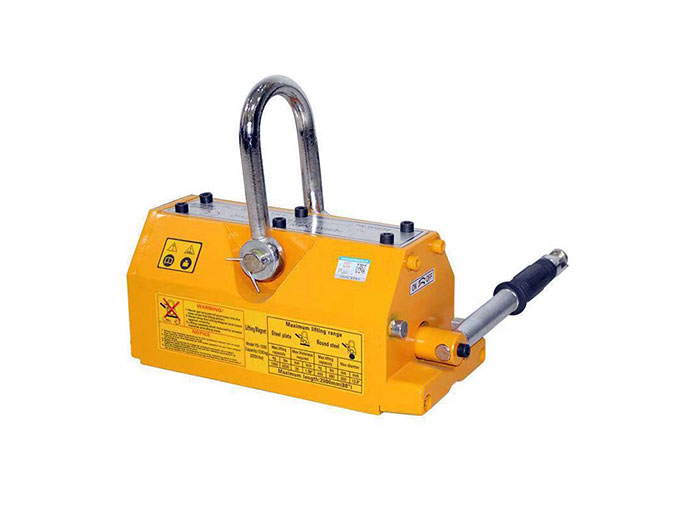

Permanent Magnetic Lifters

Permanent manual magnetic lifters have strong magnetic path produced by NdFeB magnet. It has the features of strong attraction, smaller volume, lighter weight, easy and safe to operate, long-period effort and without power supply. And It is widely used for lifting ferrous materials such as steel plates, heavy block and castings.

Applications:

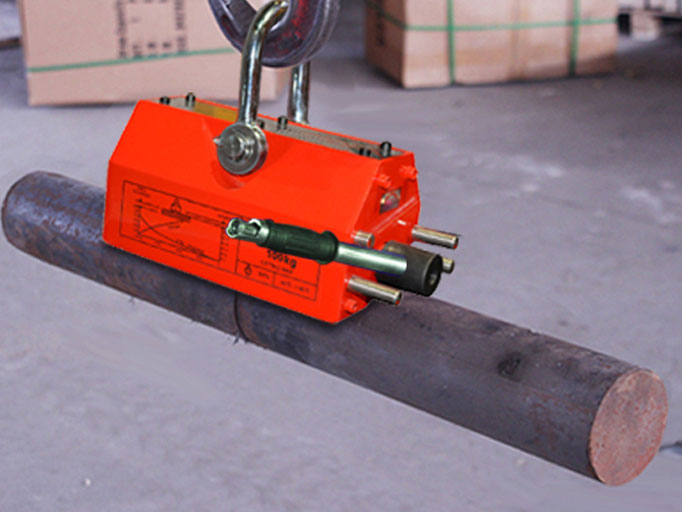

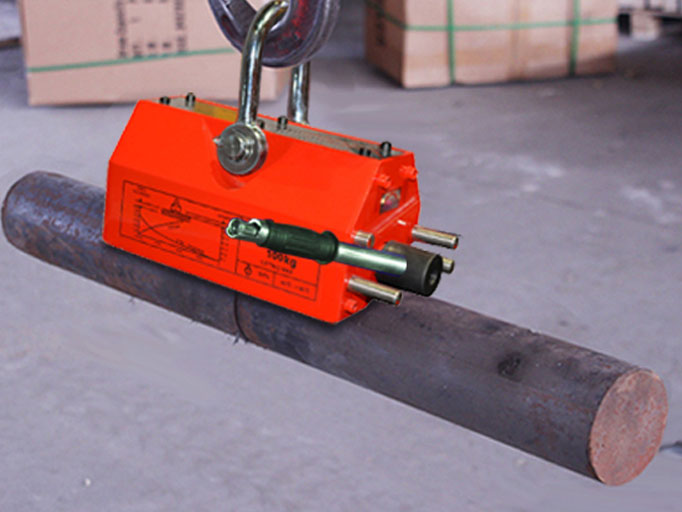

Used for lifting the steel plate and round steel, because of the light weight, ease of operation and powerful suction, magnetic lifters are widely applied in ship engineering, warehouse, transportation and machinery manufacturing.

Leave Message Chat Online

  • Description
  • Technical Data
  • Features
  • Advantages

Description

Permanent magnet lifter, also known as permanent magnetic lifter, lifting permanent magnet, etc. It has the characteristics of small size, stronger holding power, no electricity, almost zero remanence and high safety factor. The lifting capacity of permanent magnetic lifter is also determined by material, thickness, surface quality of load.

Technical Data

Model
Rated load(kg)
Maximum pull-off force(kg)
size(mm)
net weight
L
B
H
R
KYS-100
100
300
90
63
68
145
2.7
KYS-200
200
600
69
73
190
181
4.45
KYS-400
400
400
160
95
180
160
91
KYS-600
600
600
220
115
125
230
192
KYS-1000
1000
1000
260
145
145
280
34
KYS-2000
2000
2000
340
160
165
410
68
KYS-3000
3000
3000
420
185
185
510
87
KYS-5000
5000
5000
580
300
300
650
198

Features

1. Permanent magnetic lifter is widely used as lifting tools in factory terminals and warehouse.

2. Safe and reliable, easy to operate, can be used single or combined with other machines to move long and big magnetic iron steels.

3. Using high-performance permanent magnet, ensure the power and high safety.

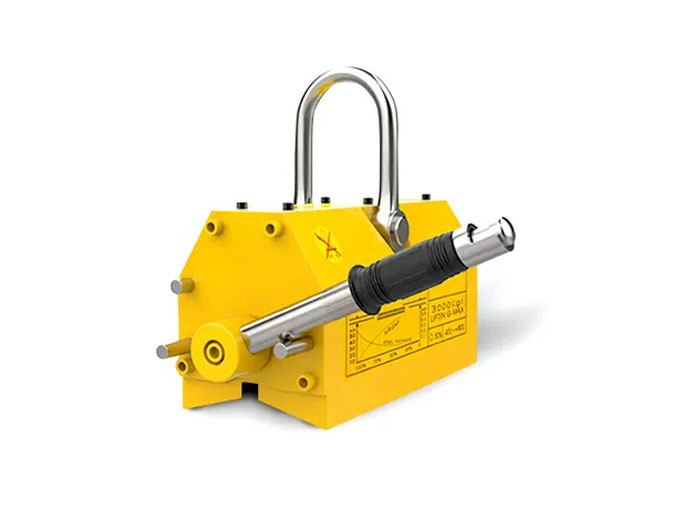

4. With a “V” style design at the bottom of lifter, can lift both round steel and steel plate.

5. Maintain constant and reliable magnetism without electricity, residual magnetism approach naught.

6. The maximum pull-off force as 3.5 times as rated lifting force which contribute to improve the working conditions of loading operation and labor productivity.

7. The lifting have high resistance to demagnetization, the lifting value will keep constant and stable.

Advantages

Kino is a professional crane equipment manufacturer, which mainly produces lifting products such as permanent magnet lifter, permanent magnet iron removers, electromagnetic magnet and electromagnetic iron removers in the past 10 years.
Products are widely used in mold, shipbuilding, bridge construction, railway,production line, logistics, machinery manufacturing, wind power, paint transportation and other special purposes.
Our main markets are Russia, South America, Middle East and Asia. Up to now, our products have been exported to Spain, Russia, USA, Singapore, India, Saudi Arabia, Malaysia, irala and other countries. In order to catch up with the international market and meet the higher requirements of customers, our company has passed ISO certification, and some products have obtained CE certificate.

Contact Kinocranes to find an optimum permanent magnet lifter for your business!
