Electric Wire Rope Hoist

CD MD wire rope electric hoist

Wire rope electric hoist is a small lifting equipment, which can be installed independently on I-beam, or it can be installed and used together with single-beam bridge crane, double-beam bridge crane, gantry crane and jib crane lifting equipment.

  • Product Type : CD MD
  • Lifting Capacity: 0.5~32t
  • Lifting Height: 6~50m
  • Lifting Speed: 8 m/ min
  • Working Class: M3,M4
  • Ambient Temperature: -25~40℃
Applications:

Factories, mines, ports, cargo storage areas and shops, and is essential for improving work efficiency and improving working conditions.

Leave Message Chat Online

  • Description
  • Technical Data
  • Features
  • Advantages
  • Product Application

Description

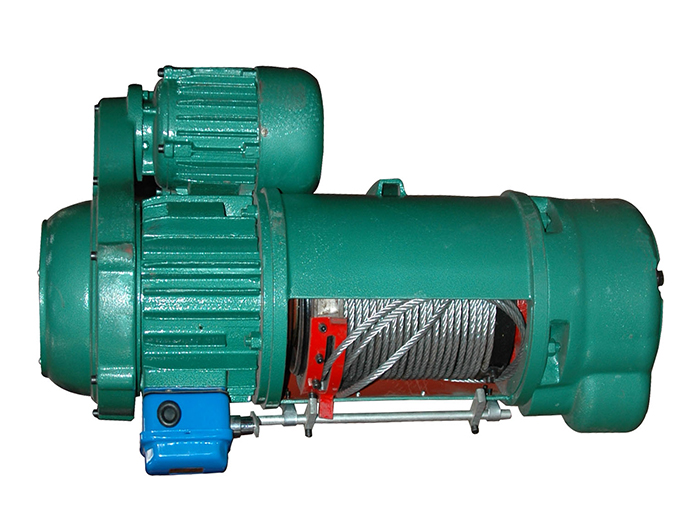

Wire Rope Hoist

Wire rope electric hoist mainly includes CD type, MD type and HC type wire rope electric hoist. Generally, the working speed of CD1 type electric wire rope hoist is single speed 8 m/min; the working speed of MD1 type electric wire rope hoist is double speed 0.8/8 m/min. The lifting capacity of CD1 and MD1 electric wire rope hoists is 0.25 to 16 tons. CD and MD wire rope electric hoist is a kind of light lifting equipment.

HC type wire rope electric hoist is a heavy lifting equipment. The working speed of HC type electric hoist is single speed, and the lifting capacity of hoist ranges from 16 tons to 32 tons.

Technical Data

Model CD1-0.5 CD1-1 CD1-2 CD1-3 CD1-5 CD1-10
Capacity(t) 0.5 1 2 3 5 10
Standard lift(m) 6-12 6-30 6-30 6-30 6-30 9-30
Lifting speed(m/min) 88/0.8 88/0.8 88/0.8 88/0.8 88/0.8 77/0.7
Running speed(m/min) 20(30) 20(30) 20(30) 20(30) 20(30) 20(30)
Wire rope type 6×37-4.8-180 6×37-7.4-180 6×37-11-155 6×37-13-170 6×37-15-200 6×37-17.5-200
I Beam track type 16-28b 16-28b 20a-32c 20a-32c 25a-63c 28a-63c
Motor power/kw 0.8 1.5 3.0 4.5 7.5 13
Motor R.P.M(r/min) 1380 1380 1380 1380 1380 1380
Voltage(V) 380 380 380 380 380 380
Frequency(Hz) 50 50 50 50 50 50
Phase 3 3 3 3 3 3

Features

CD MD wire rope electric hoist is a small lifting equipment that can be installed on a single girder bridge crane. Gantry cranes can meet normal applications only as a normal speed. It is widely used in factories, mines, ports, cargo storage areas and shops, and is essential for improving work efficiency and improving working conditions.

  1. Reducer

It adopts a three-stage locking motor gear transmission structure; the gears and gear shafts are made of alloy steel after heat treatment, and the shell and cover are made of high-quality cast iron, with accurate assembly and good sealing. The reducer operates independently for easy loading and unloading.

  1. Control box

It has a protection device for up and down trip circuit breakers, which can cut off the main circuit in an emergency to ensure the safe operation of the electrical block, long service life, and safe operation of electrical components.

  1. Wire rope

Use GB1102-74 (6 * 37 + 1) hoisting steel wire rope, long service life.

  1. Cone motor

The hoisting motor uses a cone motor with a large starting torque to brake the induction motor. No additional lightning arrester is needed. The load continuity factor of the motor is 25%; the motor uses B and F insulation, and the protection level is isIP44 / IP54 .

  1. Push button switch

It is manual operation, easy to operate, there are two ways of rope operation and wireless remote control.

  1. Gear

It adopts Japanese technology, innovatively adopts high-speed synchronous gear symmetrical arrangement, and adopts international standard gear steel. Compared with ordinary gears, it is more wear-resistant, more stable and labor-saving.

  1. Hook

It is made of high-strength, high-safety high-quality alloy steel; with a new design, the weight will never be lost.

Advantages

  1. The operation is safe and reliable.
  2. Two-speed adjustment makes the crane run smoothly.
  3. Low noise, soft start and stop.
  4. Standardized crane configuration of the whole machine makes the whole machine more stable.
  5. Low maintenance cost and long service life.
  6. The wheel pressure is small and the volume is small, which can reduce the investment in the preliminary project such as the factory building.
  7. Wireless infrared detector
  8. External hoist, drive unit, rain cover of electric cabinet.
  9. Warning indicator light: flashing indicator light and warning sound.
