Kinocranes crane supplier

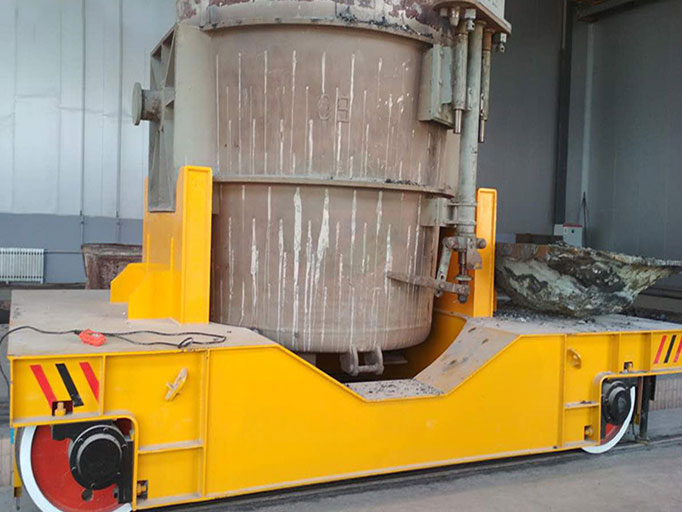

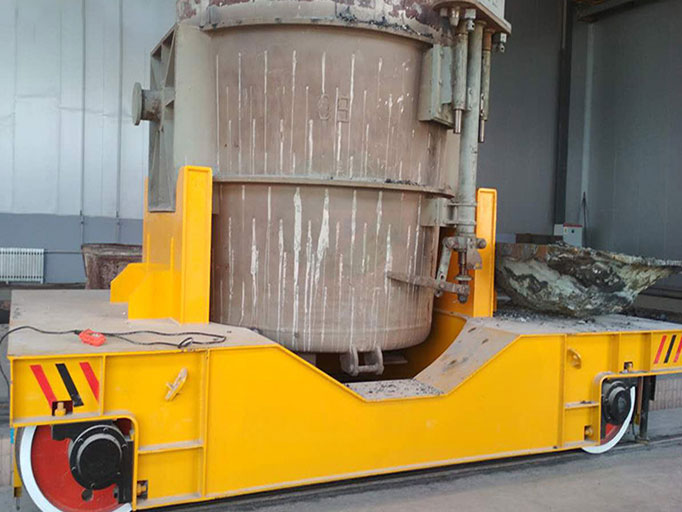

Rail transfer cart

Transfer trolley

  • Load Capacity: 2t~150t
  • Table size: can be customized
  • Wheel base: 1200~7000mm
  • Rail inner gauge: 1200~2000mm
  • Running speed: 0~25m/min
  • Running distance: 50~80m
  • Control mode: button / remote control
Applications:

Manufacturing workshop, metallurgy, petroleum, petrochemicals, ports, railway, civil aviation,power station, food industry, paper making, building material, warehouses and other material handling application.

Leave Message Chat Online

  • Description
  • Parameter
  • Features
  • Advantages
  • Application

Description

Rail transfer cart is a 36V low-voltage rail powered electric flat cart, which is powered by the rail sliding contact wire. The rail is both the walking track of the wheel and the feed track.
It is has 36V single-phase power supply and three-phase power supply. Ground step-down transformer control cabinet will step down single-phase (three-phase) AC 380V to single-phase (three-phase) 36V, through the sliding contact wire feed the flat cart, and then through the on-board booster transformer to step up single-phase (three-phase) AC 380V.
Because the walking track also serves as the feed track, the insulation between the rails, wheels and the cart body is required. Special insulation treatment should be done when the rail is laid.

Parameter

Model
KN-2t
KN-20t
KN-50t
KN-100t
KN-150t
Rated Load(t)
2
20
50
100
150
Table Size(mm)
Length(L)
2000
4000
5500
6500
10000
Width(W)
1500
2200
2500
2800
3000
Heigth(H)
450
550
650
850
1200
Wheel Base(mm)
1200
2800
4200
4900
7000
Rail Inner Gauge(mm)
1200
1435
1435
2000
2000
Wheel Diameter(mm)
270
350
500
600
600
Wheel Quantity
4
4
4
4
8
Ground Clearance(mm)
50
50
50
75
75
Running Speed(min)
0-25
0-20
0-20
0-20
0-18
Motor Power(kw)
0.8
2.5
5.5
11
15
Transformer Power(KVA)
3
6.8
10
30
30
Transformer Quanity
1
1
1
1
1
Running Distance(m)
70
70
50
50
50
Max Wheel Load(KN)
14.4
77.7
174
343.8
265.2
Reference Weight(t)
2.8
5.9
8
14.6
26.8
Recommended Rail Model
P15
P24
P43
QU100
QU100

Features

  • Safe and reliable due to no cable is required;
  • No impact on cross transportation;
  • Easy to achieve remote control and automation;
  • A great convenience to the factory transportation layout;

Advantages

  • Excellent safety, high efficiency
  • Smooth and flexible operation
  • Space-saving
  • Reduce the uses of forklifts or cranes
  • High maneuverability
  • Easy to control

Application

Manufacturing workshop, metallurgy, petroleum, petrochemicals, ports, railway, civil aviation, power station, food industry, paper making, building material, warehouses and other material handling application.
