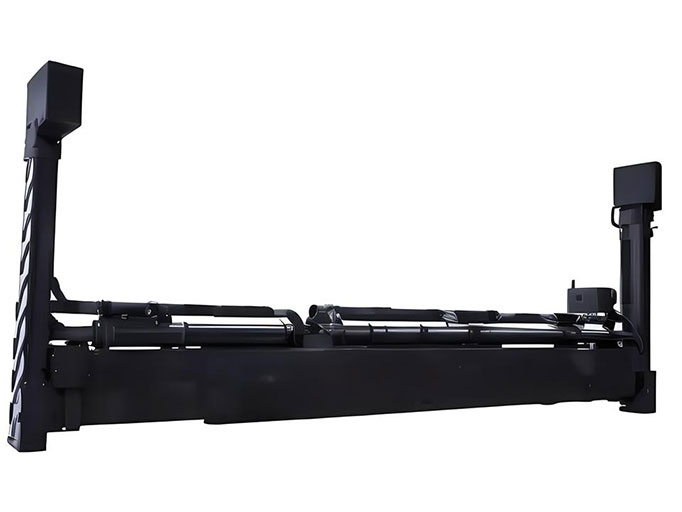

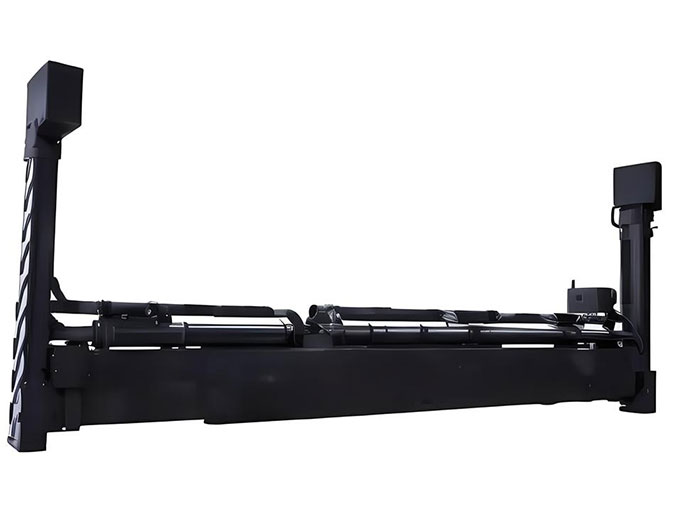

Empty Container Handler Spreader

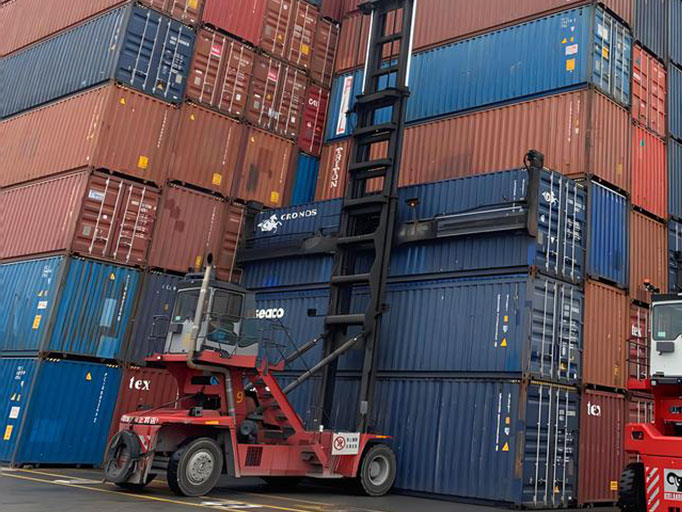

APPLICATION: Empty Container Handler, Reach Stacker
ISO CONTAINER SIZES: 1 X 20FT Empty Container, 1 X 40FT Empty Container
Rated Load: ≤8 tons
Self-weight: 3.5 tons
Side Shift: ± 600 mm
CE CERTIFICATION: Include

Applications:

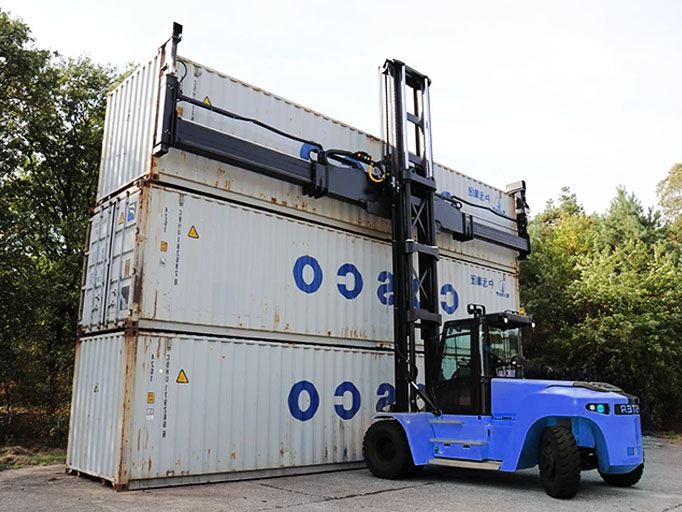

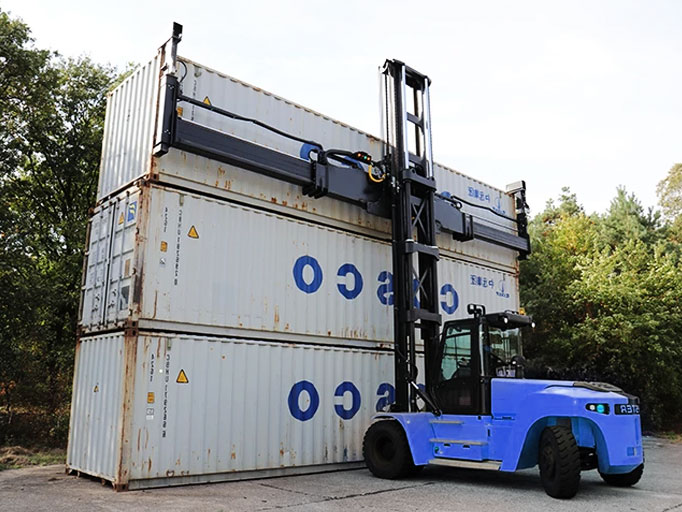

Designed to efficiently handle single 20' and 40' empty containers, the KENAN HLS40ft is ideal for masted lift trucks.

Description
Technical Data
Features

Description

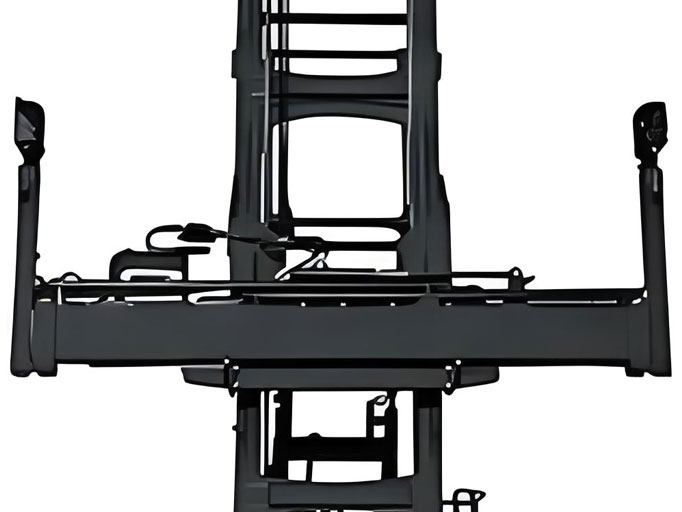

The KENAN HLS40ft is a versatile side-lift spreader designed for efficiently handling single 20′ and 40′ empty containers with masted lift trucks. Featuring a single-beam structure, this spreader boasts simplicity, easy maintenance, and lightweight design. Mechanical and electrical interlocks secure the swivel pin, providing a 250mm flexible floating function for easy container alignment. With lower vertical and shorter horizontal dimensions than the container length, this spreader facilitates convenient container handling.

Technical Data

Model	HLS40ft
Rated load	≤8tons
Self weight	3.5 tons
Transfer pin type	ISO floating transfer pin, hydraulic cylinder drive
Telescopic form	hydraulic cylinder telescopic drive
Side shift mechanism	hydraulic cylinder telescopic drive
Power supply voltage/frequency	AC 380(3P)/50Hz
Allowable eccentric load	±10%
Vertical floating stroke of resale box	200mm
Opening and closing time	~1s
Telescopic time (20ft~40ft)	~25s
Side shift ±600	~15s
Control voltage	AC 220V (optional)
Protection level	IP55
Ambient temperature	-20°～+60°
