Outdoor Campus AGV

Description
Type of Outdoor Heavy Duty AGV
Technical data
Features
Applications

Description

The Outdoor Campus AGV (Heavy-Duty Unmanned AGV) is an autonomous transport platform engineered for the most demanding intra-factory and campus logistics—moving payloads from 5 to 200 tonnes across concrete floors, steel surfaces, and mixed indoor-outdoor routes without human intervention. Combining laser SLAM, GNSS satellite and inertial navigation in a single triple-fusion system, every vehicle self-maps its environment, avoids obstacles and docks to ±30 mm accuracy without any floor modification, guide wire or reflector installation. Power comes from a lithium iron phosphate battery pack rated for a full 6-hour shift, with a recharge time under 3 hours. Built to IP55, rated from −20 °C to +45 °C and CE certified, the range operates reliably in foundry dust, coastal humidity and sub-zero outdoor yards alike.

Type of Outdoor Heavy Duty AGV

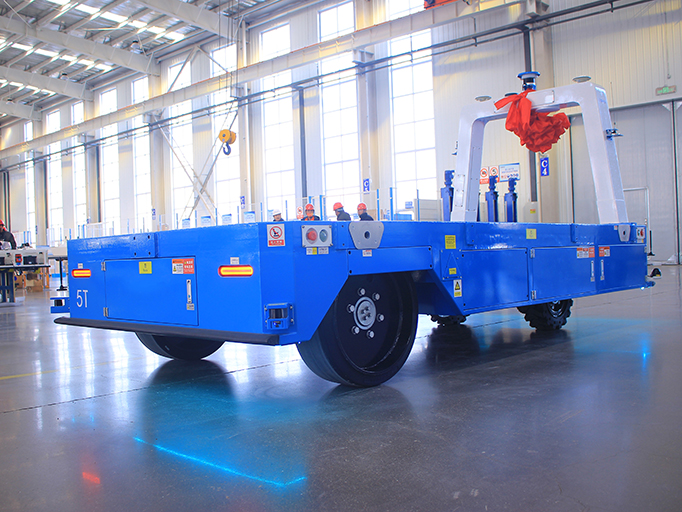

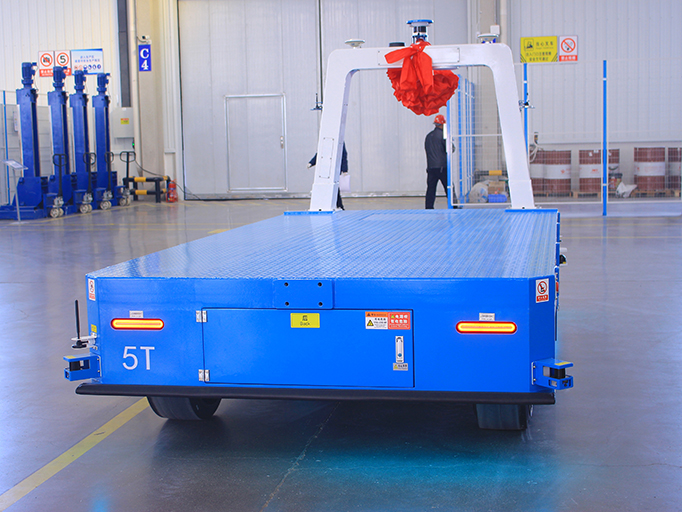

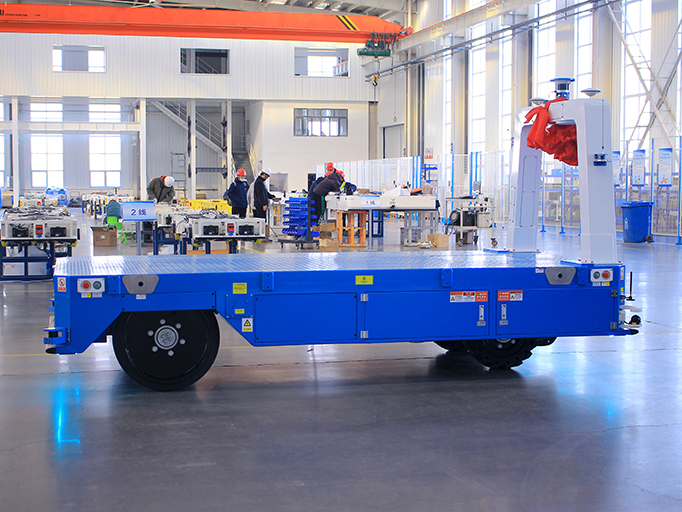

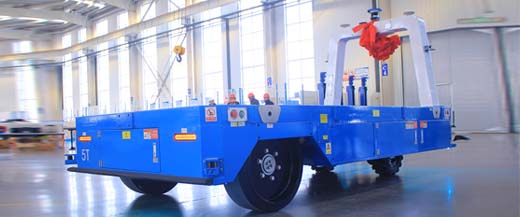

5–20 ton Standard-Drive Heavy AGV

Single-front-drive platform with rear axle. Compact and economical for standard factory logistics—pallets, ton bags, and general heavy components in environments with defined corridors and adequate turning space.

⚙️Drive: Single front drive unit + rear axle · Dual-wheel differential

🔄Motion: Forward/backward, arc left, arc right

🔋Battery: DC 96V (5T/10T) · DC 614V (20T) · LiFePO₄

📦Application: Pallet & ton-bag transport in standard factory corridors

📐 Footprint: L 4,120–9,000 mm × W 2,000–2,800 mm

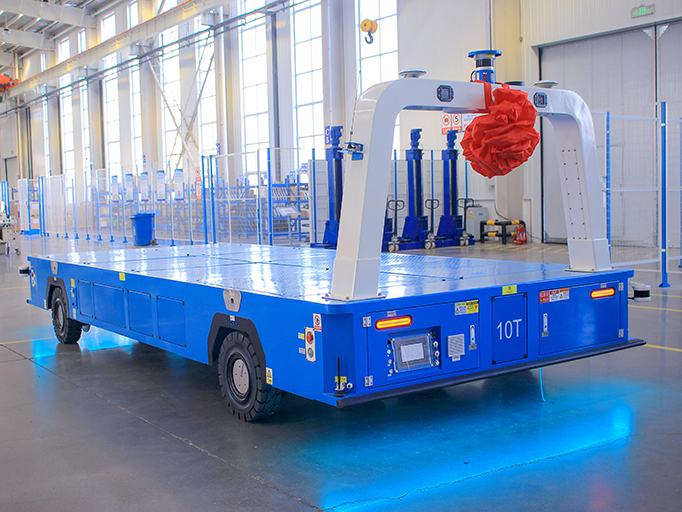

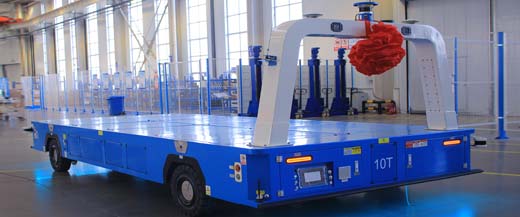

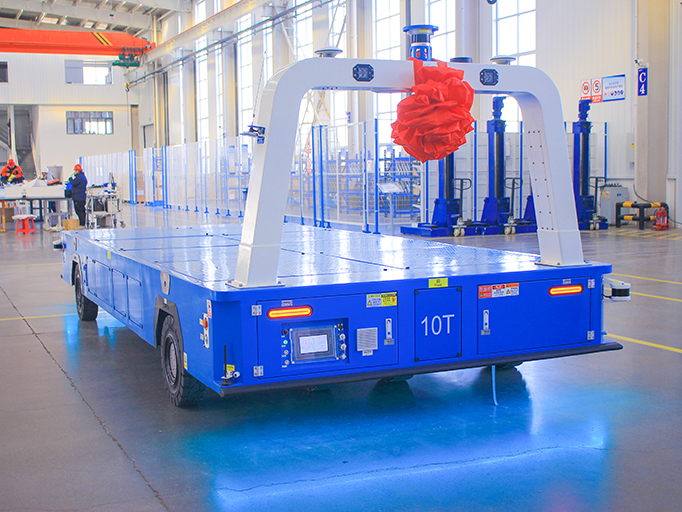

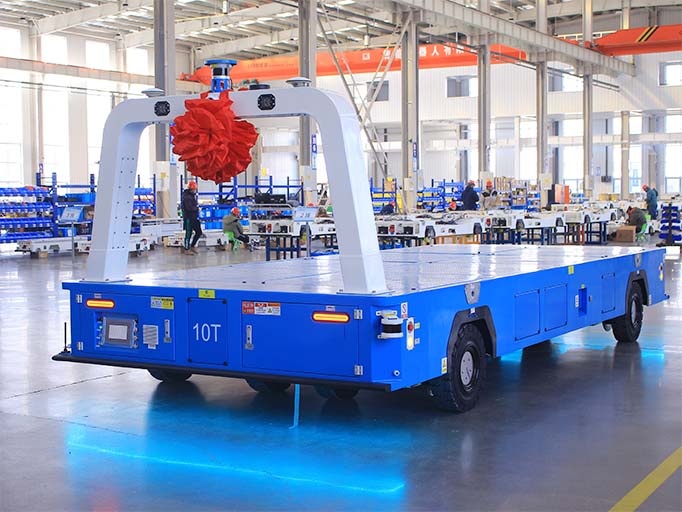

10–200 ton Omnidirectional Heavy AGV

Full omnidirectional platform with 4/8/12-drive wheel sets. Lateral sliding, in-situ rotation and arc movement in any direction—built for high-frequency cross-aisle and narrow-space factory logistics at scale.

🔀Drive: 4-drive full omnidirectional (10T/20T) · 8-drive (65T/120T) · 12-drive (200T)

🔄 Motion: Forward/backward, arc turn, lateral slide, in-situ rotation

🔋Battery: DC 96V (10T) · DC 614V (20T–200T) · LiFePO₄

📦Application: Pallet, ton-bag, container, steel coil, large-part transport

📐Footprint: L 6,600–14,500 mm × W 2,500–3,400 mm

💡

How to choose two type of heavy duty AGV

Choose Standard-Drive Heavy AGV when your routes are fixed, corridors are wide enough for arc turns, and payloads are 5–20T. It is the cost-effective solution for standard pallet and ton-bag logistics.
Choose the Omnidirectional Heavy AGV when you need lateral movement to park in tight spaces, in-situ rotation in narrow aisles, payloads above 20T, or applications such as container handling, steel coil transport or large-part logistics where omnidirectional control is essential.

Technical data

Navigation System	Laser navigation + GNSS (BeiDou) + Inertial navigation (triple-fusion)
Navigation Accuracy	±30 mm
Positioning Accuracy	±30 mm (standard) · ±10 mm with magnetic track option (select LYQL models)
Floor Surface	Concrete · Self-levelling · Steel plate · Asphalt
Grade Capability	≤ 10% (5.8°)
IP Rating	IP55
Operating Temperature	−20°C to +45°C · Humidity 0–95% RH (non-condensing)
Storage Temperature	0°C to +40°C · Humidity 0–95% RH (non-condensing)
Battery Type	Lithium iron phosphate (LiFePO₄)
Battery Runtime	6 hours (3 hrs empty + 3 hrs loaded)
Charge Time	≤ 3 hours (full charge)
Braking System	Electronic reverse braking
Parking System	Hydraulic parking brake
Tyre Material	Solid rubber (no inflation required)
Communication	Wi-Fi 5 (2.4GHz / 5.8GHz) standard · Wi-Fi 6 or 5G optional (SIM card supplied by customer)
IP Protocol	Fixed IP required
Safety Features	Laser obstacle avoidance · 3D safety sensing · Emergency stop (multi-point) · Audio/visual alarm
Fleet Management	LONYU AGVS Cloud — real-time monitoring · fleet dispatch · task management · third-party WMS/MES API
Certifications	CE · IP55 · ISO 9001:2015

For full specs, please download the datasheet.

Features

Agile Motion Platform

Optimised chassis and steering geometry deliver small turning radius and smooth high-load travel. The omnidirectional heavy AGV adds full omnidirectional capability — lateral slide and in-situ rotation for tight-aisle factory floors.

Rapid Field Deployment

GNSS + Laser SLAM dual navigation adapts to any existing facility layout. No floor modification, no rails, no reflectors. Typical site commissioning time is under 3 days.

High-Efficiency Energy System

Large-capacity LiFePO₄ battery with intelligent BMS. 6-hour full-shift runtime. Fast charge in under 3 hours. Optional auto-docking charger for lights-out overnight operation (select KNQL models).

Digital Logistics Integration

Real-time twin monitoring via KNCRANES AGVS Cloud. Third-party WMS/MES/ERP integration via open API. Supports elevator, dock door, and curtain synchronization for multi-floor or multi-zone operations.

Intelligent Fleet Management

Multi-vehicle coordination with automatic task dispatching, priority queuing and conflict-free path planning. The AGVS platform handles fleets of 1 to 500+ vehicles from a single dashboard.

Predictive Analytics & Safety

Historical data analysis, equipment health scoring and OEE calculation. Laser obstacle avoidance with full 3D sensing. Multi-point emergency stop. Acoustic and visual alarm suite compliant with ISO 3691-4.

Applications

Both series are proven across heavy manufacturing, energy and logistics. Select your scenario to see the recommended model.

⚡

Energy Storage

ESS cabinet and battery module logistics inside new-energy factories. Frequent cross-aisle movement, narrow bay widths.

KNJL-10T
KNQL-10T
KNQL-20T

🌬️

Wind Power

Sub-assembly and component transport in wind turbine factories. Mixed indoor/outdoor routes, large platform required.

KNJL-20T
KNQL-20T
KNQL-65T

📦

Container Handling

20ft and 40ft container inter-zone transport in industrial parks and port logistics yards.

KNQL-65T

🔩

Steel Coil Transport

Heavy steel coil logistics in mills and warehouses. Flat-tread tyres and active hydraulic suspension for precise load stability.

KNQL-120T

🏗️

Large-Part & Machinery

Over-dimensional components, heavy press tooling, mining equipment and large fabrications up to 200T.

KNJL-20T
KNQL-120T
KNQL-200T

🏭

General Factory Logistics

Pallet and ton-bag transport between production zones, warehouse and dispatch. Standard corridors, defined routes.

KNJL-5T
KNJL-10T
KNQL-10T

FAQ

Does installation require floor modification?
+

No. The primary laser SLAM + GNSS navigation system works with any flat factory floor without rails, guide wires or floor tape. Small QR magnetic stickers are optionally placed only at precision docking stations. Typical site commissioning takes 2–5 days after delivery.

Can the AGV operate in cold or outdoor environments?
+

Yes. The operating temperature range is −20°C to +45°C with 0–95% humidity (non-condensing). The IP55 protection grade seals the electrical and drive systems against water jets and heavy dust. Both series can operate in mixed indoor/outdoor environments using combined GNSS + laser navigation for outdoor routing.

Can multiple AGVs be coordinated as a fleet?
+

Yes. All models connect to the KINO AGVS Cloud fleet management platform, which handles multi-vehicle task dispatch, path planning, conflict avoidance and real-time monitoring. The system integrates with third-party WMS, MES and ERP systems via open API. Fleet size scales from 1 to 500+ vehicles on a single platform

Are these AGVs CE certified for export?
+

Yes. All KINO heavy-duty AGVs are CE certified. UL (North America) and EAC (Russia/CIS) certifications are also available on request. KINO products are currently deployed in 15+ countries. Contact Kinocranes for export compliance documentation specific to your destination.

What is the battery runtime and charging time?
+

Both series provide 6 hours of combined runtime (3 hours empty + 3 hours at full rated load) on a single charge. Full recharge takes ≤ 3 hours. Select QL models (KNQL-10T and KNQL-20T) support optional automatic docking chargers for opportunity charging during idle periods, enabling 24-hour continuous operation.
