Boom Man Lift Platform

Rated capacity: 200kg

Working height: 24m

Power supply: DC/AC/Petrol/Diesel

Applications:

mainly used for construction machinery and equipment for construction, bridge construction, shipbuilding, airports, mines, ports, communications and power facilities, and outdoor advertising.

Leave Message Chat Online

  • Description
  • Technical Data
  • Features
  • Advantage

Description

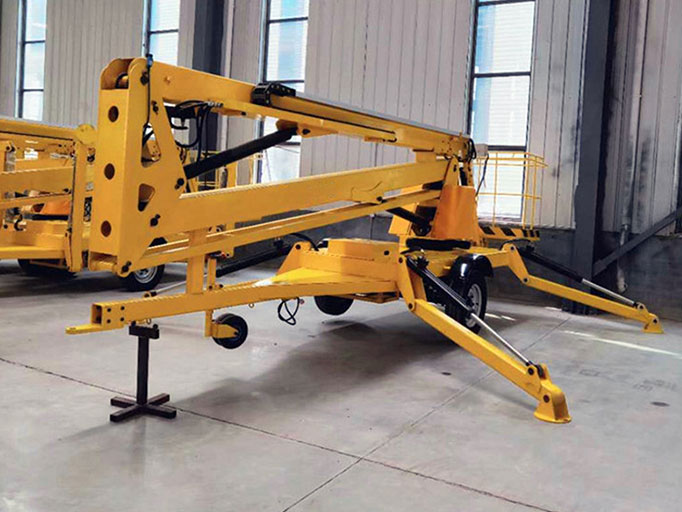

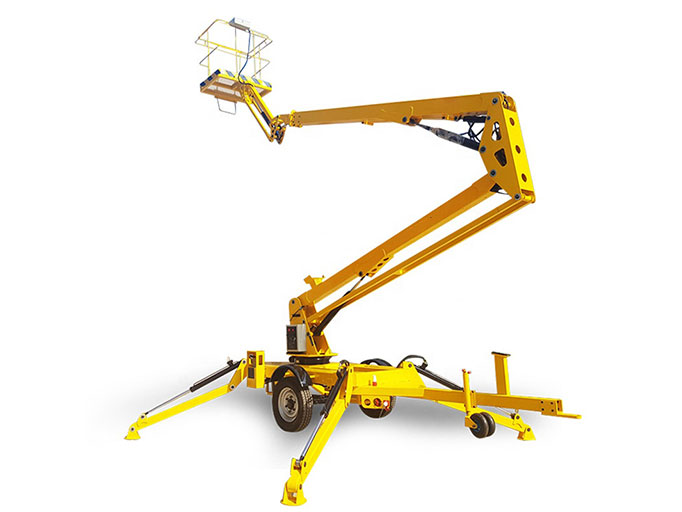

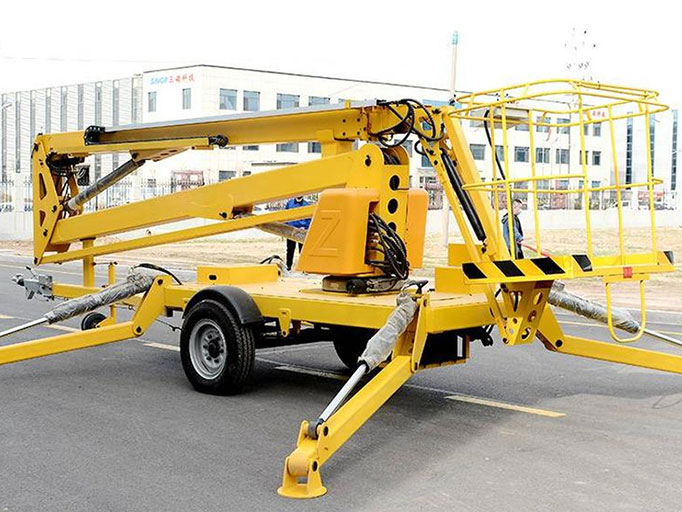

Boom man lift platform (also known as towable boom lift)has a compact structure, adopts new high-quality steel, high strength, light weight. It equipped with automatic hydraulic support feet, and the operation is simple. The work table can be raised and extended horizontally, easy to reach across obstacles. This lift is ideal for aerial work.

Towable Boom Lift is suitable for various rugged terrains in the field, and has a wide range of space operations. It is mainly used for construction machinery and equipment for construction, bridge construction, shipbuilding, airports, mines, ports, communications and power facilities, and outdoor advertising.

Technical Data

Model
Table size(m)
Overall size(m)
Platform height(m)
Weight((kg)
Maximum working radius(m)
Self weight(kg)
TGZ-8
1.2*0.8
5.2*1.5*1.9
8
200
4.5
1500
TGZ-10
1.2*0.8
5.4*1.665*1.9
10
200
5
1700
TGZ-12
1.2*0.8
6.4*1.665*1.9
12
200
6
2000
TGZ-14
1.2*0.8
6.2*1.73*2.1
14
200
8.5
2350
TGZ-16
1.2*0.8
7*1.73*2.2
16
200
9
2600
TGZ-18
1.2*0.8
7.1*1.85*2.26
18
200
10
4300
TGZ-20
1.2*0.8
7.7*1.85*2.26
19.8
200
12
4450

Features

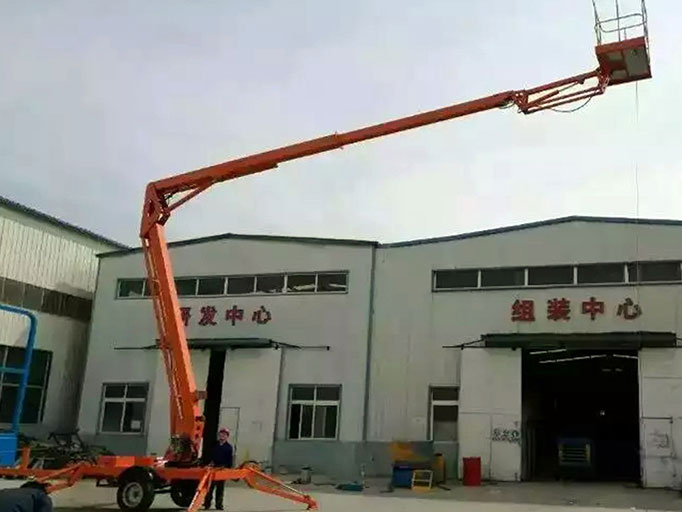

According to the working height, the boom structure and working radius are also different. The boom structure of 8-12 meters is divided into large arms and small arms, and the maximum working radius can be up to 6 meters. The suspender above 14 meters is divided into large suspender, medium suspender and small suspender. The middle boom is a telescopic boom, which greatly increases the working radius, and the maximum operating radius can reach 12 meters.

Advantage

  • The turntable can rotate 360 degrees. The hydraulic platform rotates horizontally and the arm swings up and down
  • The height of the storage is 2 meters, so it is easy to pass through the door.
  • Compact rotation radius and width allow you to work in crowded places
  • Platform load restrictions improve security
  • Two workers with tools can work at the same time.
  • Single handle smoothing scale controls all actions
  • It can be hung on the car and synchronized with the car, so it is suitable for outdoor high-altitude work.
  • Fast lifting speed, zero swing at the end, suitable for working in places with limited space
  • It is sturdy, reliable and easy to maintain.
