Portable Gantry Crane

Fixed gantry crane, Adjusted gantry crane, Manual gantry crane, Electric gantry crane

  • Capacity: 0.5-10 tons
  • Lift height: 1-10m
  • Span: 2-12m
  • Lifting mechanism: Chain hoist
  • Protection class: IP55
  • Working temperature: Normal temperature

Warehouse, workshop, auto repair shops, vessels, laboratory for light weight material handling and limited working space.

Leave Message Chat Online

  • Description
  • Technical Data
  • Features
  • Design
  • Custom Crane

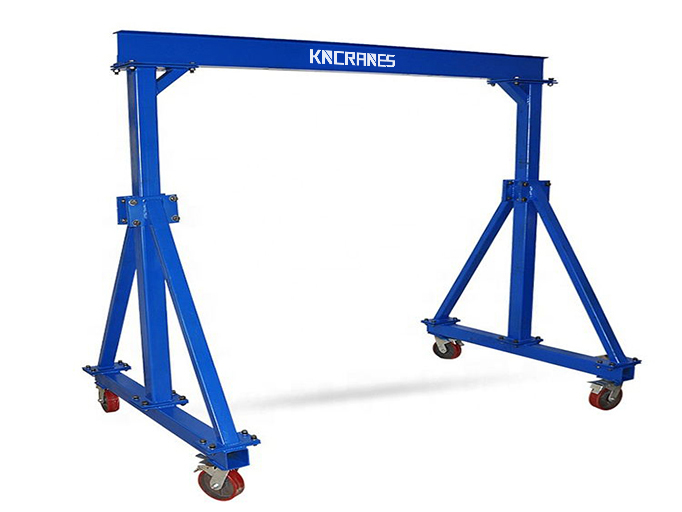

Mini mobile lifting small portable gantry crane is manufactured for lifting equipment, loading and unloading of the warehouse, maintaining heavy-duty equipment, and transporting materials, applicable for automotive, trucking, manufacturing, loading docks, aircraft, marine, warehouses or maintenance.

The best advantage of the crane is Omni-directional movability, fast assembly, small volume, and can be moved to another area only with a minibar. Capacity is 0.5t-10t, span is 12m. The brake-bearing universal wheel can move on the ground, be used together with an electric hoist, chain block, or monorail trolley, realizing crane mechanization, which can reduce human power, production costs, and improve work efficiency.

Kinocranes portable gantry cranes are easy to move in your factory area, assemble and disassemble for relocation. To exactly fit your requirements, we also offer our portable gantry cranes in custom sizes.

mobile gantry crane application

Kinocranes light type mobile steel gantry crane is suitable for different light-duty work applications such as warehouses, workshops, auto repair shops, vessels, laboratories for lightweight material handling, and limited working space.

Technical Data

Item mobile gantry crane
Capacity 0.5 1 2 3 5 10
Span 2-12m (Customized)
Height 1-10m (Customized)
Wheel 4 sets
Lifting equipment Manual/Electric wire rope or chain hoist
Power 380V 50HZ 3P or customized


  • Select electric trolley assembly can realize trackless weight-bearing and greatly improve the work efficiency, steerable.
  • Easy operation, wireless controller available
  • Move under load, smooth starting and stopping
  • Every steel tube is detachable, disassembly and assembly are easy
  • Easy operation control by pendent controller with push buttons or wireless controller, control the gantry moved front and back, the hoist traveling left and right, lift up and down.
  • Portable design allows for relocation for use in more than one facility or work area.


  1. Alignment of precision parts and welded components. Easy operation, stable performance and long service life.
  2. We only use standard quality I-beams, and product quality is guaranteed.
  3. All nuts and bolts are made of 8.8 grade high strength steel with corrosion resistant lacquer to enhance product life.

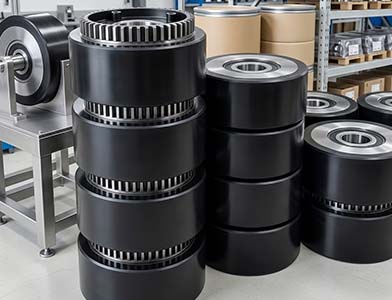

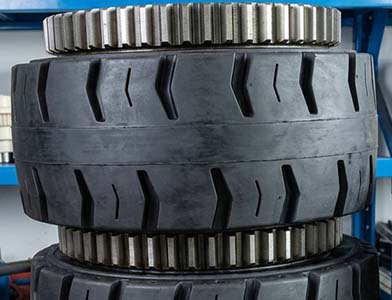

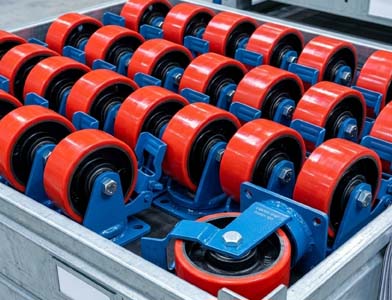

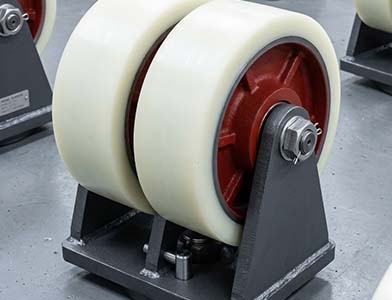

  4. All of portrable gantry cranes use heavy-duty casters for long product life while providing smooth rolling performance. Even on rough floors. The same does not affect the use of the floor.

Various Portable Gantry Crane

Image No. Models Capacitie Spans Heights
pt1 fixed gantry crane PT1 Fixed Gantry Crane
Fixed height and span, manually movable, easy to install and dismantle.
500kg-20ton 10m 10m
PT2-1 Adjustable Height Gantry Crane PT2-1 Adjustable Height Gantry Crane
Adjustable in different levels, manually movable, easy to install and dismantle.
500kg-10ton 12m 12m
T2-2 Adjustable Height Gantry Crane PT2-2 Adjustable Height Gantry Crane
Adjustable height as needed, manually movable, easy to install and dismantle.
500kg-10ton 10m 12m
PT2-3 Motorized Gantry Crane PT2-3 Portable Gantry Crane
Quick assembly, height adjustable with manual push rods, lightweight.
500kg-1ton 5m 5m
PT2-4 Motorized Gantry Crane PT2-4 Motorized Gantry Crane
Electrically operated lifting, adjustable to any height, capable of lifting heavy loads.
500kg-20ton 12m 12m
PT3 Trackless Gantry Crane PT3 Trackless Gantry Crane

Rail-free electric movement, height can be fixed or adjustable according to customer needs (winch lifting, turbine lifting, and electric lifting).

500kg-20ton 10m 15m
PT4 Rail-mounted Gantry Crane PT4 Rail-mounted Gantry Crane

Rail-mounted electric movement, height can be fixed or adjustable according to customer needs (winch lifting, turbine lifting, and electric lifting), capable of lifting heavy loads.

500kg-20ton 10m 15m
LT aluminum gantry crane LT Aluminum Gantry Crane
Lightweight, easy to install and dismantle, available in three types, adjustable in height and span according to needs.
100kg-5ton 8m 8m

Kinocranes’ portable gantry crane utilizes our patented welding design, 8.8-grade steel, corrosion-resistant aluminum, and plated bolts, pins, and hardware. These A-frame cranes, lifts, and hoists are exceptionally sturdy, stable, and portable, making them perfect for lifting operations in a variety of environments, from automotive garages and workshops to warehouses.

Applications Include:

  • Lifting components in auto repair shops and maintenance workshops.
  • Lifting equipment and materials in laboratories.
  • Lifting and decorating with stone materials.
  • Lifting small boats and aircraft.
  • Handling various precision products.
  • Maritime applications, from ships to aerospace and military environments.

The cranes are quick and easy to assemble, disassemble, transport, and store.

Our comprehensive production line comprises over 400 models with capacities ranging from 500kg to 20 tons. We offer seven different styles in fixed and adjustable heights and spans. You also have the option to request customization of your crane’s beam length and/or height. Just let us know your requirements when you request a quote.

Custom Crane

For your specific lifting needs, Kinocranes is dedicated to providing tailored solutions. Our senior engineers are prepared to design the most optimal product configuration based on your site conditions and operational requirements. Please provide us with the following parameters, and we’ll create a customized solution for you:

  • Rated Load: [Please specify the desired load capacity in tons]
  • Height: [Please specify the required lifting height range]
  • Span: [Please specify the desired span width]
  • Hoist Configuration: [Select either Manual/Electric Chain or Cable Hoist]

Our expert team will take these specifications into account to ensure that the resulting gantry crane meets your exact needs, maximizing efficiency and safety.

With a global reach, Kinocranes has successfully shipped mobile gantry cranes to numerous countries, including the United States, Canada, Australia, Indonesia, Singapore, the United Kingdom, the EU, and beyond. Our commitment to quality and innovation ensures that you’ll receive a high-quality product that meets international standards.

Contact Kinocranes today to discover the ideal portable gantry crane solution for your business. Our dedicated team is ready to assist you in achieving seamless and efficient lifting operations. Don’t miss out on the opportunity to enhance your productivity and streamline your processes with our reliable mobile gantry cranes.
