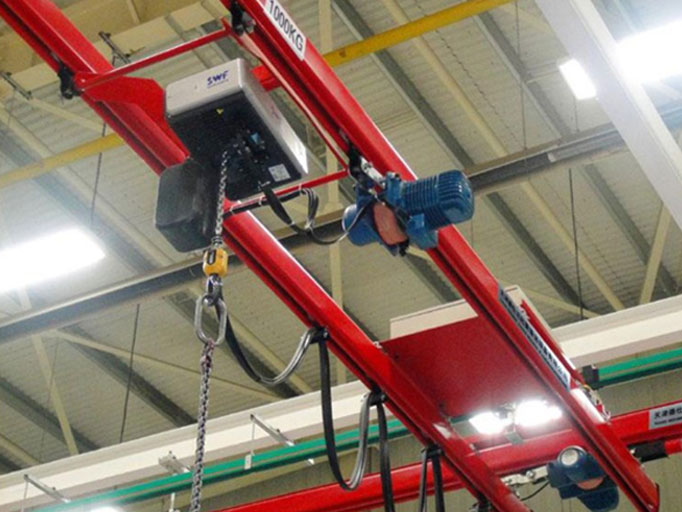

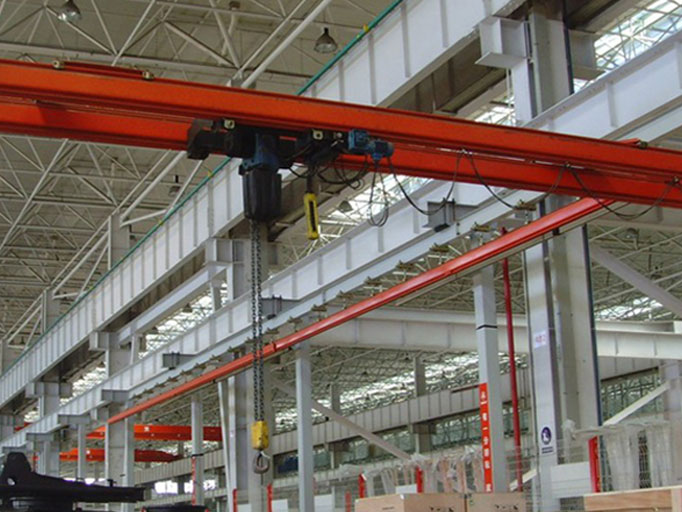

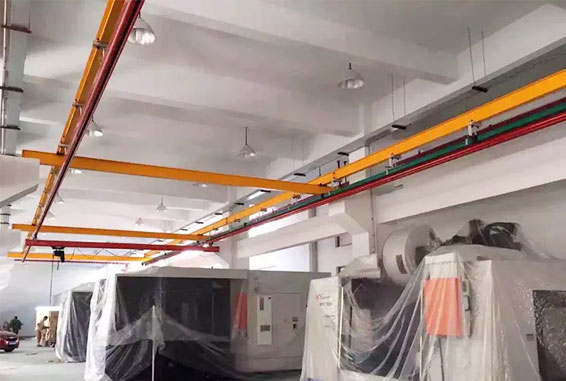

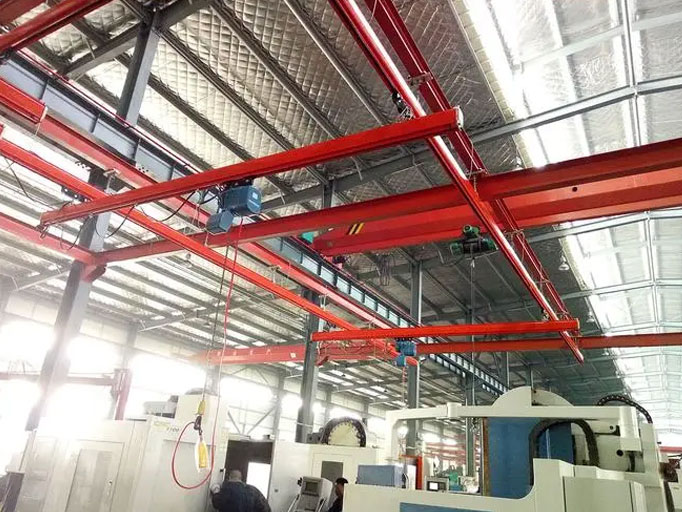

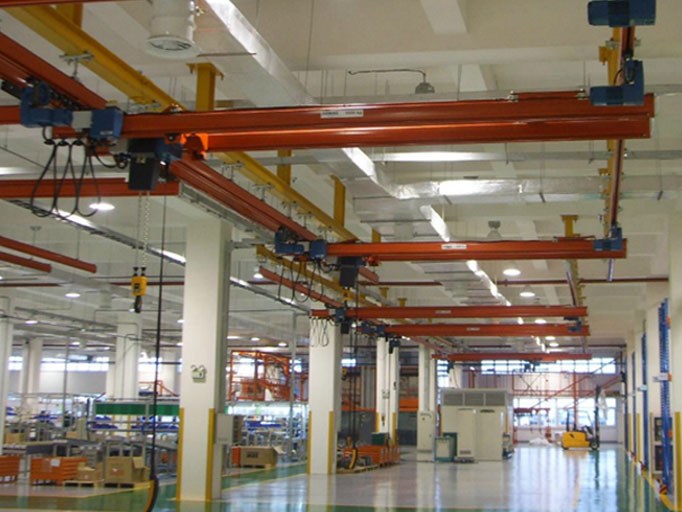

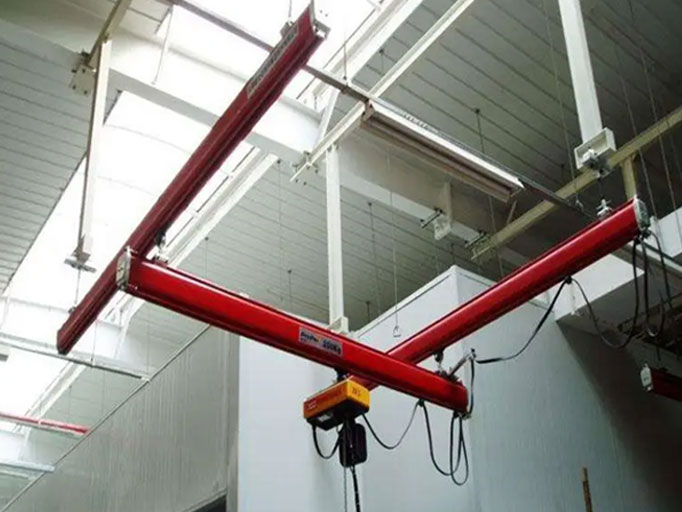

Ceiling Mounted Workstation Crane

  • Lifting Capacity: 250kg~2t
  • Lifting height: 6-9m
  • Span: 6-10.3m
  • Power source: Customized is acceptable
Applications:

Factory, workshop, warehouse, power station, logistic,etc.

Leave Message Chat Online

  • Description
  • Technical Data
  • Features
  • Advantages
  • Application

Description

Ceiling mounted workstation crane can quickly and safely complete the plane lifting of all kinds of materials, its walking mechanism is very lightweight, light operation, can move freely. It can also be simply hung on the top structure of the plant, without additional columns, improve the utilization of space and have good economy.

Ceiling mounted workstation crane is a combination of standardized and modular components, according to the needs of users, the straight rail, curved rail, flexible hanging device, running car, electric hoist, electric drive device, power supply system and control system together, with various forms and various specifications of the crane system.

The workstations bridge crane track is a closed track, with straight track and curved track, divided into Ω type or C type, and the materials commonly used are carbon steel, stainless steel and aluminum alloy. Because it is a standard component, it can be assembled into any structure such as long and short single track, multi-track, curved track or circular track.

The suspension device is generally installed on the lower edge of the I-beam/H-beam or on the concrete beam. It has a certain self-locking function and is easy and reliable to install.

Technical Data

Item
Data
Capacity
50kg-2ton
Span
0.7-9m
Lifting height
3-10m
lifting speed
1-23m/min
traveling speed
3.2-40m/min
Working class
A1-A6
Power source
Customized is acceptable

Features

1. Good reliability and high stability;
The components of the light crane system are all standard modules, which can guarantee high-volume, high-quality production, so the system is very reliable; the main body of the system module is three types of cold-rolled profiles, which have high strength, good rigidity, and low self-weight. The stability of the system.
2. Adaptable;
he Combined crane system can flexibly design and install a crane system according to the needs of each station in the factory. From fixed point delivery to high-precision multi-point and multi-beat automated conveyor lines, they can be combined at will. It can be used in newly designed workshops, and can also be used to transform or extend old systems.
3. Easy to install, cost-effective;
The installation and commissioning of the Combined crane system is very convenient. The profiles and the standard modules can be used only by bolting, which can save the space and area of the factory, greatly reduce human resources, and improve production efficiency, thereby reducing energy consumption and improving corporate profits. The system can be operated manually or automatically or semi-automatically, with high efficiency.

Advantages

free standing overhead crane advantagefree standing overhead crane

Application

Generally applicable to automotive industry, new energy, photovoltaic industry, machining, component assembly, and other fields;

1. Suitable for positioning and installation work scenarios: CNC lathe machining, hole-to-hole installation, differential/marine engine assembly

2. Suitable for door welding, etc. Suitable for frequent handling scenarios: speaker packaging on and offline, compressors, molds, furniture, tire building machines, motor handling, etc.

3. Suitable for hoisting scenarios of fragile and precision precious workpieces: ceramics, glass processing, new energy batteries, parts machining, etc.

4. Suitable for high-risk operation scenarios: engine rotor assembly, automobile transmission shaft handling, wind power bearing processing, etc.

5. The combined crane can be suspended on multiple tracks to cover a larger storage and production area, and the crane can be easily moved by hand.
