Aluminum Jib Crane

The aluminum jib crane is a workstation crane with a boom made from an anodised aluminum rail profile. The hoist trolley runs inside the profile, and a tie rod above the boom carries the load back to the pillar or wall bracket. It is designed for loads from 80 kg to 500 kg and arm lengths from 2 m to 5 m.

Because the boom is much lighter than a steel I-beam arm, the operator can swing the jib and move the load along it by hand with very little force. This makes it a good choice for frequent, short lifts at a single workplace, where a heavier jib would slow the operator down.

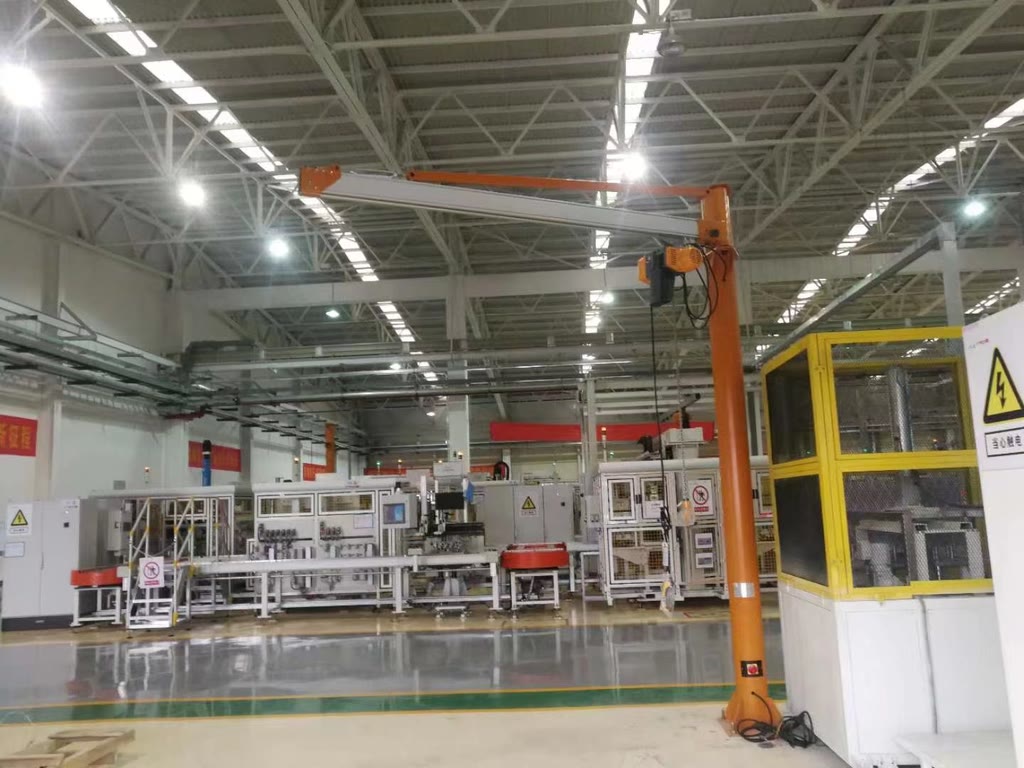

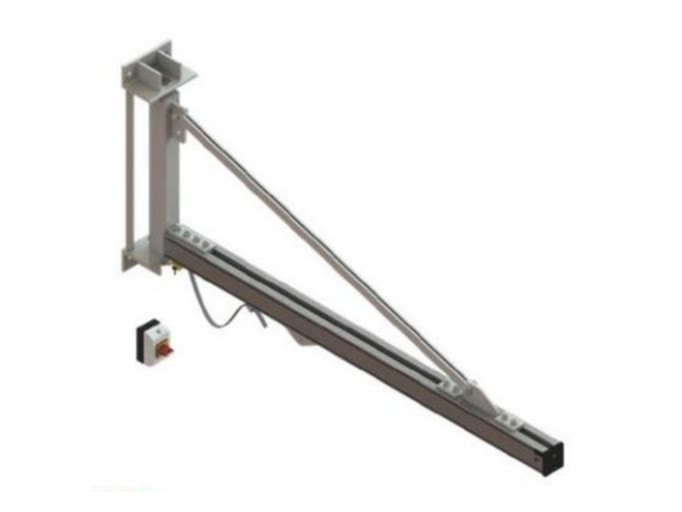

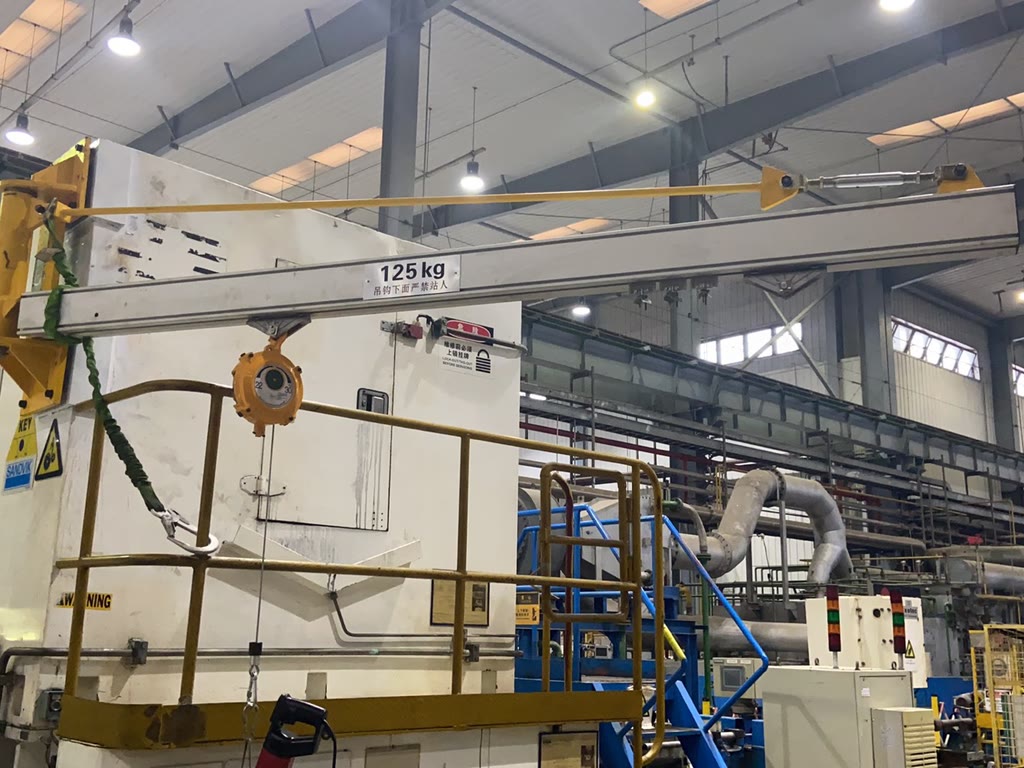

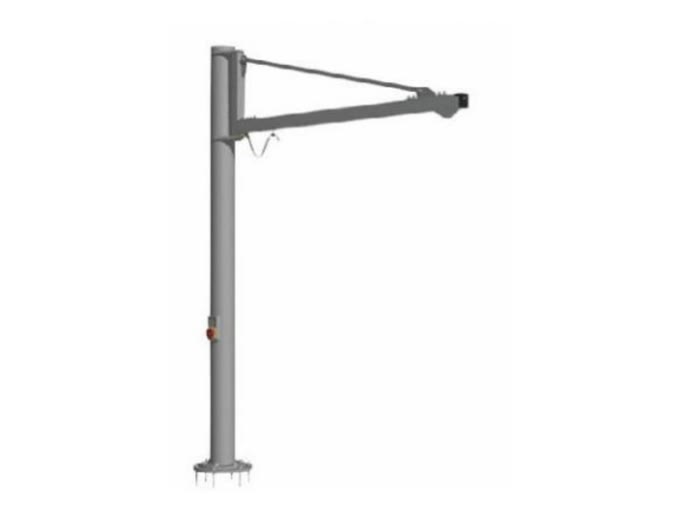

Two versions are available. The pillar-mounted jib stands on its own column, slews through 270 degrees and is fixed to the workshop floor with anchor bolts; the main switch is built into the column. The wall-mounted jib is bolted to a building column or steel support, slews through 180 degrees and needs no floor space at all.

The crane is supplied with cable trolleys and cable along the boom and can be fitted with an electric chain hoist, an intelligent servo hoist or a balancer with a vacuum lifter or gripper. Column height and arm length are made to the dimensions of your workplace.

Standard models

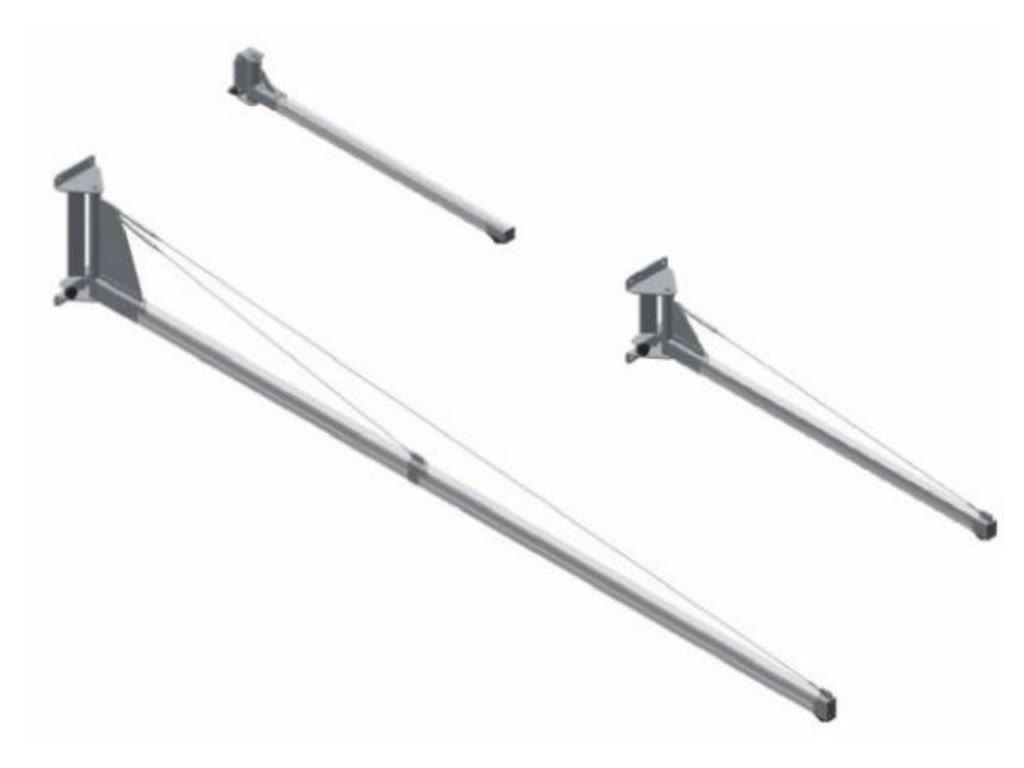

Other arm lengths, column heights and mounting brackets are available on request.

1. Light boom, easy to swing
The aluminum profile keeps the moving mass low, so slewing and trolley travel need very little push force.

2. Low deflection
The profile mounting and tie rod are designed for the best load capacity and the smallest deflection of the boom.

3. Quick to install
The pillar is anchored to the floor and the boom is bolted on; the main switch is already integrated in the column.

4. Clean and corrosion-free
Anodised aluminum needs no paint and does not rust, which suits clean production areas.

5. Works with any light hoist
Chain hoists, intelligent servo hoists, balancers, vacuum lifters and grippers can all be fitted to the trolley.

6. Made to your workplace
Column height, arm length and wall bracket are adapted to the machine and the building.

Typical uses for the aluminum jib crane:

1. Loading and unloading machine tools, presses and test benches.

2. Assembly and packing workstations with frequent lifts of similar parts.

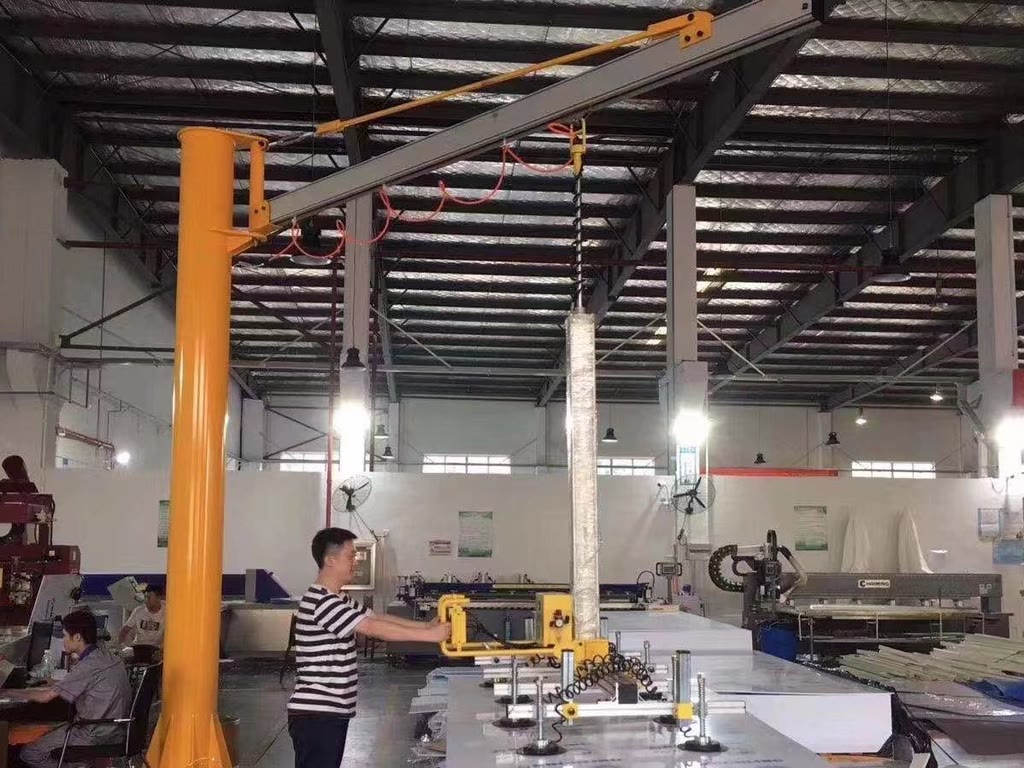

3. Handling sheets, panels and glass with a vacuum lifter.

4. Electronics, new energy and other clean production areas.

5. Workplaces at walls and columns where floor space must stay free.
