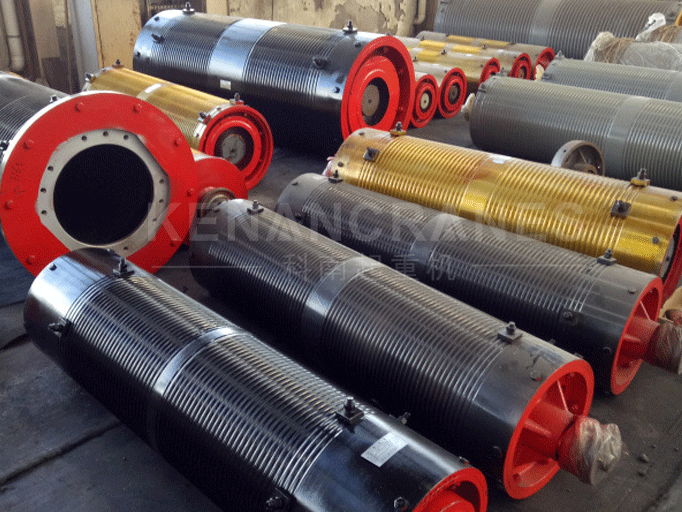

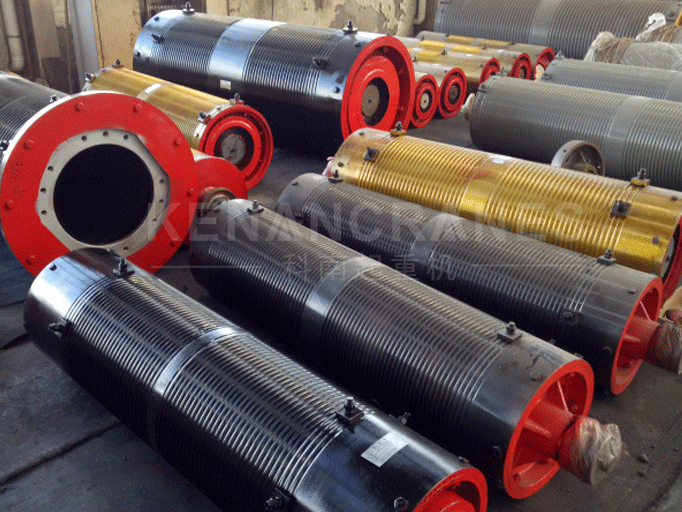

Wire Rope Drum

Crane parts service

Wire rope drums, also known as crane drums or hoist drums, are an essential component of crane systems. They are designed to wind and unwind wire ropes, which are used to lift and move heavy loads in various industrial applications, including cranes, winches, and other types of lifting equipment.

  • Material: 20#, Q235, Q345
  • Groove surface quench: Achieve a hardness of HRC45-55.
  • Groove surface quench depth: ≥2mm
  • Heat treatment: hardening and tempering, high frequency quenching, improving its surface hardness and wear resistance.
  • Inspection test: UT and MT, ensure that there are no defects or cracks in the metal that could affect the drum's performance or safety.

Applications:

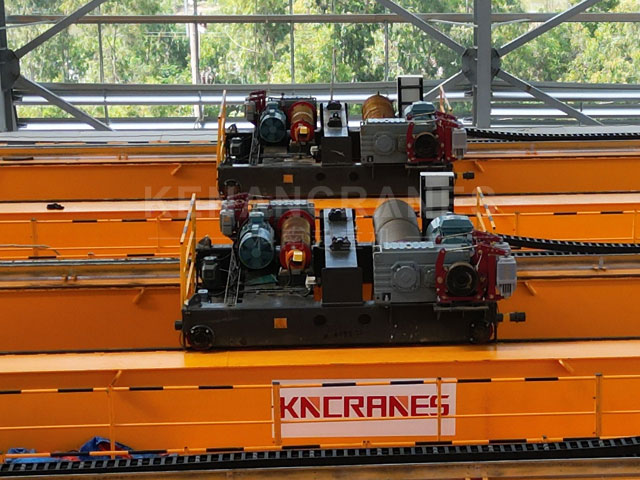

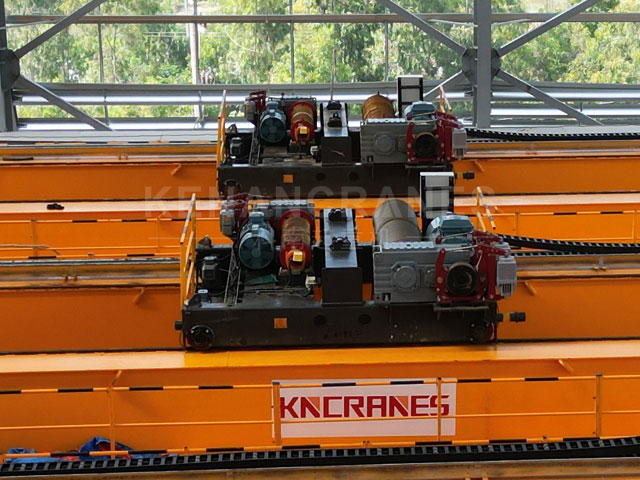

Single Girder Overhead Crane, Double Girder Overhead Crane, Gantry Crane, Port Crane, Ship Winches, Winches, Beam Lifting Mechines, Three-dimensional Garages, All-terrain Cranes, Etc.

Leave Message Chat Online

  • Description
  • Classification Of Crane Drum
  • Feature and Advantage

Description

The wire rope drum is a widely used machine in lifting machinery, used to lift and pull heavy materials in construction sites, port piers, factories, and mines.

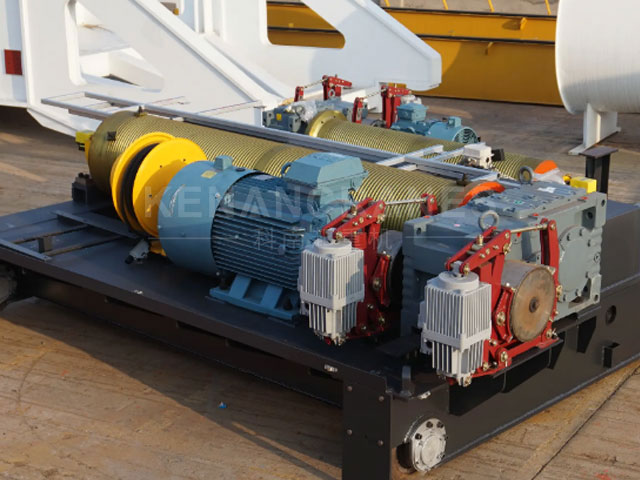

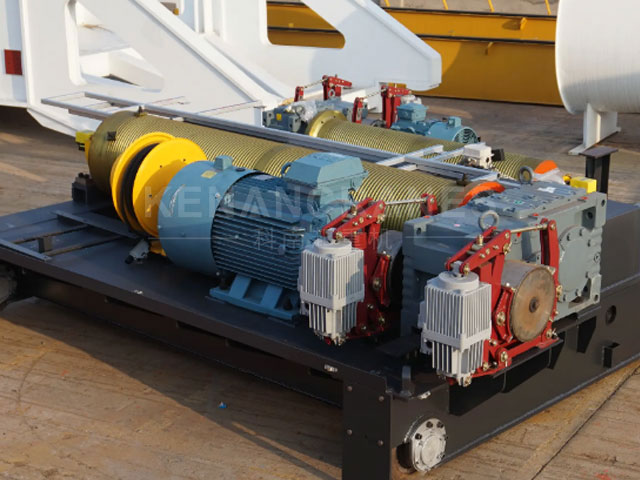

The crane lifting drum typically consists of a drum shaft, flange type annular gear, drum hub, bearings, and bearing pedestal. The drum is designed to handle the weight and tension of the wire rope, and it must be able to rotate smoothly and evenly to ensure safe and efficient operation.

Classification Of Crane Drum

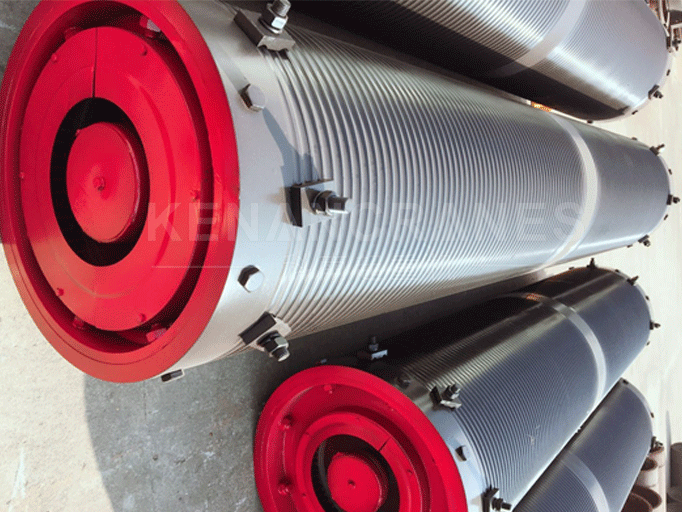

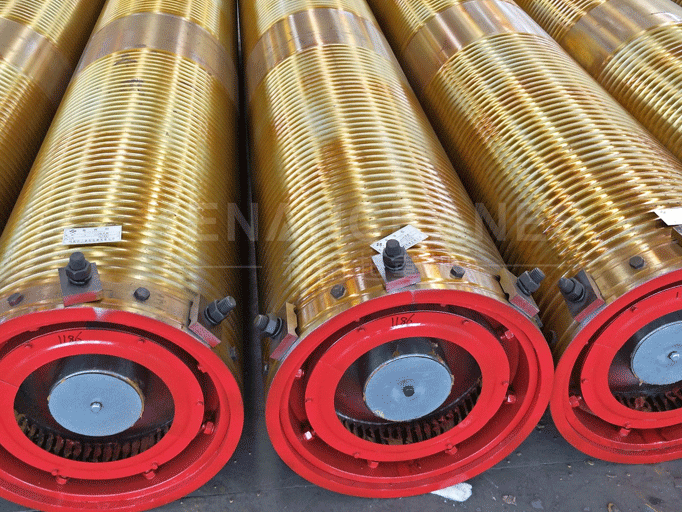

According to the shape: This classification includes smooth drum, spiral groove drum, single drum, double drum, and broken line drum. The smooth drum has a cylindrical surface without any grooves, while the spiral groove drum has grooves that run in a spiral pattern along the length of the drum. Single drum and double drum refer to the number of drums used in a lifting system, with single drum having one drum and double drum having two. A broken line drum is a type of drum with a non-uniform groove pattern, designed for specific lifting applications.

According to the installation and reducer matching: This classification includes take-over reel with gear plate, reel with external gear, reel with coupling, reel with brake disc, and European-style reel. These classifications refer to how the drum is installed and matched with a reducer, which is a device used to reduce the speed of the motor to the required speed of the drum.

According to the matching equipment: This classification includes electric hoist drum, double beam drum group, hoist drum, winch drum, and stereo garage drum. These classifications refer to the different types of equipment that can be used with the crane drum, such as electric hoists, winches, and double beam crane systems.

The different classifications of crane drums can help to identify the specific features and applications of each type of drum. The choice of crane drum will depend on factors such as the lifting capacity, speed, and environment, as well as the specific requirements of the lifting operation.

Feature and Advantage

Customizable products: Kinocranes has the capability to produce parts based on clients’ samples or drawings. This allows for greater flexibility and customization to meet the specific needs of their customers.

Quality control: We checks and tests all items thoroughly during every working procedure and after the product is finally manufactured to ensure the best quality product is delivered to the market. Additionally, Kinocranes arranges special engineers to inspect the quality of the products, which further enhances the quality control process.

Supply of high-quality bearings: Kinocranes can supply the best bearing for the customer. This ensures that the products perform optimally and have a longer lifespan.

Expertise in reel material: Kinocranes understands that the type of material used for the reel can affect its performance. For instance, when using iron, special steel or steel plate welding may be required. Kinocranes’s expertise in reel material ensures that the right material is used for the job.
