Slab and Billet Handling Electromagnetic Cranes

  • Max.Wheel Load:65-335KN
  • Lift Height: 10-16m
  • Span: 10.5-34m
  • Lifting Speed:12.4-16m/min
  • Trolley Travelling Speed:32-44m/min
  • Crane Travelling Speed:85-107m/min
Applications:

Mainly used to lift and transfer steel plate, pipe, profile steel, steel bar, steel billets, steel coil, or large material in steel mill, shipyard, port yard, etc.

Leave Message Chat Online

  • Description
  • Technical Data
  • Features
  • Applications

Description

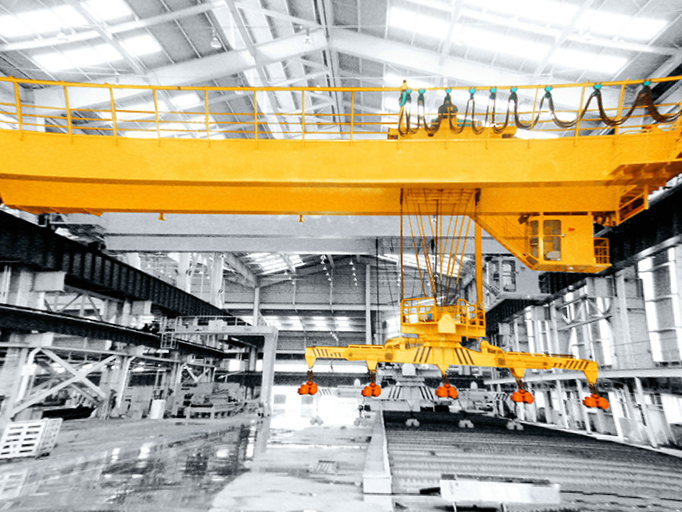

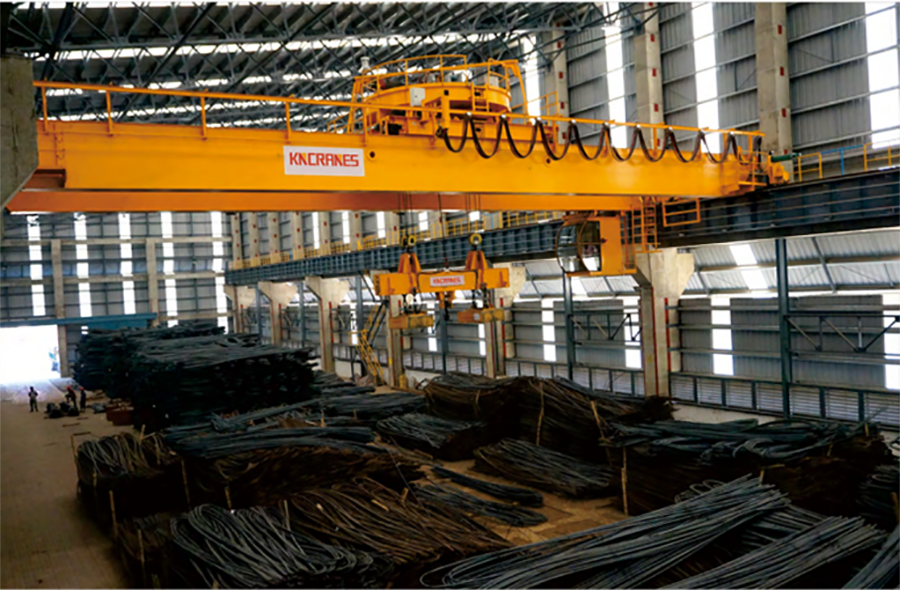

Slab and billet handling electromagnetic cranes is a trolley rotating magnet overhead crane, this type electromagnet cranes is mainly used to handling and transfer steel plate, pipe, profile steel, steel bar, steel billets, steel coil, or large material in steel mill, shipyard, port yard, etc. The picture above shows kinocranes steel bar handling electromagnet bridge (EOT) crane used in a Pakistan steel mill. The trolley could horizontally rotate to meet different working demands. The working class is up to M8, the crane lifting capacity includes the dead weight of magnetic lifters, the capacity reaches 25t+25t and is available to be customized.

There are 2 types of electromagnet spreader: lifting electromagnet and electromagnetic beam. And electromagnetic beam can also be 2 kinds: non-rotating beam (vertical or parallel to main girder) and rotating beam (Upper beam or hanging beam). Tailoring provides you with attachments for any steel products, and additional capacity, as per your requirements.

Technical Data

Capacity t 5+5 10+10 16+16 25+25
Crane Span m 10.5-34
Lifting Height m 10-16
Speed Lifting m/min 12.4-16
Trolley Travelling 32-44
Crane Travelling 85-107
Rotating r/min 1.36-1.85
Max.Wheel Load KN 65 210 260 335
Total Power KW 50.2 128 151-196 243.5
Working Class M6-M8
Steel Track Recommended 43kg/m QU80 QU100
Power Supply 3-phase A.C. 50HZ 380V or customized

Features

  1. Three entrances to the cab: end, side and top entrances.
  2. When processing the electromagnetic plate, the rotating part of the hook must be locked with screws.
  3. Lifting capacity includes the weight of the electromagnetic part, the weight of the entire crane does not include the weight ofthe electromagnetic chuck and its components.
  4. The box beam structure adopts robot high strength welding.
  5. Hubs, drum wheels, gears and couplings are manufactured by CNC.with the best quality.
  6. The heavy-duty slip ring motor produced by Henan NGP Company has the best quality.
  7. Electrical equipment from Siemens, Germany.
  8. Independent control system: wireless control or cab control

Applications

The slewing mechanism of the trolley rotating magnet overhead crane can use rolling bearing slewing bearing. The electromagnetic beam crane is a kind of bridge crane which can absorb and transport items through the electromagnet under the hanging beam. It is mainly used for lifting long items such as steel plate, billet and bar bundle.
