Paper Making Overhead Crane

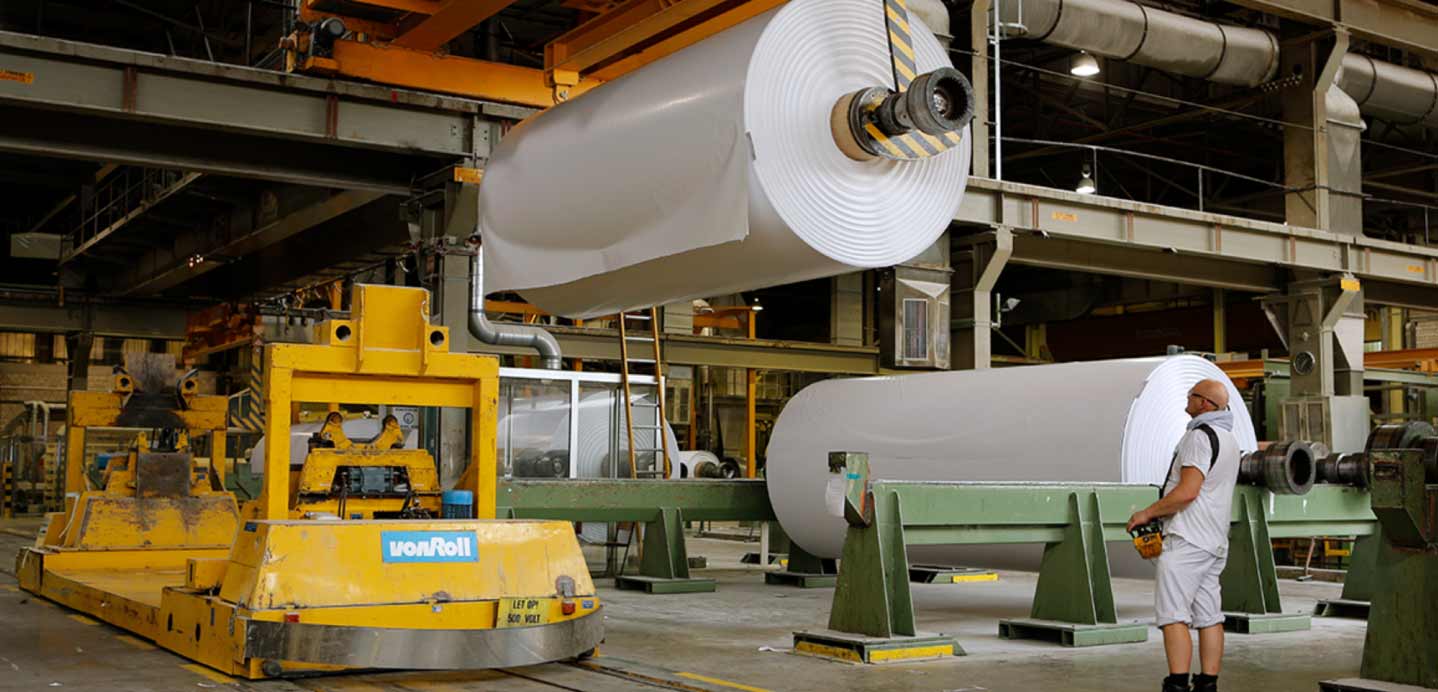

Overhead bridge crane is an essential lifting equipment in the paper making process. Paper mill EOT crane is mainly used for lifting paper machine equipment and paper reel spool.

The working environment of paper mill crane is relatively harsh, such as high temperature, high humidity, paper scraps in the air, etc. Therefore, the paper mill crane must be able to adapt to the harsh working environment and high-intensity paper mill operation. So selecting the right paper mill cranes manufacturer can not only reduce the initial crane investment and plant construction costs, but also reduce crane operation costs and maintenance costs, reduce paper machine downtime losses, improve enterprise efficiency and enhance enterprise competitive advantage.

Wet end overhead bridge cranes

There are 3 trolleys are travelling on the crane girders. The work duty of this wet end crane is FEM 2m, FEM 3m or FEM 4m. The speed control mode is VFD stepless. The standard capacity is from 16ton, 18ton, 20ton to 100Ton+16ton, 18ton, 20ton to 100Ton. The wet end crane duty is transferring paper rollers from one side to other side in the workshop.

Dry end overhead bridge cranes

There are 2 trolleys are travelling on the crane girders. The work duty of this dry end crane is FEM 2m, FEM 3m or FEM 4m. The speed control mode is VFD stepless. The standard capacity is from 16ton, 18ton, 20ton to 100Ton+16ton, 18ton, 20ton to 100Ton. The dry end crane duty is transferring paper rolls from one side to other side in the workshop. This crane also called paper rolls handling cranes.

Fully Automated Cranes

Fully automated control overhead bridge canes are mainly used in paper roll storage shop for handling paper rolls. The crane will attach with a vacuum lifter or a mechanical roll gripper to shift the paper rolls automatically.

• Heavy duty design
• More intelligent devices
• High safety feature to adopt the extremely harsh and humid environments.
