The commonly used excavator magnet are magnetic suction cups, which are generally rectangular or circular. It uses magnetic force to hold ferromagnetic workpieces tightly, and is used for plane adsorption of steel bars and scrap iron, and also used for scrapped cars, ships, steel structures, etc.

According to the magnetic source, the excavator magnet are divided into two types: hydraulic excavator magnet and electric lifting magnet.


Used in different industrial areas, such as steel making, foundry, mining, machinery, transportation and other industries.

Leave Message Chat Online

  • Description
  • Technical Data
  • Features
  • Advantages
  • Why chose Kino Magnet

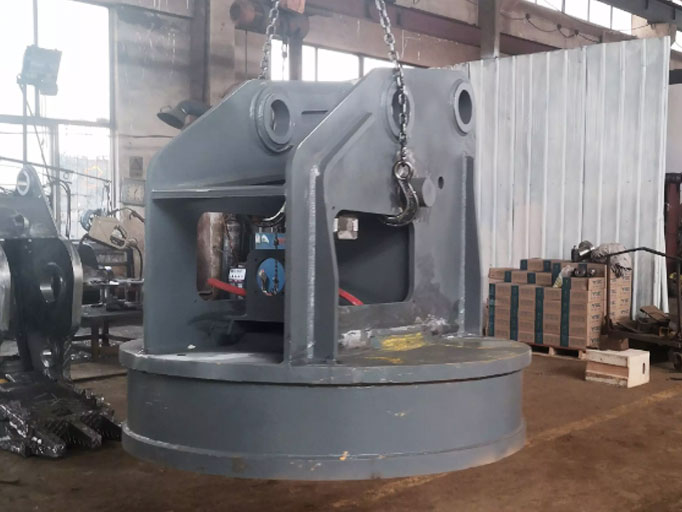

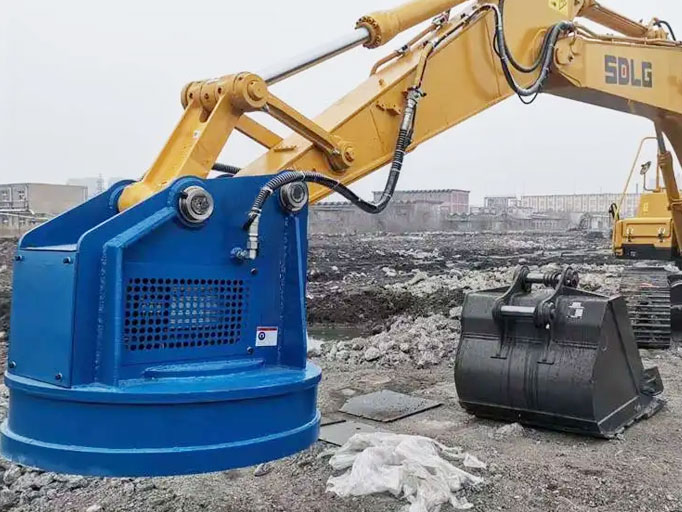

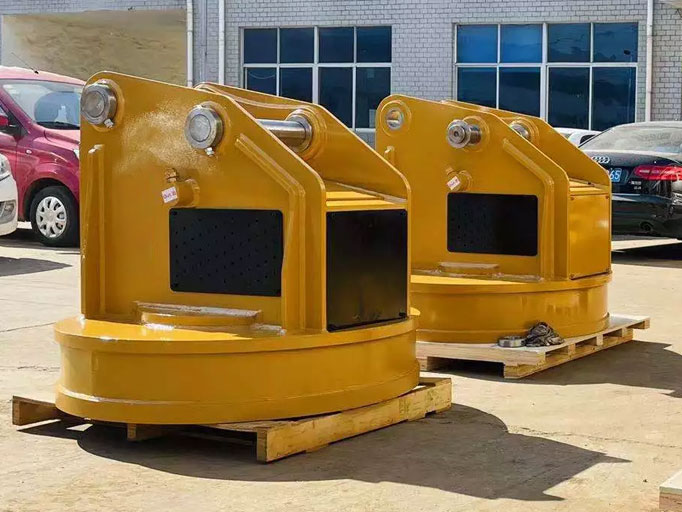

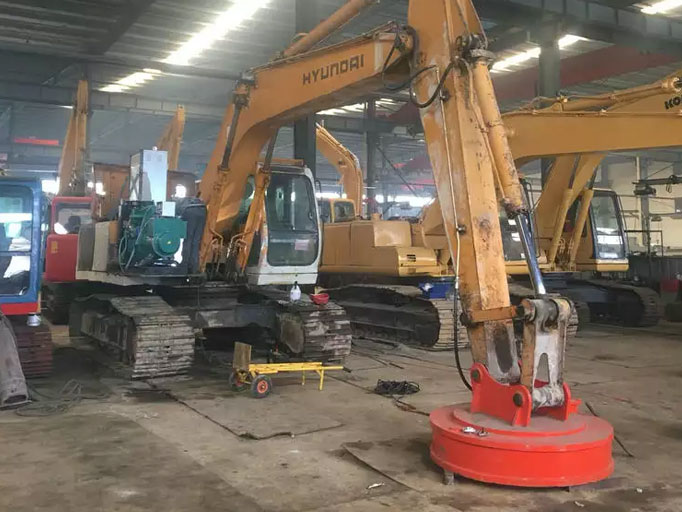

Hydraulic magnet for excavator

Kinocranes hydraulic excavator magnet is completely independent. The generator is installed directly onto the magnet. Once the hydraulic hoses are connected to the excavator, you are ready to work.

  1. Adopt manganese steel plate, high strength and wear resisting.
  2. Sturdy structure & compact design, light weight & big suction.
  3. Special processing for magnet coil, enhance the heat resistance of coil material, with long span life.
  4. Simple installation, easy operation, low failure rate, no noise, meet the requirements of environmental protection.

Hydraulic Excavator Magnet Lift Use hydraulic motors to drive electricity generation, No additional instaiiation of generators is required, resulting in significant cost savings.

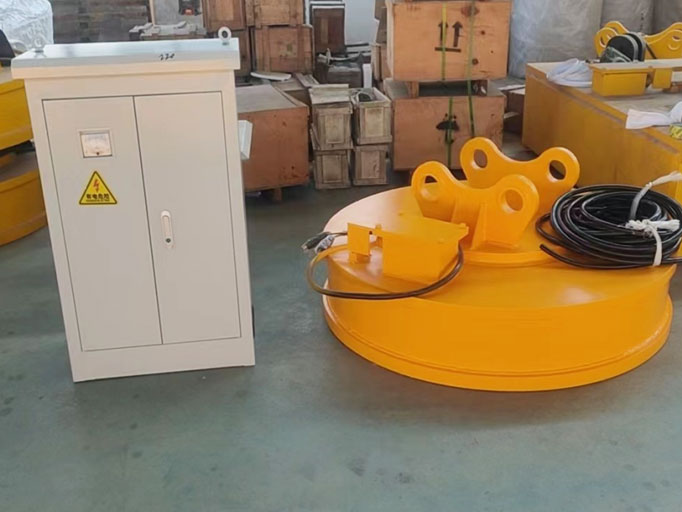

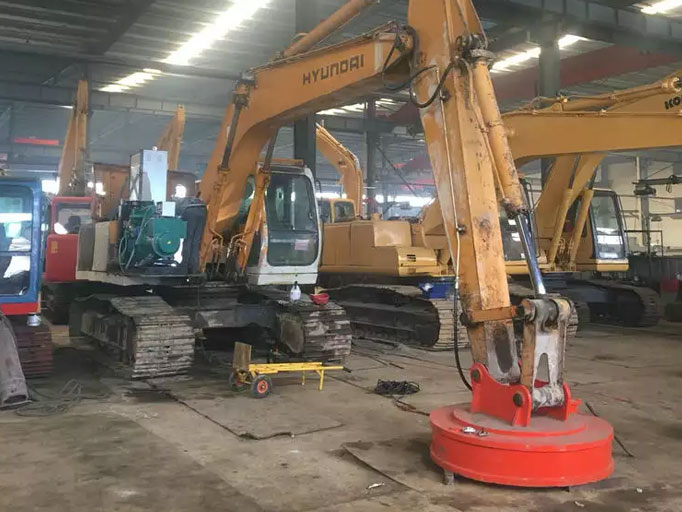

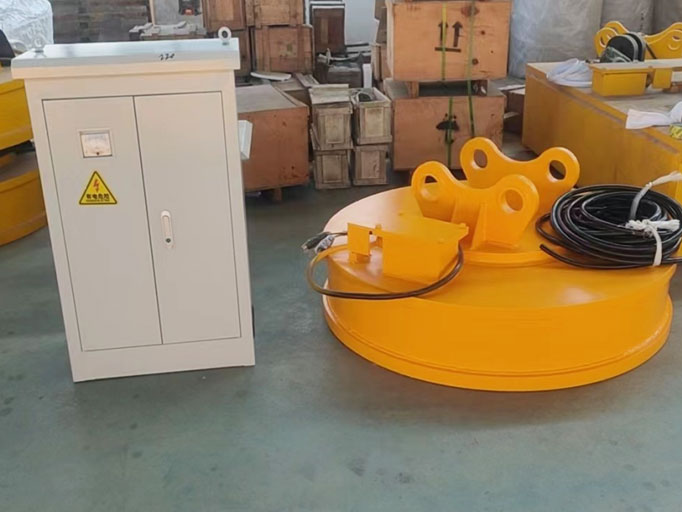

Electric Excavator Scrap Magnets

Electric lifting magnet used on excavator, for sorting out steel scraps, is also referred as excavator magnet, or scrap magnet,scrap handling magnet, scrap yard magnet, junkyard magnet. Suitable for all steel scrap processing operations like transferring cast ingots, steel balls and various kinds of steel scraps. Electromagnet Whole Set Include: Sucker, Remote Controller, Cable Drum, Cable Line and Power Distribution.

Technical Data

Hydraulic Excavator Magnet Technical Data

Model Unit KN-HM700 KN–HM1000 KN–HM1200A KN–HM1200B KN–HM1500
Outter Diameter mm Ø700 Ø1000 Ø1200 Ø1200 Ø1500
Machine Weight kg 1400 1600 1800 1860 2200
Suitable Excavator ton 6–9 10–15 16–25 16–25 26–35
Generator Power KW 0.6 10 10 15 15
Working Flow Ipm 50-100 90-110 100-140 100-140 130-170
Working Pressure bar 180 190 200 200 210
Lifting Ability Slab Sheet ≤ 1 ton 1 – 2 ton 3 – 4 ton 3 – 4 ton 4 – 6 ton
Other Type Scraps ≤ 100 kg 100 – 200 kg 150 – 250 kg 150 – 250 kg 175 – 275 kg

Electric Excavator Scrap Magnets Technical Data

Outer Diameter
Suitable excavator


1. Magnet Iron Core: Q235A material, with best magnetic permeability, to make sure the magnetic field generated by each coil concentrated.
2. Magnet shell material is Q345B steel plate with 130-140mm thickness, automatic cutting machine cut without further process and defects. Make sure the welding more smoothly and convenient.
3. The magnet coils are treated by a special process to improve the electrical and mechanical properties. The material insulation grade can reach to Class H.
4. According to different application, the magnet can adopt suitable structure and parameters to make sure the best performance for sucking materials, which can widely meet various situations.
5. Heat resist type magnet adopts a unique thermal insulation method, the Max. temperature can reach to 700-800℃, which will expand the magnet application range again.
6. Fast connection electricpanel with plug-in type aviation socket, international top brands Schneider, ABB, Siemens for critical electric parts, make sure easy installation, operation and maintenance.


1. Using a fully sealed structure, good moisture resistance.
2. Optimized by computer design, reasonable structure, light weight, large suction, low energy consumption.
3. Excitation coils are treated by a special process to improve the electrical and mechanical properties of the coils. The heat-resistance grade of the insulation material is up to Class C, the overall insulation of the suction cups is H-class and the service life is long.
4. The rated electrification continuation rate of ordinary electromagnets has been increased from the previous 50% to 60%, which has increased the use efficiency of electromagnets.
5. The high-temperature type electromagnet adopts a unique heat insulation method. The temperature of the sucked object is increased from the previous 700°C to 800°C, which expands the adaptability of the electromagnet.
6. Easy installation, operation and maintenance.

Why chose Kino Magnet

We ship lifting magnet all over the world including the Indonesia, Thailand, the United Kingdom, the EU, and more.

Contact Kinocranes to find an optimum scrap magnet for your business!
