Electric Telescopic Container Spreader

  • APPLICATION: RTG Cranes, RMG Cranes, Gantry Cranes
  • ISO CONTAINER SIZES: 20’, 40’ and 45’ containers
  • SPREADER CONTROL: Mechanical
  • OPTIONS: Rotating Spreaders, ±1200 Movement Spreaders

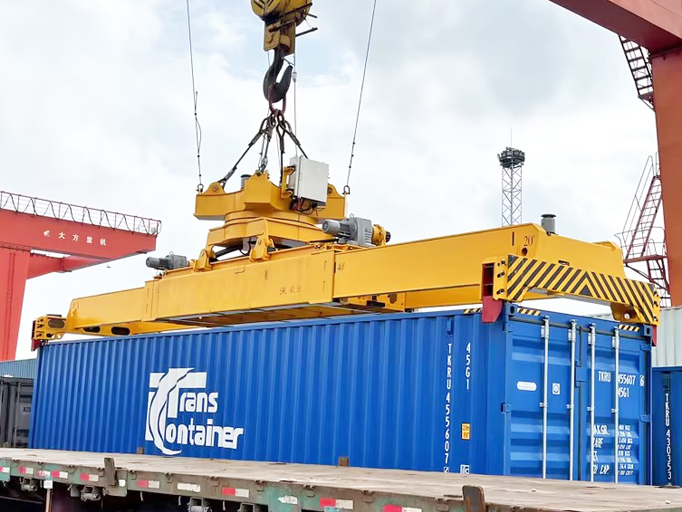

Used in ports and container terminals for lifting and handling containers

Leave Message Chat Online

  • Description
  • Technical Data
  • Features
  • Project Case

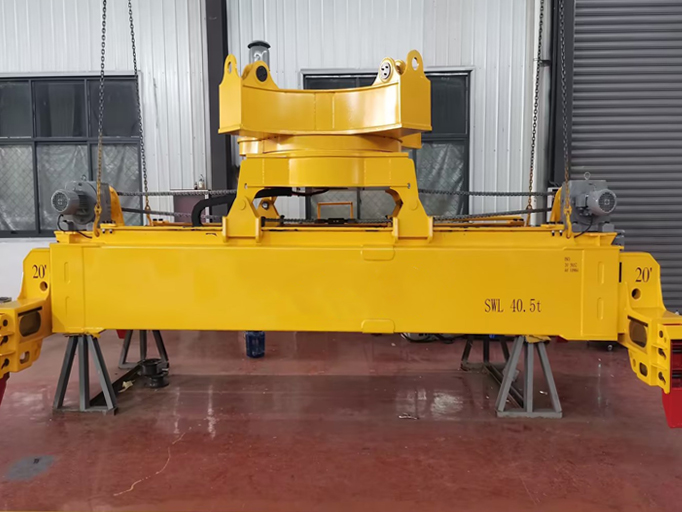

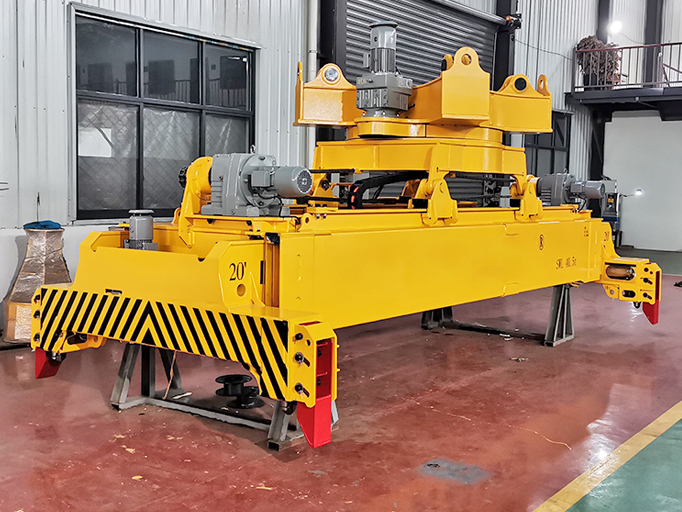

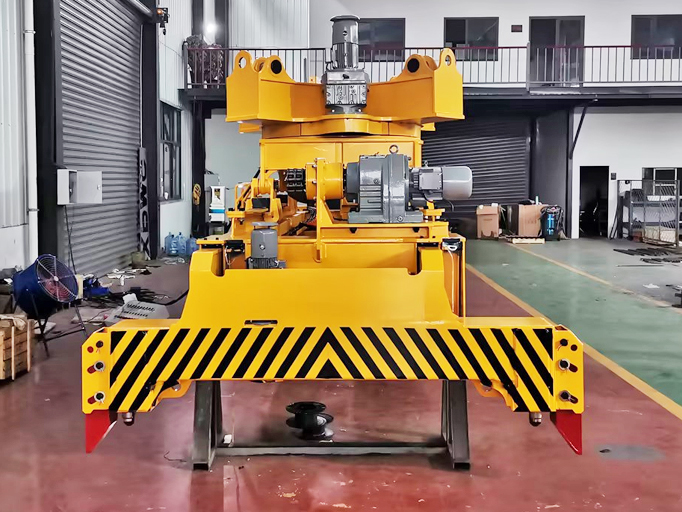

Electric telescopic container spreader is the most commonly used type for container-dedicated cranes. It automatically adjusts its length to handle lifting operations for containers of different sizes. The telescopic and lock/unlock actions of the electric single-container telescopic spreader are motor-driven, suitable for 20ft, 40ft, and 45ft containers. Telescopic container spreader is used for handling ISO containers up to 41 tons deadweight.

Technical Data

Model ESS040ft ESS040ft_ RSH _ER360 ESS040ft_RHH _ER360_CT+1200FF4
Weight 7.3 tons 9.5 tons 13 tons
Swivel Type ISO floating swivel, driven by deceleration motor
Extension Type Motor-driven, connected by roller chain
Rotation Angle 360℃(optional)
Translation Distance / / ±1200mm
Rotation Type / Motor-driven, rotation supported by rotary bearing
Guide Mechanism Detachable fixed guide plate (FF, optional)
Power Supply Voltage/Frequency AC 380(3P)/50Hz
Total Power ≤6KW ≤8KW ≤14KW
Allowable Eccentric Load ±10%
Rated Load ≤41 tons
Rated Load of Lifting Ear 4×10.5 tons
Ambient Temperature -20℃ to +60℃
Locking Time ~1s
Extension Time (20ft~40ft) ~22s
Rotation Speed / 1r/min
Translation Time / / ~35s (optional)
Translation Type / / Motor-driven,
connected by roller chain
Protection Level IP55
Control Voltage AC 220V (optional)
Maximum Power Consumption 4KW


  1. Motorized Operations:
    • All operations of the container lifting spreader are driven by electric motors.
    • The electric motor is selectively powered only during necessary actions, ensuring minimal power consumption during idle periods.
  2. Advantages over Hydraulic Spreader for container lifting:
    • Compact structure and lightweight design.
    • Environmentally friendly with lower energy consumption (around 10% of hydraulic spreader).
    • Reduced running costs, fewer faults, and easy maintenance.
    • Low noise and no oil leakage, contributing to a green and clean working environment.
  3. Fixed Guide Plate Design:
    • Utilizes a fixed guide plate to assist drivers in precise container handling.
    • Enhanced structural strength compared to movable guide plate devices.
    • Significant cost reduction in comparison.
  4. Electrical System:
    • Installation of an advanced electrical system on the spreader.
    • Components include an electrical control box, limit switches, junction box, modules, indicators, plugs, various sensors, and signal transmitters.
    • Controls and provides feedback for all container lifting spreader actions.
  5. Optional Accessories for Maintenance and Safety:
    • Customizable with optional accessories based on maintenance, safety, and protection requirements.
    • Available accessories include ladders, guardrails, anti-fall lugs, anti-drop chains, and self-closing doors.
    • Provides flexibility to meet specific operational and safety needs.

Project Case

KENAN lifting equipment is operational in over 90 terminals across 25 countries worldwide. With a strong presence on both the East and West Coasts of the United States, as well as in major European, South American, African, Oceanic, and Asian ports, KENAN’s reliable and efficient spreaders are widely embraced globally.

Container Spreader Case

Experience the superior efficiency and eco-friendly performance of KENAN telescopic container spreader,  Upgrade to a cutting-edge solution that combines the power of electric motor-driven operations, cost-effectiveness, and advanced safety features. Elevate your lifting experience with KENAN – where innovation meets reliability.

Contact us today to learn more about our electric telescopic container spreader and explore how KENAN can enhance your material handling capabilities. Elevate your operations, choose KENAN – Empowering Your Lift, Elevating Your Success.
