Double Girder Light Crane System

Lifting Capacity: 500 kg ~ 3 t
Lifting height: Customized to workshop height
Span: Up to 7.5 m, longer on request
Power source: 3-phase 220-690 V, 50/60 Hz, customized

Applications:

Engine and axle assembly, mould handling, machining of heavy workpieces, etc.

Description
Technical Data
Features
Application

Description

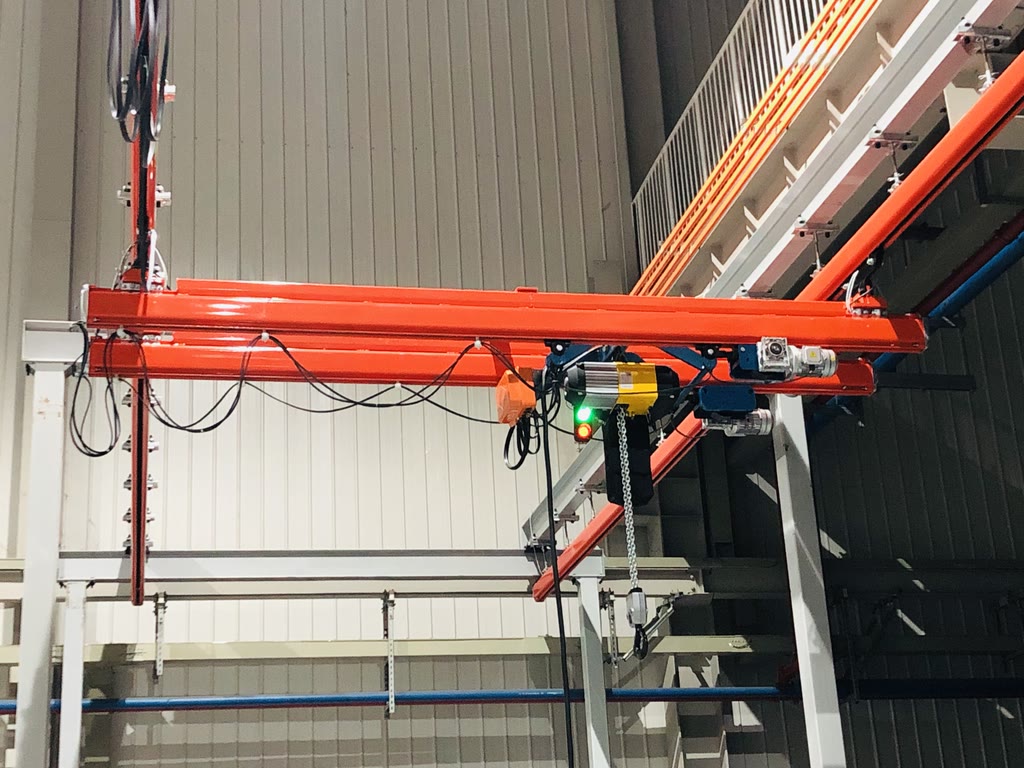

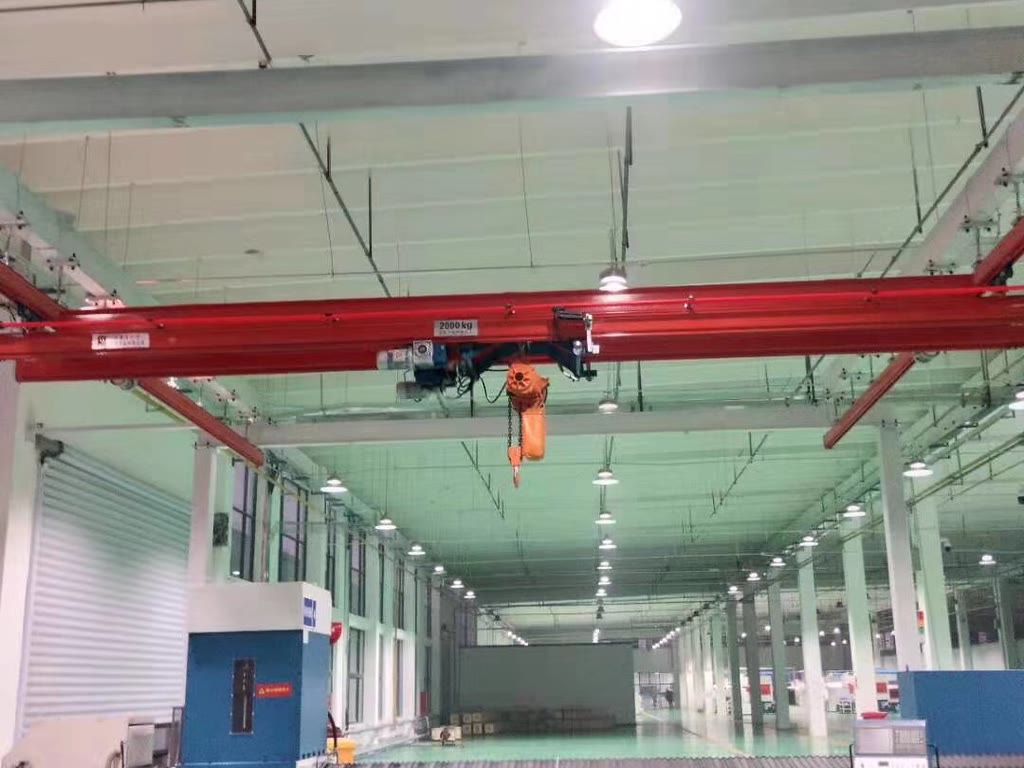

The double girder light crane system is used when a single girder cannot carry the load or cover the span. Two parallel girders are joined by end carriages and travel on enclosed tracks; the electric chain hoist sits on a trolley frame between the two girders.

Because the hoist is mounted between the girders instead of underneath, the hook can be raised higher. In workshops with a low ceiling this gains valuable lifting height compared with a single girder crane of the same capacity.

The system uses the same track profiles, suspension fittings and power supply as our single girder light cranes, so both types can run in one installation. Flexible-track systems are rated up to 2 t and rigid-track systems up to 3 t. At these top capacities the double girder design is mandatory, and we also recommend it for spans above 8.5 m.

Double girder cranes are normally supplied with electric travel. A travel drive on each side keeps the crane square to the runway, and frequency control gives a soft start and stop.

Technical Data

Item	Data
Lifting capacity	500 kg – 2 t (flexible track); up to 3 t (rigid track)
Span (track centre distance)	Up to 7.5 m as standard, longer on request
Girder length	Up to 8 m as standard
Runway length	Unlimited, extended in sections
Lifting height	Customized to workshop height

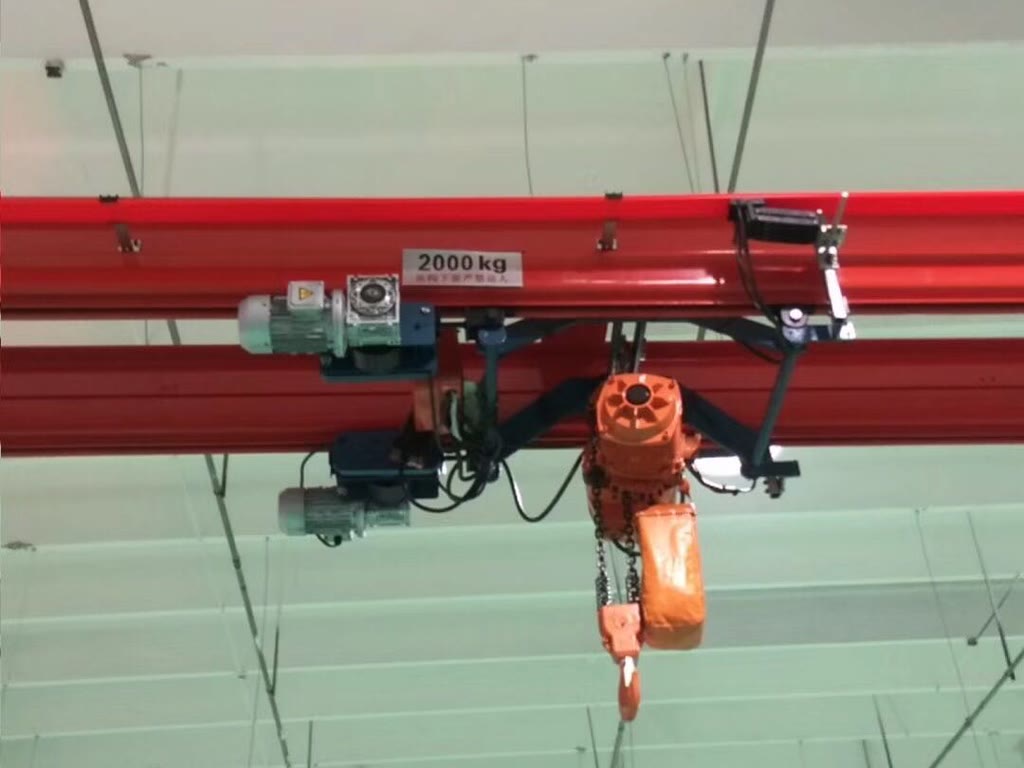

Hoist	Electric chain hoist on a double girder trolley frame
Travel	Electric 14 m/min (20 m/min and frequency control optional); manual push for light loads
Track profile	Cold-rolled enclosed steel profile, reinforced; aluminum profile optional

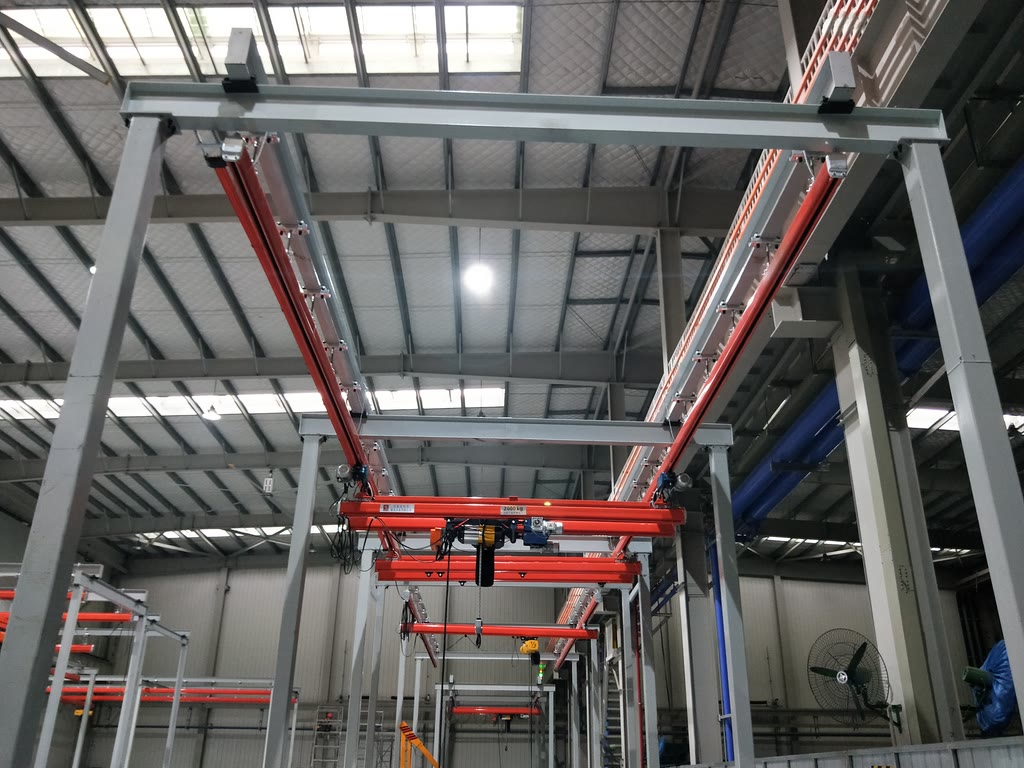

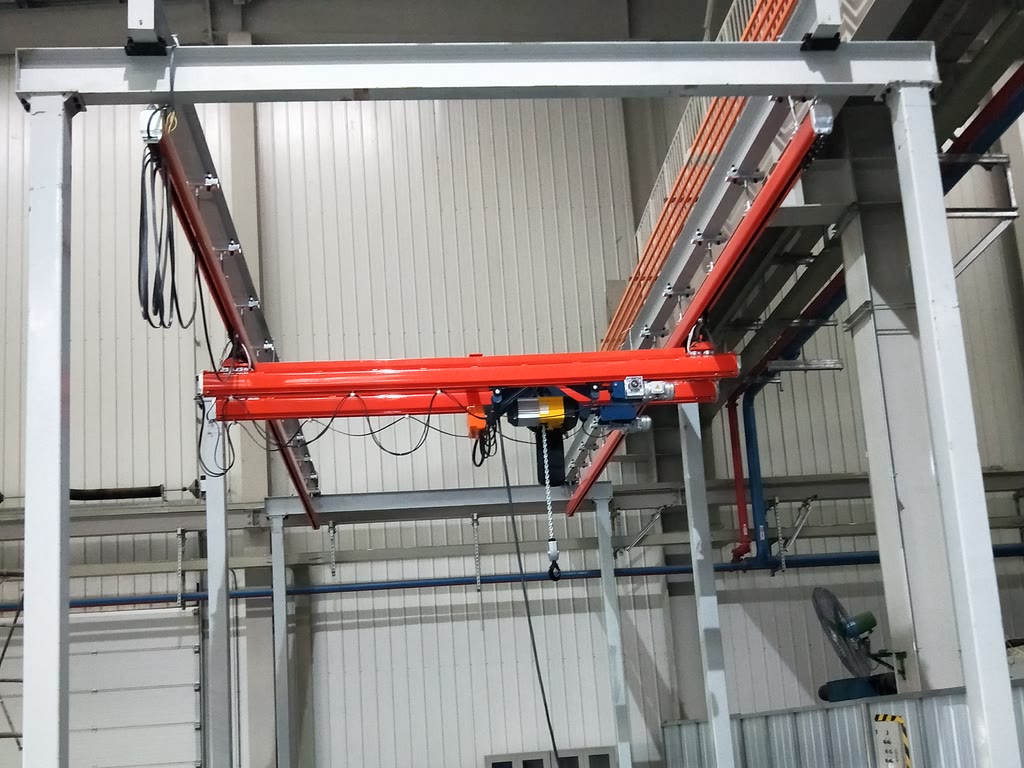

Installation	Suspended from roof structure / ceiling, or free-standing steel frame
Power supply	Festoon cable or enclosed conductor line
Control	Pendant or radio remote control
Load test	Static 1.25 x and dynamic 1.1 x rated capacity
Power source	3-phase 220-690 V, 50/60 Hz, customized

Standard configurations (can be customized)

Capacity (kg)	500	1000	2000
Max. girder length L (mm)	8000	6000	3500
Max. span LK (mm)	7500	5500	3000

Values apply to the standard flexible-track design. Rigid-track and reinforced girders allow longer spans; send us the load, span and building height for a layout.

Features

1. Higher capacity and longer span
Two reinforced girders share the load, which takes the modular light crane system up to 3 t.

2. More hook height
The hoist travels between the girders, so the hook lifts higher than on a single girder crane.

3. Runs straight
One travel drive on each end carriage prevents the crane from skewing on long girders.

4. Smooth, accurate movement
Frequency-controlled travel starts and stops gently, which protects the load and the structure.

5. Same building-block system
Tracks, suspensions and power supply are shared with the single girder and monorail versions, so an existing installation can be upgraded.

6. Tested before delivery
Static load test at 1.25 times and dynamic test at 1.1 times rated capacity.

Application

Typical uses for the double girder light crane system:

1. Assembly of engines, axles, gearboxes and other heavy components in automotive and construction machinery plants.

2. Mould and die changing on injection moulding machines and presses.

3. Loading machine tools with workpieces of 1 t and more.

4. Battery pack and electrical cabinet assembly lines.

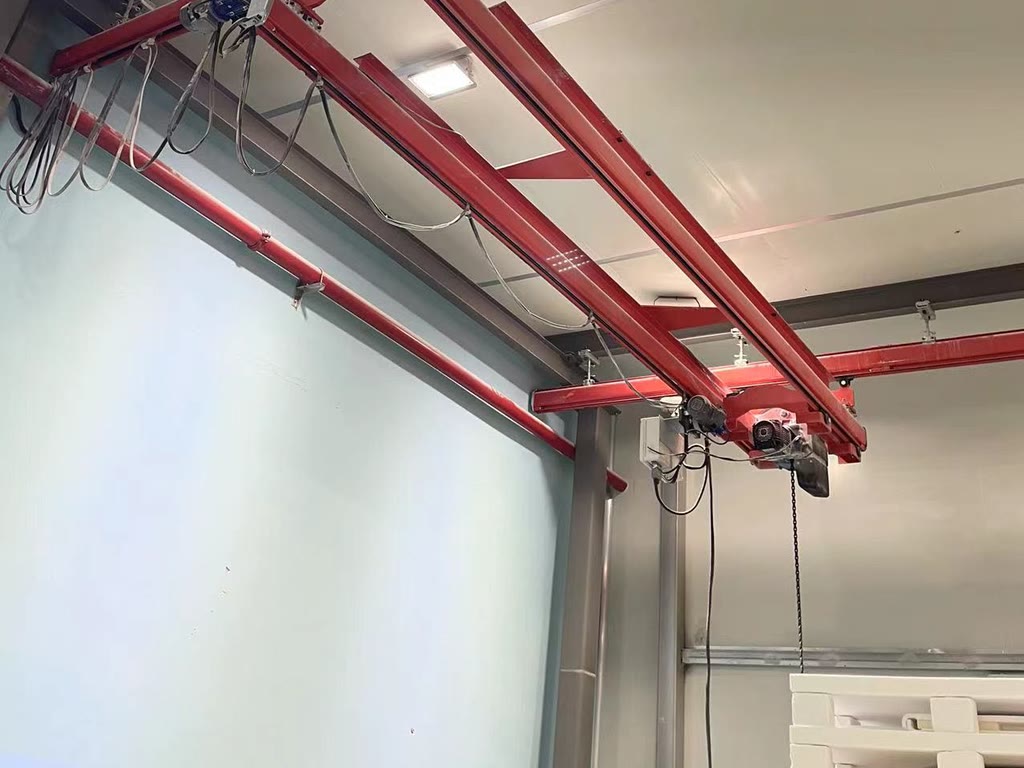

5. Low workshops where the lifting height of a single girder crane is not sufficient.
