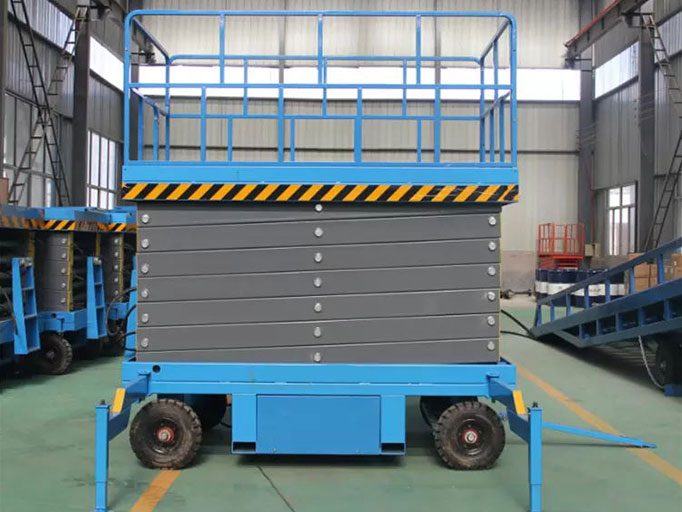

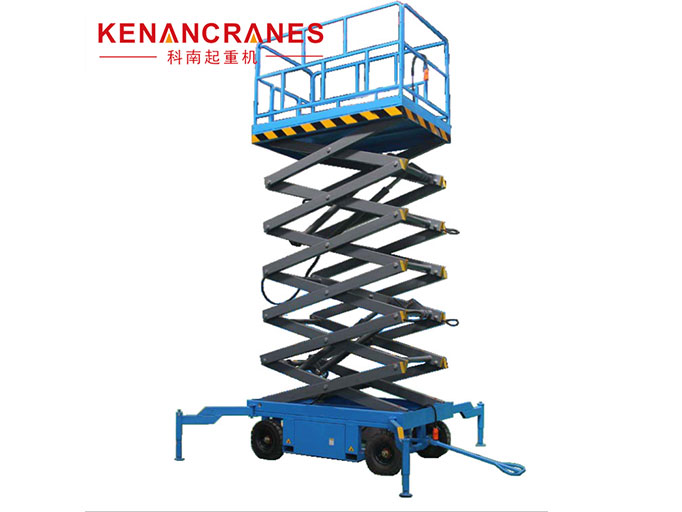

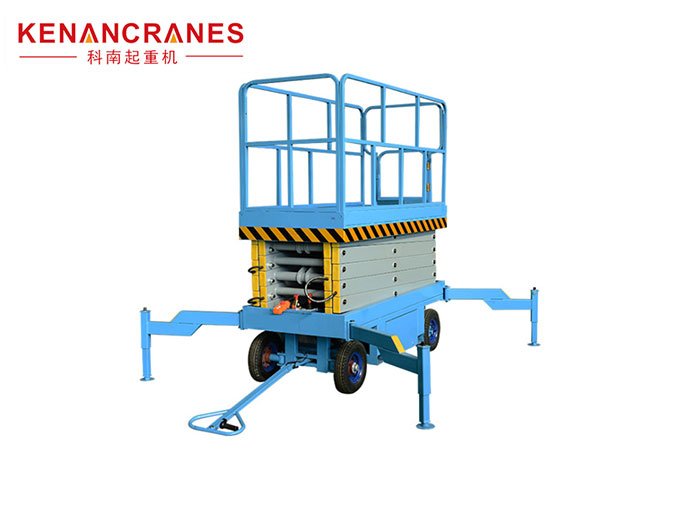

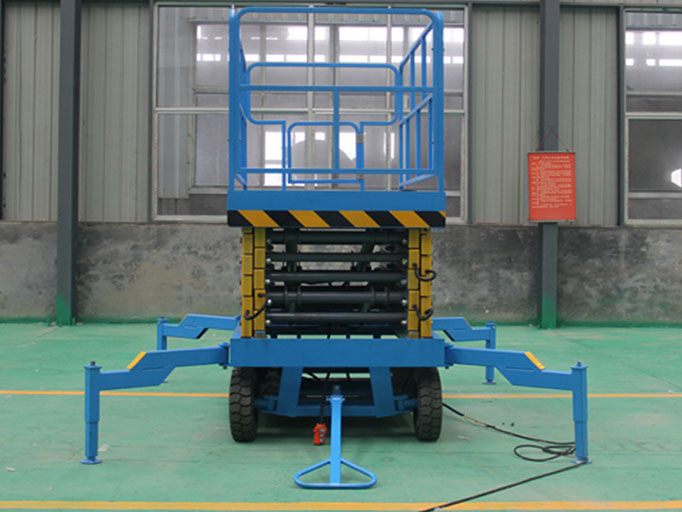

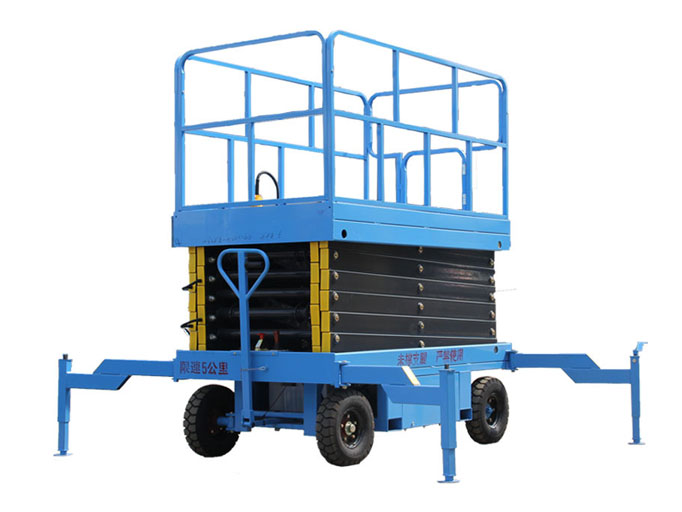

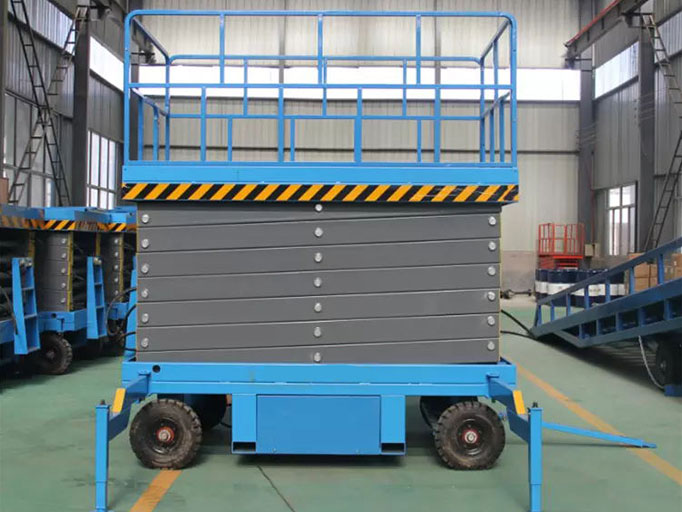

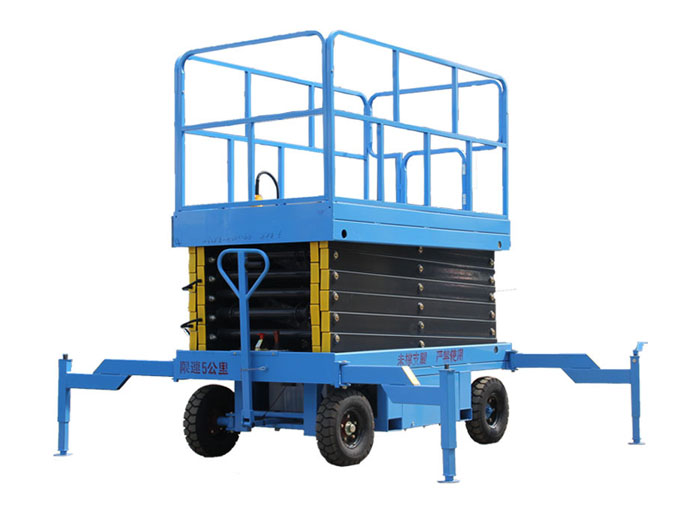

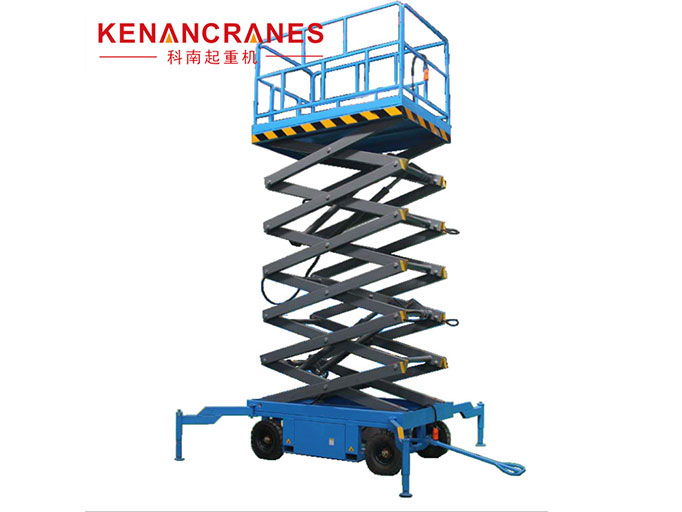

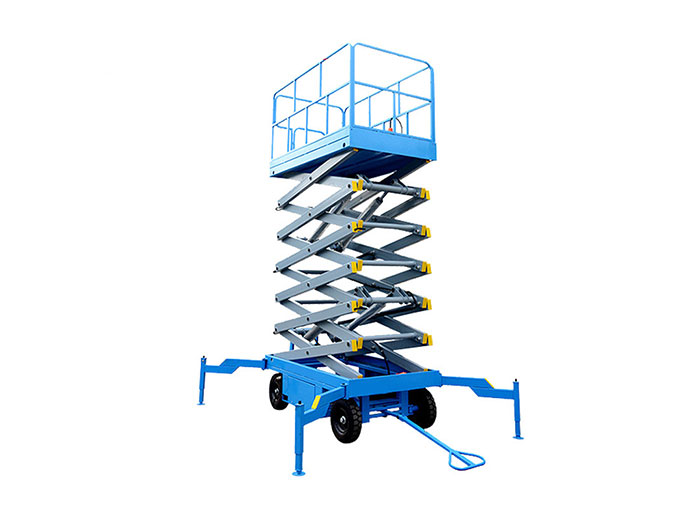

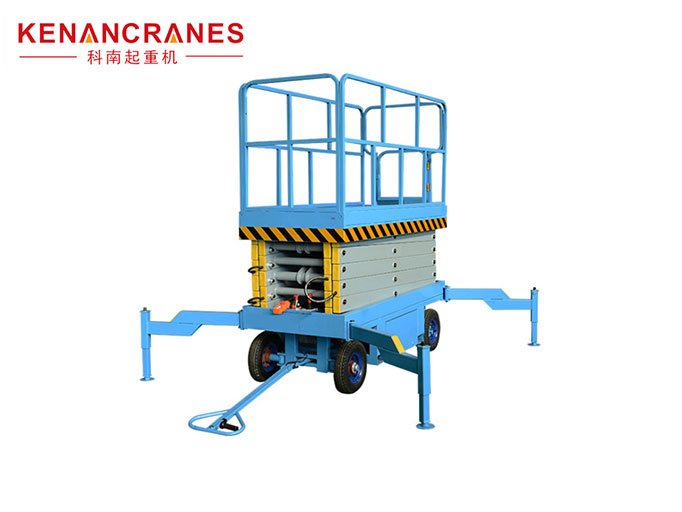

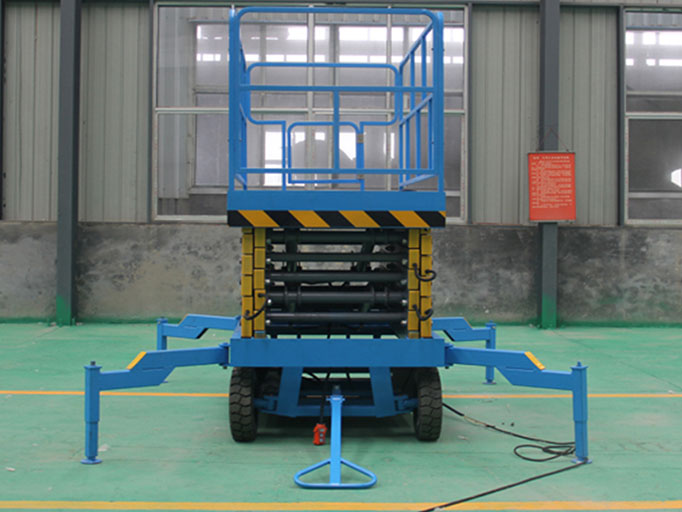

Mobile Scissor Lift Platform

Load capacity: 200kg - 2000kg

Operation height: 4-20M

Driving mode: Hydraulic Drive

Power Supply: Diesel Oil, Storage Battery, Three-phase Current

Travel Methods: Manual Push, Pull-type, Walking-assist Wheel and Vehicle-mounted Style

Applications:

Especially applied in the factory, workshop, warehouse, grain depots, stations, hotels, airports, docks, gas stations, stadiums, electric power, elevated pipelines, etc

Leave Message Chat Online

  • Description
  • Technical Data
  • Features
  • Advantages
  • FAQ

Description

The mobile scissor lifts have the lifting height ranging from 4m to 20m, and the loading capacity from 300kg to 2000kg, it has the advantage of moving easily, lifting reliability and strong loading capacity, are widely used in building site, factory, warehouse, hotel, stadium, station, airport and some other place that for high height equipment installation and maintenance.

Technical Data

Model Platform(m) Load(kg) Lifting Height(m) Dimension(mm) Dead Weight

(kg)

Guardrail

(mm)

Motor

(Power/Voltage)

SJY0.5-8 2100×930 500 8 2200×1060×1380 1050 1100 1.5KW/220V
SJY0.5-9 2100×930 500 9 2200×1060×1500 1165 1100 1.5KW/220V
SJY0,5-10 2100×1230 500 10 2200×1350×1530 1360 1100 2.2KW/380V
Q |Y0.5-11 2100×1230 500 11 2200×1400×1650 1400 1100 2.2KW/380V
SJY0.5-12 2550×1530 500 12 2720×1670×1750 2260 1100 3KW/380V
SJY0.5-14 2812×1530 500 14 3045×1730×1810 2400 1100 3KW/380V
SJY0.5-16 2812×1600 500 16 3045×1800×2080 3500 1100 3KW/380V
SJY0.5-18 3070×1600 500 18 3250×1800×2080 3900 1100 3KW/380V
SJY1.0-4 2100×1200 1000 4 2200×1350×1180 1250 1100 2.2KW/380V
SJY1.0-6 2100×1200 1000 6 2200×1350×1300 1400 1100 2.2KW/380V
SJY1.0-8 2100×1200 1000 8 2200×1350×1420 1585 1100 2.2KW/380V
SJY1.0-10 2100×1200 1000 10 2200×1350×1530 1700 1100 2.2KW/380V
SJY1.0-12 2550×1530 1000 12 2720×1670×1750 2560 1100 3KW/380V
SJY1.0-14 2812×1530 1000 14 3045×1750×1810 2765 1100 3KW/380V
SJY1.0-15 3070×1600 1000 15 3350×1910×2210 5000 1100 3KW/380V
SJY1.5-6 2100× 1530 1500 6 2200×1750×1530 1780 1100 3KW/380V
SJY1.5-8 2100×1530 1500 8 2200×1750×1690 2070 1100 3KW/380V
SJY1.5-10 2100×1530 1500 10 2200×1750×1850 2250 1100 3KW/380V
SJY1.5-12 2550×1530 1500 12 2796×1762×1850 2900 1100 3KW/380V
SJY1.5-14 2816×1600 1500 14 3045×1852×1960 3400 1100 4KW/380V
SJY2.0-6 2100×1530 2000 6 2200×1750×1530 1780 1100 3KW/380V
SJY2.0-8 2100×1530 2000 8 2200×1750×1690 2070 1100 3KW/380V
SJY2.0-10 2100×1530 2000 10 2200×1750×1850 2250 1100 3KW/380V
SJY2.0-12 2550×1600 2000 12 2796×1852×1954 3200 1100 4KW/380V
SJY2.0-14 2816×1600 2000 14 3045×1852×2230 3900 1100 4KW/380V
SJY2.0-15 3070×1600 2000 15 3350×1910×2260 5600 1100 5.5KW/380V

Features

  • Table plate bending, bottom frame and shear fork structure mountain steel custom high strength rectangular pipe;
  • Standard cold groove for rail, the use of nylon slider guide wheel, large contact surface, smooth lifting, small shaking;
  • The built-in explosion-proof valve of the hydraulic cylinder (to prevent the tubing from breaking and the platform from stalling down), the brand sealing ring is adopted, durable, no leakage;
  • Double steel mesh high pressure tubing;
  • Lift special hydraulic pump station, equipped with an emergency drop valve, the platform power can be manually controlled down, built-in relief valve, can prevent upward movement when the system pressure is too high, play the overload protection function;
  • Inflatable rubber tires;
  • Electrical circuit, contactor list connection, plus thermal overload protection, lack of phase protection and other safety protection functions;
  • Electric up and down electric control, control button box equipped with emergency stop button, to ensure property and personal safety, each operation part use 24V safety control voltage;

Advantages

  • Overload protection is provided to ensure the operation under a safe load bearing condition.
  • Lifting double limit, the platform is very stable when it rises to the highest point.
  • Operate way:manual push or assisited walking system

FAQ

1. What can you buy from us?
Scissor Lift,Scissor type lifting platform, self-propelled lifting platform, self-propelled lifting
platform, lifting table, lifting equipment, etc. we can do it with one-stop service and one-stop procurement!
2. Why should you buy from us not from other suppliers?
We are always devoted to make the first-class lift machinery and make efforts to do perfect design for customers to do lifting and aerial work. We have 15 years of experience in design and development.
3. Please imform us your detailed needs for right solution and price
a. What platform height do you need?
b. How much platform load is need for you?
c. Do you prefer hydraulic drive or electric drive?
d. How many would you like to order?
e. Which port shall we ship the goods to?
