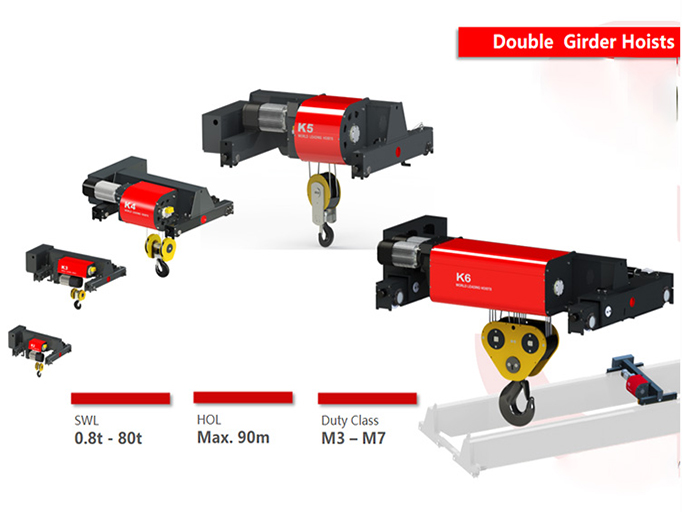

European Wire Rope Hoist Electric Trolley

Electric Hoist Series

This series of hoist are mainly used for long-distance drawing and lifting of various large and super large concrete, steel structures and cables. The maximum load can reach 80ton, the lifting height is 90 meters, and it is equipped with safety detector.

  • European Hoist Type: Wire rope hoist electric trolley
  • Lifting Capacity: 1~20t or customized
  • Lifting Height: 6~18m or customized
  • Working Class: M3-M6
  • Ambient Temperature: -20~+40℃

Applications:

Suitable for the installation of various bridges, port and wharf projects, large-scale bridges and large-scale factory buildings, and electrical engineering equipment.

Leave Message Chat Online

  • Description
  • Technical Data
  • Product Details
  • Advantages
  • Product Application

Description

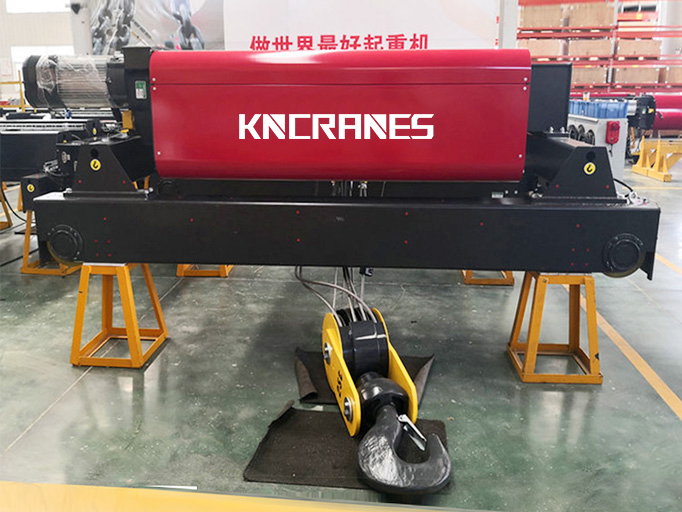

Kinocranes wire rope hoist electric trolley maximum load can reach 80 ton, the lifting height is 90 meters, and it is equipped with safety detector.

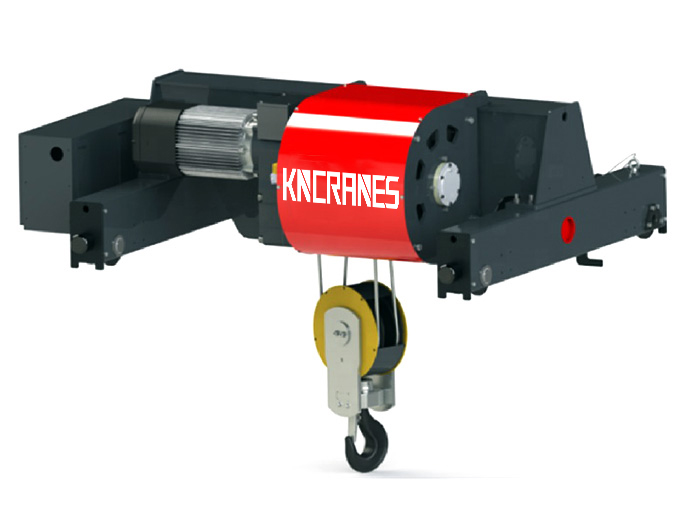

Hoisting trolley is composed of the trolley end beam, the load-bearing beam, and the hoisting module. The hoisting module includes a hoisting motor, a reducer, a brake, and a reel with a four-in-one unique integrated structure.

Its characteristic is that the lifting rope speed is constant and the lifting is stable.

It is suitable for the installation of various bridges, port and wharf projects, large-scale bridges and large-scale factory buildings, and electrical engineering equipment.

Technical Data

Capacity(t) Lifting Height(m) Lifting Speed(m/min) Traveling Speed(m/min) Max.Wheel Load(kn) Total Power(kw) Dead Weight(kg)
10 6

5/0.38

Double

Speed



20/5VVVF

Double

Speed

8.5 3.84 363
9 8.7 379
12 9 395
15 9.2 411
18 9.4 424
15 6 5/0.38

Double

Speed

20/5VVVF

Double

Speed

13.5 5.54 468
9 13.7 502
12 13.8 535
15 14 569
18 14.2 636
20 6 5/0.38

Double

Speed

20/5VVVF

Double

Speed

26.3 10.46 562
9 26.5 601
12 26.8 637
15 27.2 675
18 27.5 711

Product Details

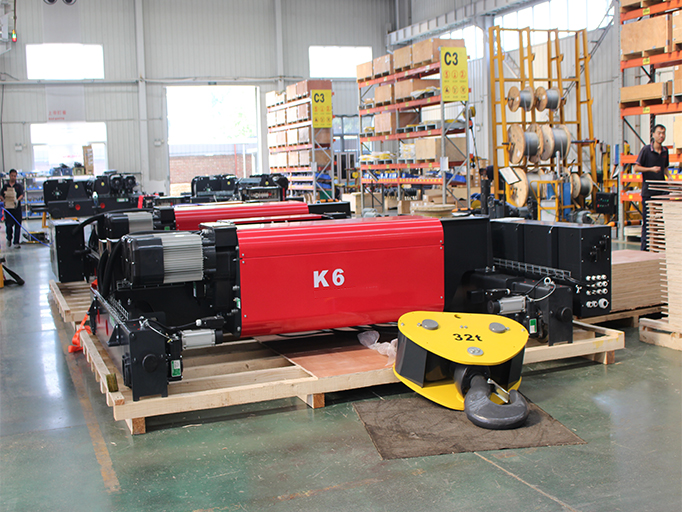

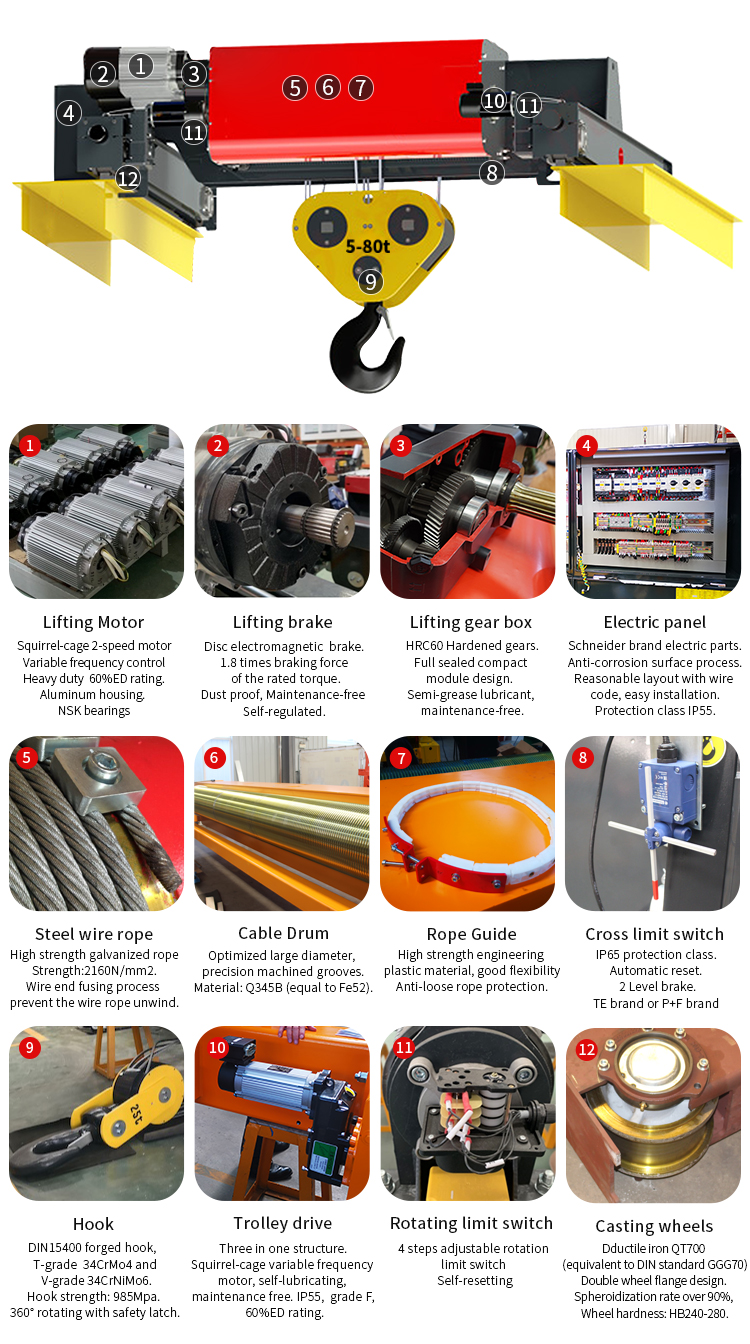

Wire Rope Hoist Electric Trolley

Advantages

  • Optimized design in line with FEM standards.
  • The overload protection function is usually set, 100% overload alarm, 110% overload can drop but not rise, 125% overload automatically stops.
  • Equipped with an intelligent safe operation monitoring system, which can continuously record the working status and prevent non-professional operation.
  • The controller will perform a self-check before starting, including the power supply voltage level, default phase, button zero state and the validity of each safety device.
  • The three-point support statically determinate structure reduces internal stress, and the side-mounted reducer and cantilever motor form a flexible drive system to ensure stable operation and low noise.
  • Imported motor, aluminum alloy wire drawing, good heat dissipation, overheating protection and alarm function.
  • The whole machine is maintenance-free design, with few wearing parts and convenient maintenance.

Product Application

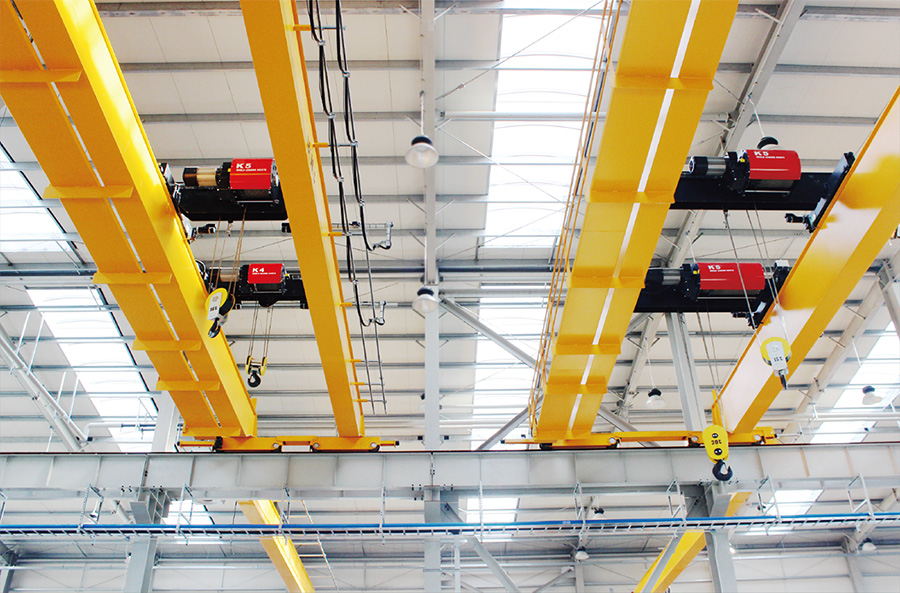

Wire Rope Hoist Electric Trolley
