Electric Winch Trolley

Electric winch

  • SWL( t ): 5t - 500t
  • HOL( m ): Max.160 m
  • Work Duty: M3-M8
Applications:

Mainly used in construction, water conservancy projects, forestry, mines, docks, etc. for material lifting or flat towing

Leave Message Chat Online

  • Description
  • Products details
  • Features
  • Technical Parameter

Description

Electric winch is used to complete traction drive with human power or mechanical power via a reel, which can handle heavy materials or loads vertically or horizontally or obliquely. The electric winch has the features, such as, generality, compact structure with small volume, light dead weight, large lifting capacity and convenient to move, etc.

Kinocranes electric winch shop mainly offering you the Engineering / construction winch, Marine Winch and Mine Winch with the capacity of 1-800 ton, which can be customize to you application environment.Custom electric winch with custom voltages, 110V, 120V, 240V are at your selection.

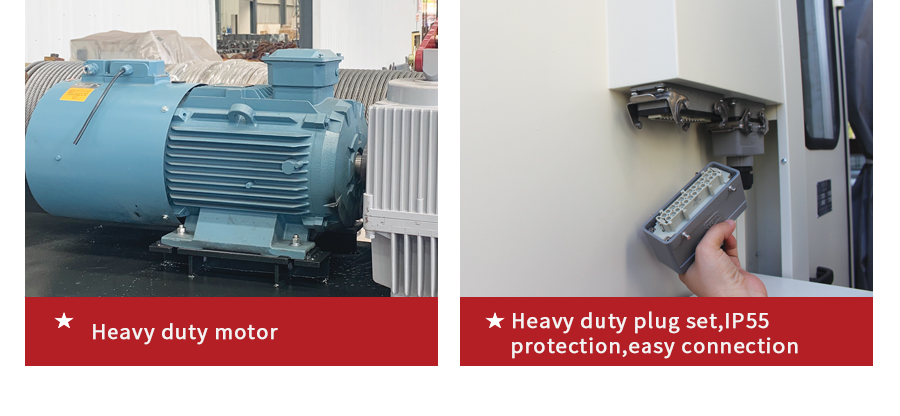

Products details

Features

  • An electric winch is usually consisted of the following winch parts: coupling, brake, gear box, reel, and all the parts of a winch are installed on the electric winch machine frame for material handling.
  • Electric winch has a good speed regulation, which can lift heavy loads up to a high place at relative fast speed and make an empty hook down swiftly while for sensitive materials, the electric winch can run at a relatively slow speed.
  • How does the electric winch work? Generally, electric winch transforms electric power into mechanical power through winch motor, where the rotor of motor runs and produces the power which is outputted and then goes through the brake, and the reducer reduces the speed to rotate the reel. The reel winds the wire rope and passes through pulley block to make the hook lift the load, and transforms mechanical energy into mechanical work for material handling, such as, the transportation, load and unload of heavy weights.
  • Usually, the power of electric winch can be produced according to requirements to meet the application voltages. Kinocranes electric winch shop is able to provide you electric winches with the following voltages, such as, 110v winch, and 120 winch, and other custom voltage winches.

Technical Parameter

Model
Hook type
Power
Load capacity
Lift speed
Lift height
Net weight
300/600
Single-hook
0.6kw
300kg
14m/min
30m to 60m
32kg
Double-hook
0.6kw
600kg
7m/min
30m to 60m
32kg
400/800
Single-hook
1.8kw
400kg
12m/min
30m to 60m
38kg
Double-hook
1.8kw
800kg
6m/min
30m to 60m
38kg
500/1000
Single-hook
1.5kw
500kg
12m/min
30m to 100m
50kg
Double-hook
1.5kw
1000kg
6m/min
30m to 100m
50kg
750/1500
Single-hook
2.0kw
750kg
16m/min
30m to 100m
65kg
Double-hook
2.0kw
1500kg
8m/min
30m to 100m
65kg
1000/2000
Single-hook
3.0kw
1000kg
16m/min
30m to 100m
120kg
Double-hook
3.0kw
2000kg
8m/min
30m to 100m
120kg
