FEM Standards Single Girder Overhead Crane

  • Capacity: 1~20 tons
  • Lift height: Max. 90 m
  • Span: 7.5~40m
  • Work duty: M3~M6
  • Protection class: IP54/IP55
  • Working temperature: -20~+60℃

Mining, metallurgy, construction, chemical, cement, refractory material, ceramics, etc.

Leave Message Chat Online

  • Description
  • Features
  • Technical data
  • Customized
  • Applications


Kinocranes FEM standards single girder overhead crane is light duty overhead crane for infrequent use or light service, the load capacity from 1 ton to 20 ton. Common specifications are 1 ton, 2 ton, 3 ton, 4 ton, 5 ton, 8 ton, 10 ton, 15 ton, 20 ton bridge cranes. Light duty overhead cranes are strictly fabricated in accordance with DIN, FEM, ISO standards. The production and inspection process are strictly following European standard.

Light duty overhead cranes have one main girder with 1 or 2 electric wire ripe hoists. The duty group of this type cranes are FEM 2m, This type bridge cranes is much suitable for light industrial applications. such as the installation and maintenance of equipment in power stations or other workplaces, or workshops and warehouses where work is not frequent.

According to your actual usage, there are different light duty overhead cranes for clients selecting. We have experienced crane engineers to help you design the best possible overhead crane system for your facility, and also provide a full range of after-sales services, so that your crane can run quickly, stably and reliably.

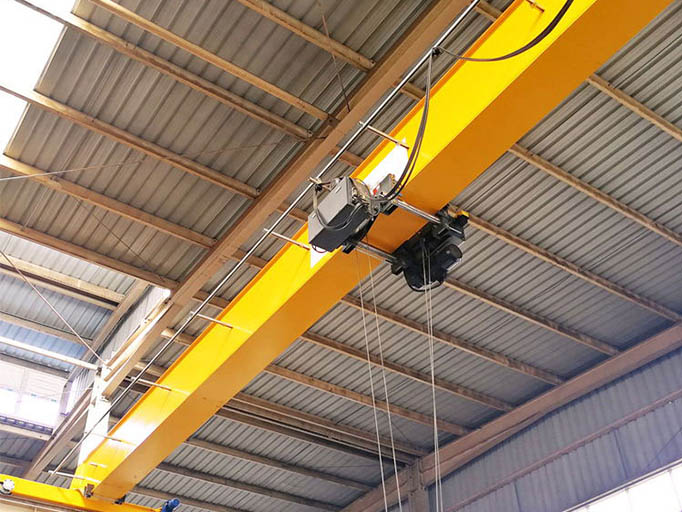

light overhead crane

  • Low headroom
  • Smart driving, higher efficiency
  • Stepless control trolley
  • Hardened gear
  • IP55 Protection, F/ H Insulation
  • Heavy duty motor, 60%ED rating
  • Over heating, Overloading protect
  • Electromagnetic disk brake
  • Super drum, longer rope lifetime
  • DIN 34CrMo4 hook, Class T
  • Maintenance free

Technical data

FEM standard provides specific requirements for the design and construction of single girder overhead cranes. The main components of single girder overhead crane include the bridge girder, end beam, lifting hoist, and electrical system (As shown in the picture).

5 ton Single Girder Overhead Crane Specification

SWL: 5t Class: A5

Basic Data Span 7.5m 10.5m 13.5m 16.5m 19.5m 22.5m 25.5m 28.5m
Crane Weight 1.56t 2.01t 2.82t 3.69t 4.77t 5.77t 6.81t 8.9t
Trolley Weight 0.35t 0.35t 0.35t 0.35t 0.35t 0.33t 0.33t 0.33t
Max. Wheel Load 27.5kN 29.6kN 32.4kN 34.7kN 37.4kN 39.8kN 42.4kN 47.7kN
Min. Wheel Load 5.2kN 5.6kN 6.9kN 8.8kN 11.3kN 13.8kN 16.2kN 21.1kN
Crane Rail P22 P22 P22 P22 P22 P22 P22 P22
Speed Lifting Speed 5/0.83m/min
Trolley Speed 0 – 20m/min
Bridge Speed 0 – 20m/min
Motor Power Lifting Motor (kW) 4.5/0.7 4.5/0.7 4.5/0.7 4.5/0.7 4.5/0.7 4.5/0.7 4.5/0.7 4.5/0.7
Trolley Motor (kW) 0.45 x 1 0.45 x 1 0.45 x 1 0.45 x 1 0.45 x 1 0.45 x 1 0.45 x 1
Bridge Motor (kW) 0.37×2 0.45×2 0.45×2 0.45×2 0.65×2 0.65×2 0.65×2 1.1 x 2
Crane Power 5.69 5.85 5.85 6.25 6.25 6.25 7.2


Custom Lifting Solutions: Tailored Cranes with Quality Assurance

At Kinocranes manufacturing company, we specialize in providing custom lifting solutions that meet our clients’ specific requirements. We offer the flexibility to use designated motor, reducer, bearing, and other brands requested by our customers. With our extensive experience in non-standard customization, we provide modular designs that can adapt to various needs while ensuring a firm structure and standardized production. We prioritize the use of world-renowned and China’s top-rated brands, including ABB/SEW/Siemens/Jiamusi/Xindali motors, SEW/Dongly gearbox, and FAG/SKF/NSK/LYC/HRB bearings, for the crane’s main components. Each item holds CE/ISO certificates, ensuring reliable and high-quality performance.

Comprehensive After-Sales Services

Kinocranes provide comprehensive after-sales services, including on-site installation, crane maintenance, and spare parts services. With our expertise, we ensure that your bridge crane runs smoothly and efficiently long after its initial installation.

Cost-saving For Our Customer

The Overhead Crane transport costs are high, with the cross girder being the most significant expense. To address this, two crane sale plans have been introduced: Complete and Component. A Complete Overhead Crane is a fully assembled crane that includes all necessary components, while a Component Overhead Crane includes all parts except for the cross girder, which the buyer must provide, and kinocranes can proviede production drawing. Both plans offer the same quality, but the Component plan saves on transport costs by requiring the buyer to construct the cross girder locally.


1-20 ton light overhead crane is widely used on different occasions, such as engineering shop, machining shops, dies &tools & moulds assembly workshop, automobile manufacturing workshop, power stations, paper mills shop, metallurgical workshops, etc. If overhead cranes or wire rope hoists are used in flammable and explosive corrosive media environments, the users shall clarify the specific use environment in advance.

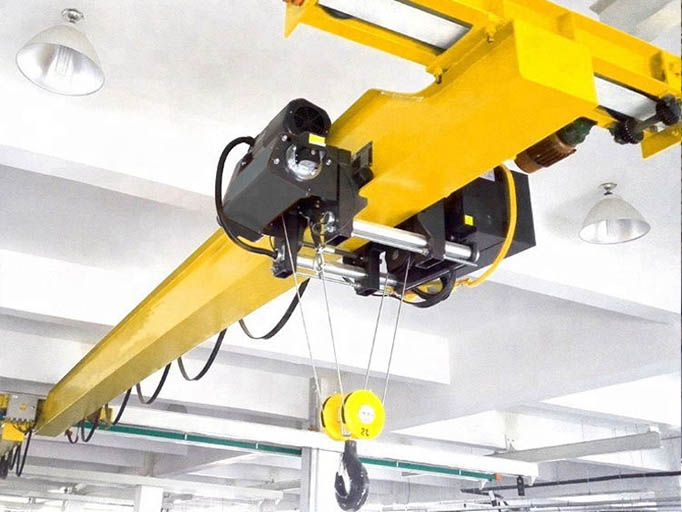

light overhead crane

Are you looking for a trustworthy and experienced crane manufacturer to provide custom lifting solutions that meet your specific requirements? Our company specializes in designing and producing high-quality cranes with modular designs that can adapt to various needs.

With our use of top-rated brands for crane components and comprehensive after-sales services, we are dedicated to ensuring that your crane runs smoothly and efficiently long after its initial installation. Contact us today to learn more about how we can help you elevate your lifting needs and provide a reliable custom solution.
