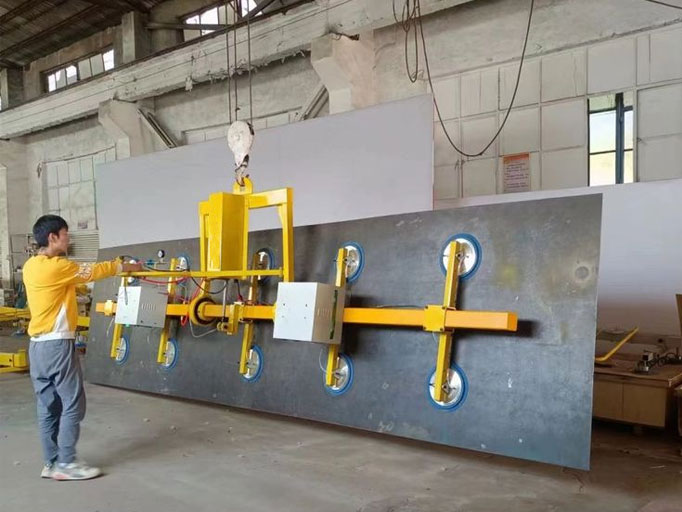

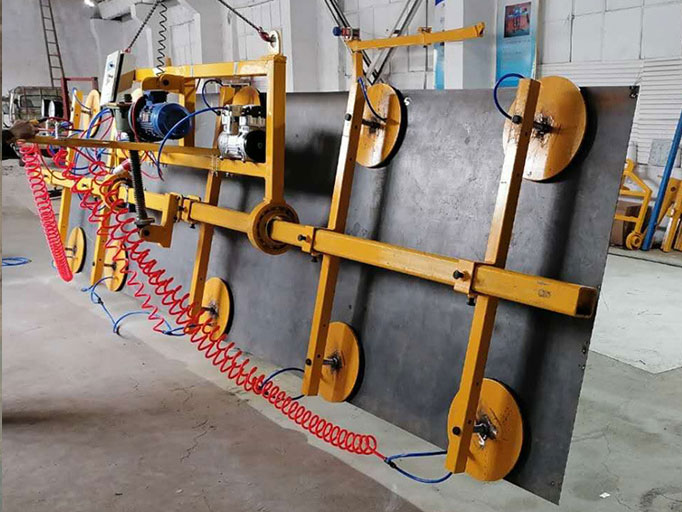

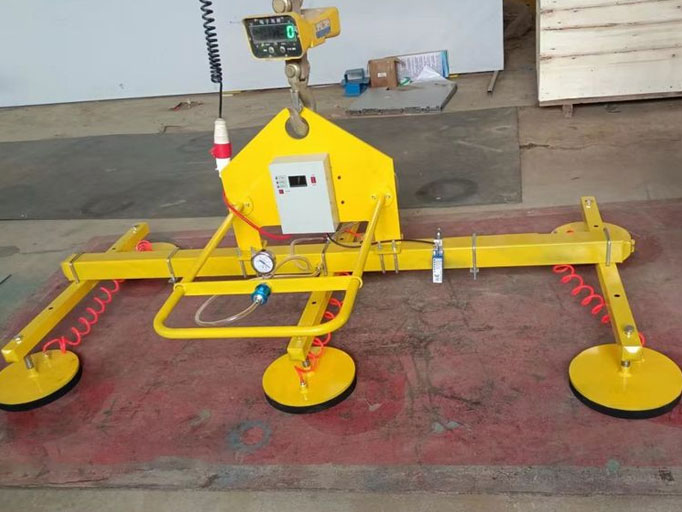

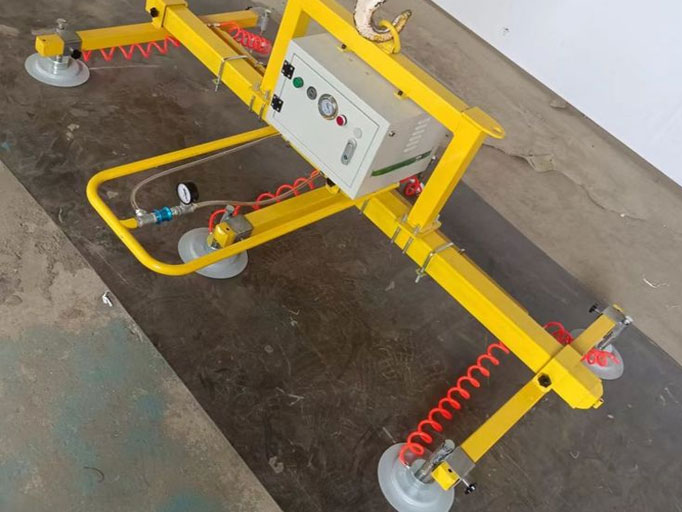

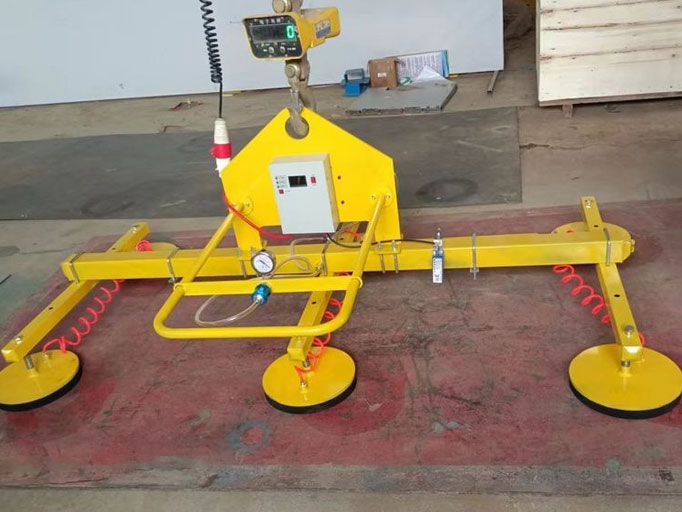

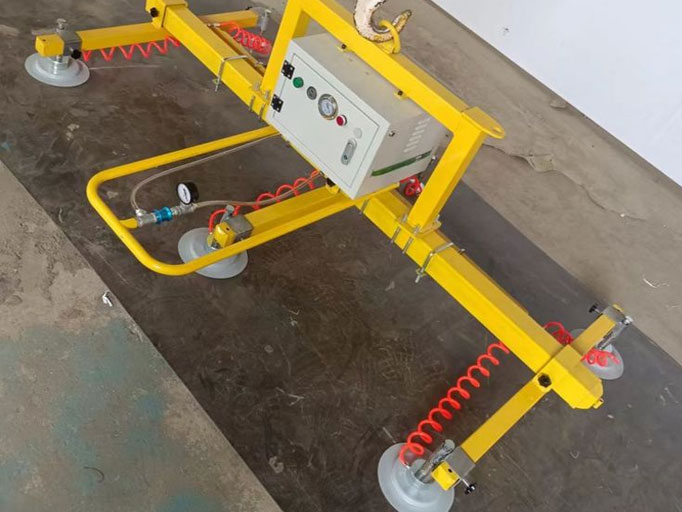

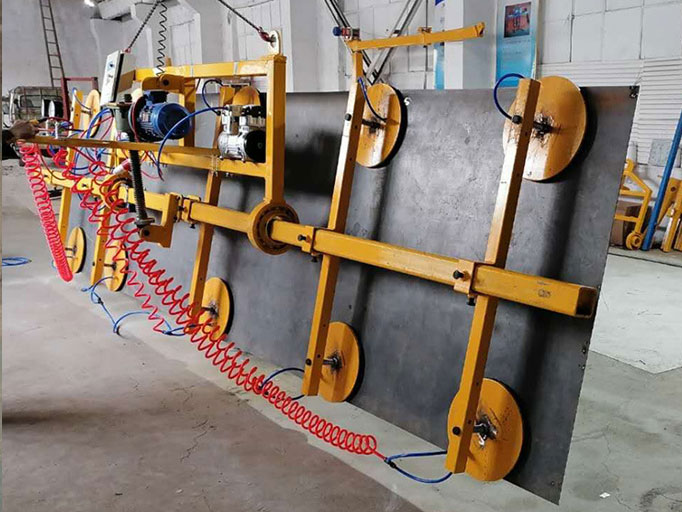

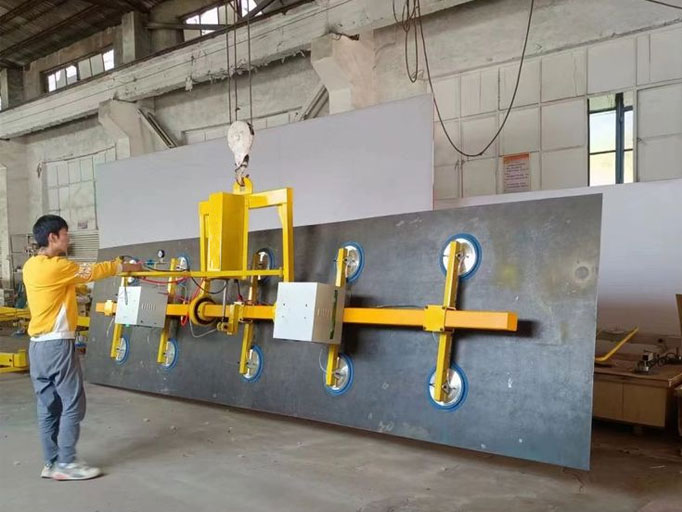

Sheet Metal Vacuum Lifters

Vacuum: Vacuum Generator / Nozzle / Ejector
Lift: Air Cylinder, Pneumatically
Safety: Low Vacuum Alarm
Movements: 90 Degree Tilting, Pneumatically

Applications:

suitable for sheet metal, stainless steel, aluminum and non-ferrous materials, and is also used to speed up working time and reduce costs due to load handling.

Description
Technical Data
Features

Description

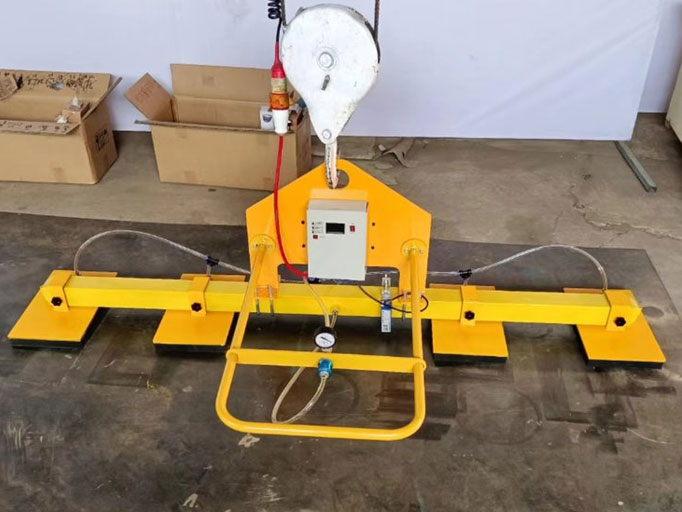

Kino vacuum lifters is suitable for sheet metal, stainless steel, aluminum and non-ferrous materials, which is equipped with a series of vacuum monitoring systems to ensure maximum safety. The sucker unit of the Kino vacuum lifter has a strong but simultaneously compact and slender structure.

Technical Data

Working Load	500 kg – 3000 kg
Max. Sheet Size	Depend on the glass thickness up to 15000mm*3200mm
Factor of Safety	2.5
No. & Size of Cups	8 – 36 pads; 250mm/300mm diameter
Suction Cup	Round shape, silicone material, with spring base
Structure	Rectangular, steel material; ergonomic design
Power Supply	DC Battery-group / AC Electricity / Dual Power (AC for main, DC for backup)
Noise Level	< 60 Db
Vacuum Holding time	About 20 minutes after power loss, depend on the lifting materials
Vacuum & Gripping	Suction cups in vacuum state by vacuum pump in dual-circuit system with energy saving function
Movements	Depend on the device and customers’ requirement Rotating: 0°-360° manually / electrically Tilting: 0°-90°manually / electrically
Lifting/Lowering	By the hoist of the crane
Safety Protection	Closed vacuum circuit with non-return valve Vacuum compensation system Low vacuum alarm
Control Method	Cable or radio remote control

Features

1. Used for handling and transporting large and heavy metal sheet in the factory and construction sites.

2. Electrical gripping device use suction cups and vacuum system to achieve plates suction and release.

3. Optional powers with DC battery-group, AC electricity, or dual power (AC main power, DC backup).

4. Adjustable suction frame and spring-based suction cups to meet different sizes of metal plates.

5. The low vacuum alarm function with sound and light signal will beep to remind the operator to pay attention when vacuum is insufficient.

6. Integrated energy saving system function to reduce pump running times and to increase operating times of the device.

7. Vacuum compensation function to assure the working stability and safety.

8. The device structure can be designed and produced as per plate dimension, and extension arms are for options.

9. Cable and radio remote controls are for options.
