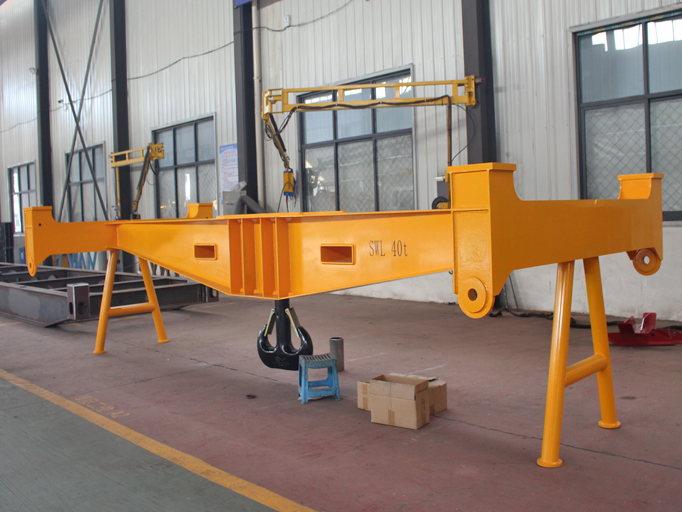

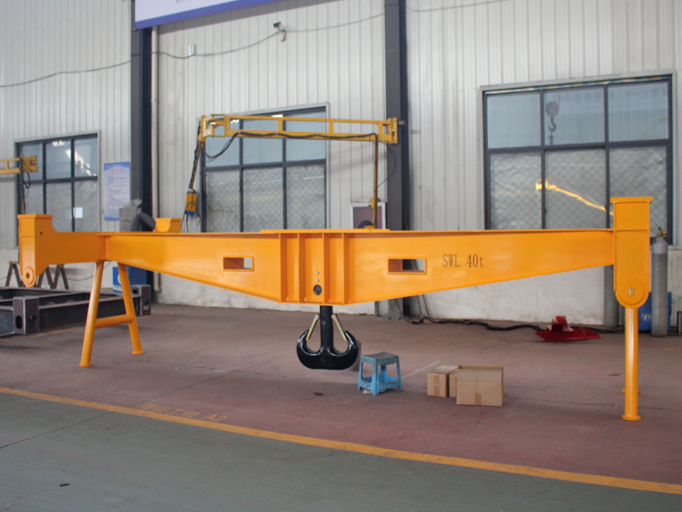

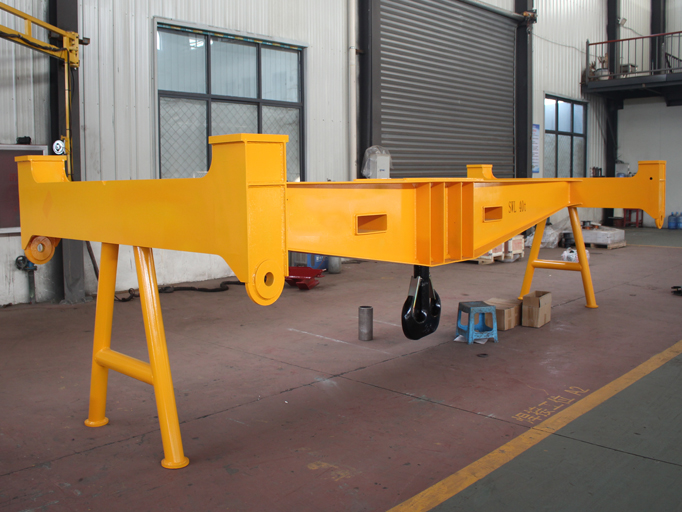

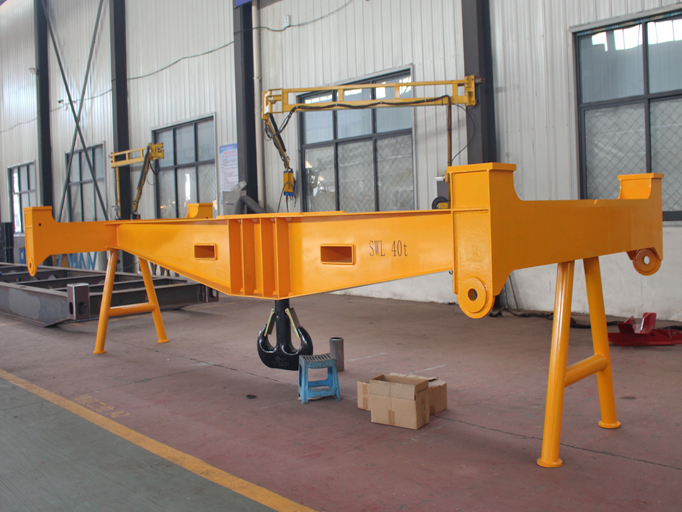

Cargo Beam with Hook

Model: MHB80
Rated Load Capacity: 50-80 tons
Self-Weight: 2.7 tons
Compatible with: RTG cranes, RMG cranes
Connection to Crane: Via clevis or pin joints

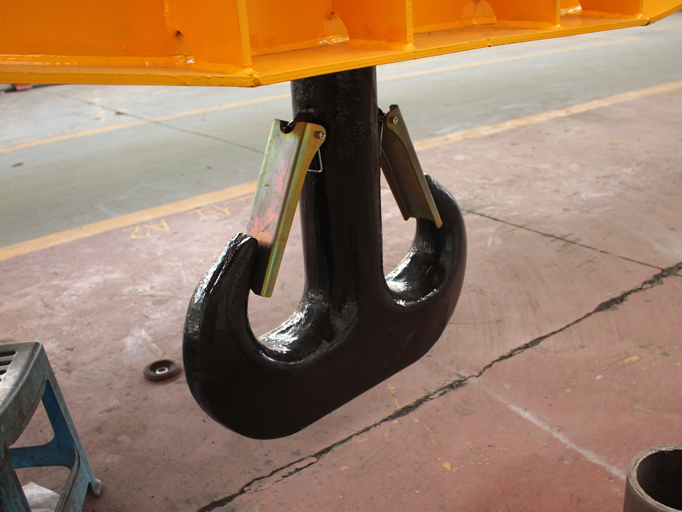

Hook Type: Manually selectable rings for versatile lifting options

Applications:

Ideal for ports, construction sites, and industrial environments,

Description
Technical Data
Features

Description

The Cargo Beam offers a robust solution for operation with bulk cargo. Designed to accommodate a wide range of lifting scenarios, this cargo beam is suitable for use with various cranes including RTG and RMG cranes. Its substantial load capacity of 50-80 tons combined with a manageable self-weight of 2.7 tons makes it an asset for any heavy-duty operation. The MHB80 model ensures a secure connection to the host machine through either clevis or pin joints, providing flexibility and safety in all lifting tasks. The hook design allows for manual selection of rings, adapting to different cargo types and sizes, streamlining your operations.

Technical Data

Model	MHB80
Pre-treatment of steel	Blasting, protective painting
Application	For operation with bulk cargo
Rated Lifting Load	50~80T
Self-weight	2.7t
Painting of structures	Two coats of Epoxy zinc-rich primer, one coat of middle paint, two coats of chlorinated rubber facings, Minimum film thickness: 220 microns
