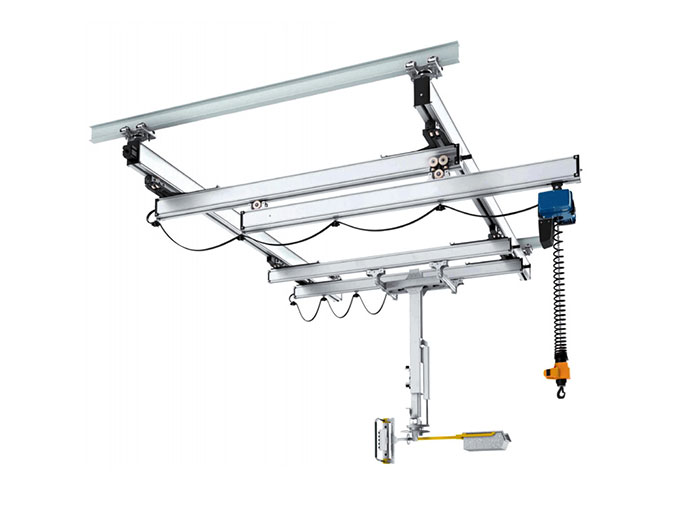

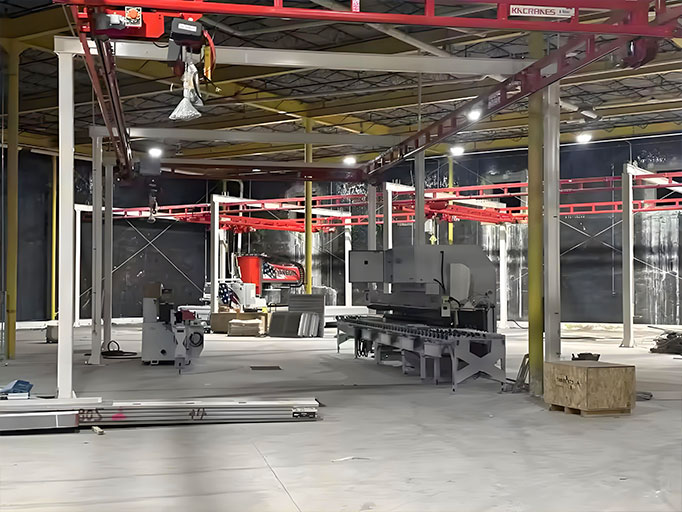

Free standing bridge crane (overhead crane) is a kind of crane with workshop station configuration, which is composed of electric hoist of column, main beam and rail and hanging parts, which can solve the problem of material handling.

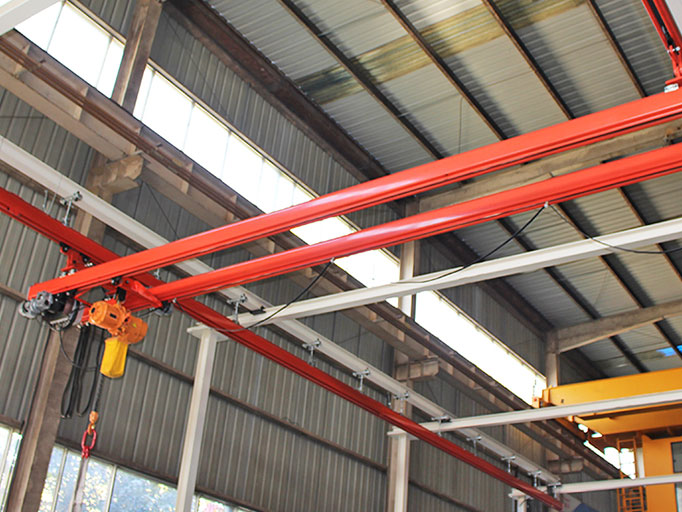

Free standing overhead crane (workstations bridge crane) is mainly composed of rails, suspension devices, walking trolleys, lifting devices and some functional components. All modules are standard components and can be freely assembled according to the needs of the workshop.

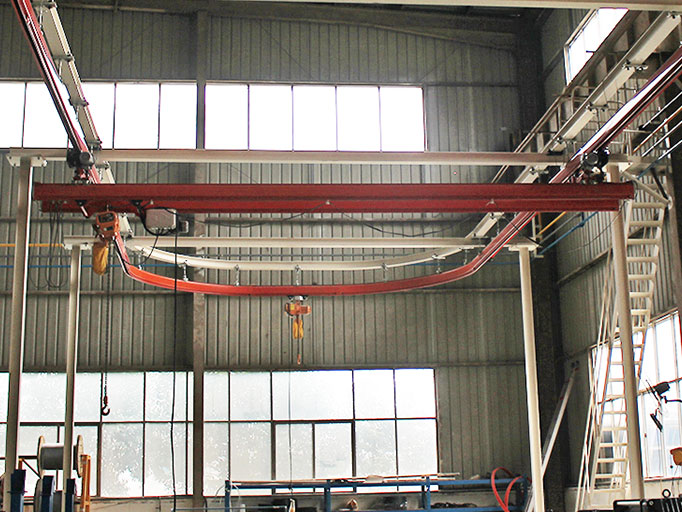

The workstations bridge crane track is a closed track, with straight track and curved track, divided into Ω type or C type, and the materials commonly used are carbon steel, stainless steel and aluminum alloy. Because it is a standard component, it can be assembled into any structure such as long and short single track, multi-track, curved track or circular track.
The suspension device is generally installed on the lower edge of the I-beam/H-beam or on the concrete beam. It has a certain self-locking function and is easy and reliable to install.
Customized is acceptable
1. Good reliability and high stability;
The components of the light crane system are all standard modules, which can guarantee high-volume, high-quality production, so the system is very reliable; the main body of the system module is three types of cold-rolled profiles, which have high strength, good rigidity, and low self-weight. The stability of the system.
he Combined crane system can flexibly design and install a crane system according to the needs of each station in the factory. From fixed point delivery to high-precision multi-point and multi-beat automated conveyor lines, they can be combined at will. It can be used in newly designed workshops, and can also be used to transform or extend old systems.
3. Easy to install, cost-effective;
The installation and commissioning of the Combined crane system is very convenient. The profiles and the standard modules can be used only by bolting, which can save the space and area of the factory, greatly reduce human resources, improve production efficiency, thereby reducing energy consumption and improving corporate profits . The system can be operated manually or automatically or semi-automatically, with high efficiency.
Generally applicable to: automotive industry, new energy, photovoltaic industry, machining, component assembly and other fields;
1. Suitable for positioning and installation work scenarios: CNC lathe machining, hole-to-hole installation, differential/marine engine assembly
2. Suitable for door welding, etc. Suitable for frequent handling scenarios: speaker packaging on and off line, compressors, molds, furniture, tire building machines, motor handling, etc.
3. Suitable for hoisting scenarios of fragile and precision precious workpieces: ceramics, glass processing, new energy batteries, parts machining, etc.
4. Suitable for high-risk operation scenarios: engine rotor assembly, automobile transmission shaft handling, wind power bearing processing, etc.

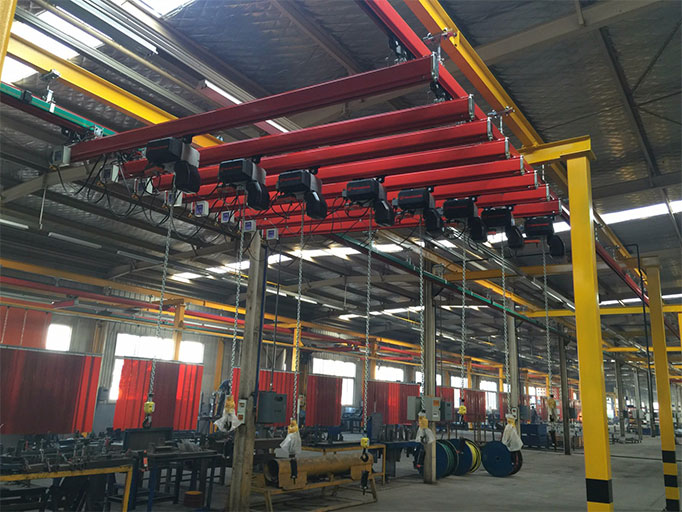

5. The combined crane can be suspended on multiple tracks to cover a larger storage and production area, and the crane can be easily moved by hand.
The entire garbage crane is designed with A8 extra heavy duty according to the actual operating conditions. According to the working environment, humanized design, anti-corrosion design are added and foreign advanced technologies are absorbed and optimized.
