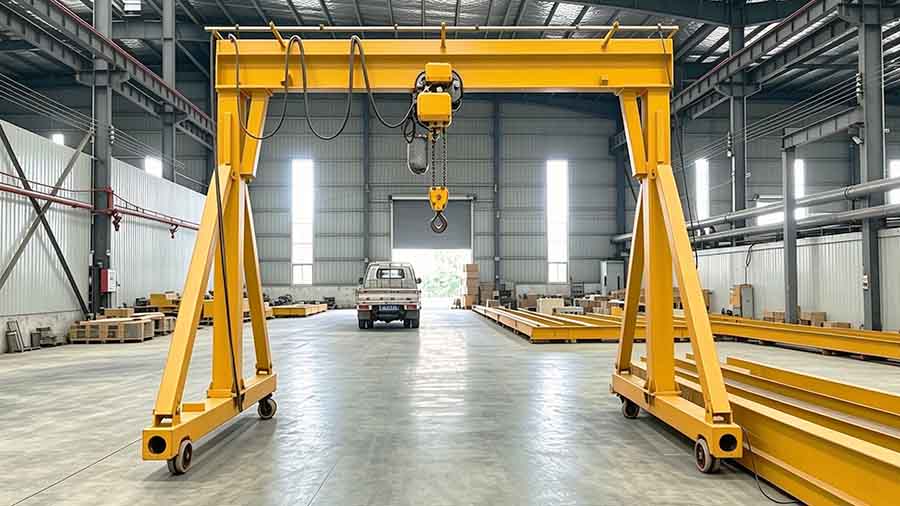

In June 2025, Kinocranes completed the delivery of a custom-engineered 5 Ton Electric Portable Gantry Crane to a trading company in Venezuela. The project was developed for general material handling and reflects a practical balance between lifting capacity, compact dimensions, reliable control, and cost-conscious procurement. It also demonstrates Kinocranes's ability to adapt a standard crane concept to a customer's working conditions.
Project Background and Requirements
The client, operating in Venezuela's trading sector, required an electric portable gantry crane for general material handling. The requested 5T capacity, 4m span, and 2.5m lifting height defined the main working envelope, while the control arrangement needed to support straightforward operation in day-to-day handling tasks. As a trading company, the client was also looking for high product quality at a competitive price. After evaluating multiple suppliers, they chose Kinocranes for its engineering experience and ability to coordinate the complete supply solution.
Technical Specifications
The delivered Electric Portable Gantry Crane features the following key specifications. The configuration was kept focused on the client's stated lifting range and operating needs, while the selected components provide a clear basis for future inspection and maintenance:
Model
5 Ton Electric Portable Gantry Crane
Capacity
5T
Span
4m
Lifting Height
2.5m
Working Class
ISO M5/FEM 2M
Hoist
Double Chain Trolley Type
Power
415V 50Hz 3P
Hoist Speed
2.7m/min
Gantry Travel
10m/min
Trolley Travel
11m/min
Control
Pendant + Remote
Electrical
Schneider
Key Engineering Features

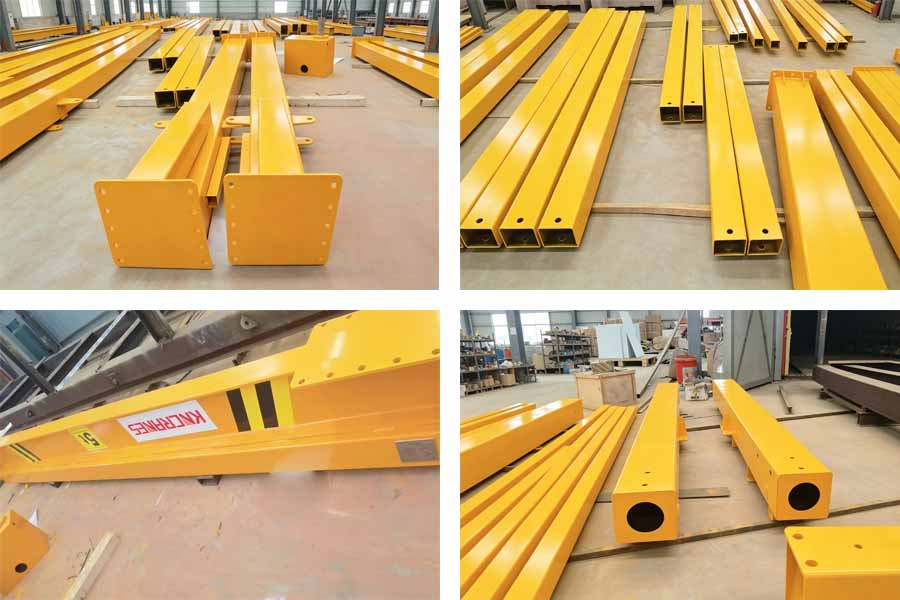

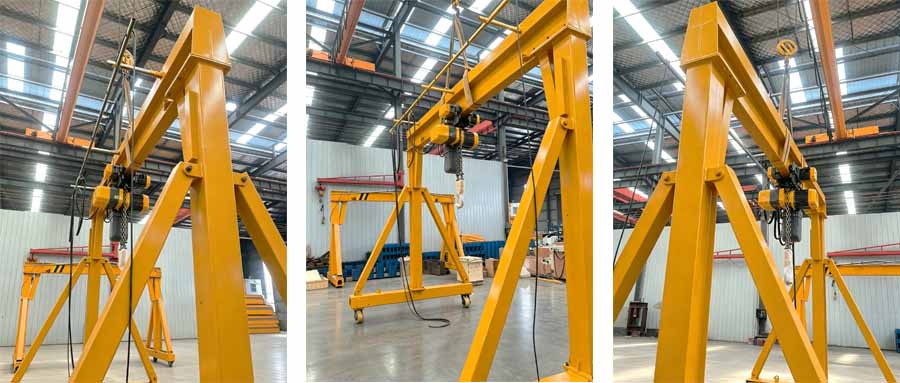

1. Portable electric gantry crane: The portable structure gives the client more flexibility when lifting points or handling areas change. It is a practical choice for trading operations that need one crane to support different material handling tasks within the available working area.

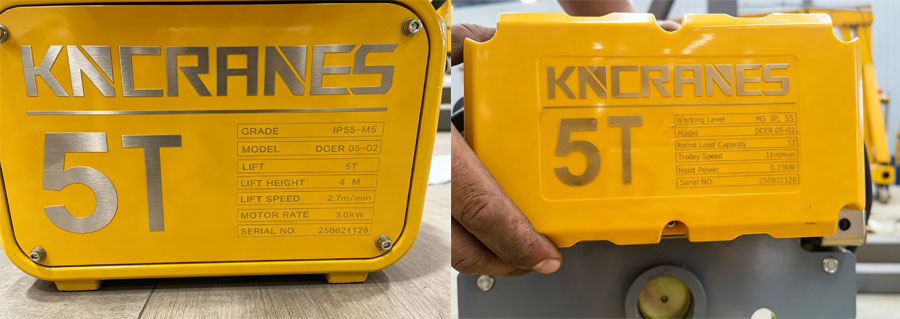

2. Dingchen double chain electric chain hoist: The double chain hoist provides the specified 5T lifting arrangement in a compact configuration. Its trolley-type design matches the crane structure to support controlled lifting and positioning across the 4m span.
3. Dual control: pendant + wireless remote: The operator can use the pendant line push-button control for direct operation or the remote control when a different viewing position is more convenient. This gives the client a simple operating choice without changing the main crane configuration.
4. 3-mechanism control system: The control system covers hoisting, trolley travel, and gantry travel as three coordinated mechanisms. This arrangement allows operators to lift the load, move it across the span, and reposition it along the travel path in a consistent operating sequence.
5. ISO M5 / FEM 2M working class: The working class provides the design basis for the crane's intended service conditions and repeated handling duties. It also gives the customer a clear reference when planning operation, inspection, and routine maintenance.
6. The control system adopts Schneider electrical components and equips aviation plugs for neater wiring layout. This supports practical installation and makes the electrical layout easier to check during service work.
Quality Assurance and Standards Compliance
Every Kinocranes crane undergoes rigorous quality testing and inspection before shipment. For this project, the final review was matched against the agreed 5T capacity, 4m span, 2.5m lifting height, three-mechanism operation, and pendant-plus-remote control configuration. The Electric Portable Gantry Crane was manufactured in compliance with international standards, providing the client with a documented technical basis for safe operation, routine checks, and long-term use in trading environments.
Why Choose Kinocranes for Your Electric Portable Gantry Crane?
Kinocranes offers a comprehensive range of crane solutions backed by experienced engineering teams, responsive customer service, and competitive pricing. For this Venezuela project, the service covered requirement review, crane configuration, component selection, production coordination, and shipment preparation. From initial consultation and custom design to manufacturing, shipping, and after-sales support, we provide end-to-end solutions that keep trading operations running efficiently.
Contact Kinocranes today to discuss your lifting requirements and receive a customized quotation. Whether you need a 5 ton gantry crane Venezuela solution, a portable gantry crane, or another mobile gantry crane configuration, our team can review the required capacity, span, lifting height, power supply, and control mode. Visit www.kinocranes.com or reach out to our sales team directly.
