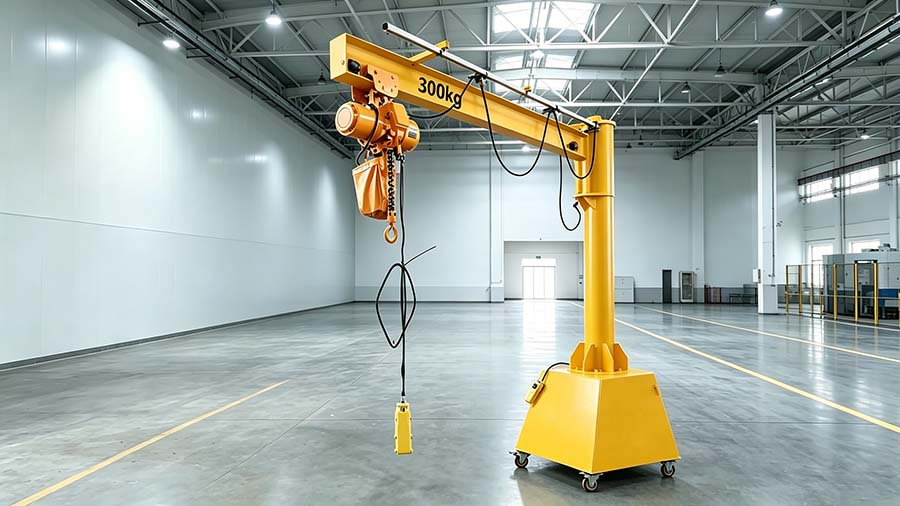

Kinocranes is a global manufacturer that supplies complete lifting solutions.We have just finished delivering a tailor-made 300 KG Mobile Jib Crane to a precision production factory in Saudi Arabia.We ran engineering simulations and selected high-quality hardware for this order.This project shows our capacity to solve space limits and meet flexible on-site lifting requirements.
Project Background and Requirements
The Saudi factory is a well-known local manufacturer, yet they faced a common workshop issue. To be precise, they required lifting equipment with a 300KG capacity to move goods across various workstations; in addition, installation of fixed bolted floor foundations was prohibited.
The primary requirements included:
Zero Infrastructure Impact: No pre-embedded parts or foundation excavation were allowed to avoid damaging the existing factory floor.
High Spatial Efficiency: The system needed to offer maximum working coverage within a compact footprint.
Operational Flexibility: Smooth 360° rotation was essential for maneuvering parts between machining and assembly zones.
Having conducted a thorough evaluation of Kinocranes' technical proposal and past performance in the Middle East, therefore, the client commissioned a tailored mobile solution to streamline their material handling workflow.ndling workflow.
Technical Specifications
Our engineers designed the customized 300 KG Mobile Jib Crane with the following high-precision parameters:
380V / 60Hz / 3P (Optimized for Saudi Arabia electrical standards)
Operational Safety
Overload protection and limit switches included as standard
Key Engineering Features
To ensure the optimal solution, the Kinocranes engineering team utilized advanced CAD software to simulate and compare three distinct configurations before finalization.
360-Degree Full Coverage Working Area: Unlike traditional wall-mounted or restricted fixed cranes, this mobile unit provides an unobstructed 360° sweep. This ensures that operators can reach any point within the radius, effectively eliminating "dead zones" in the workshop.
Superior Coverage (49.02 ㎡): Through CAD simulation, Option A (Mobile Jib Crane) was proven to provide 49.02 ㎡ of coverage. In comparison, this outperforms the KBK system (47.28 ㎡) and conventional fixed cranes (32.88 ㎡), offering the highest value per square meter of working space.

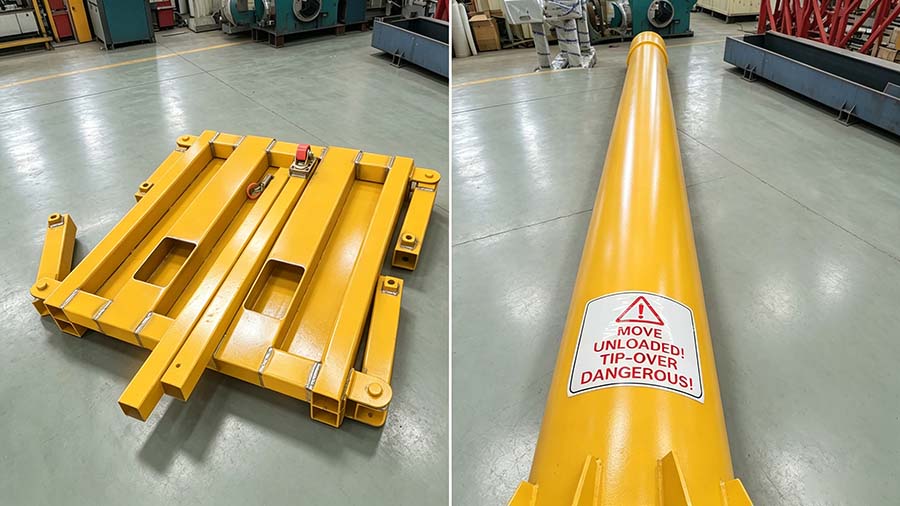

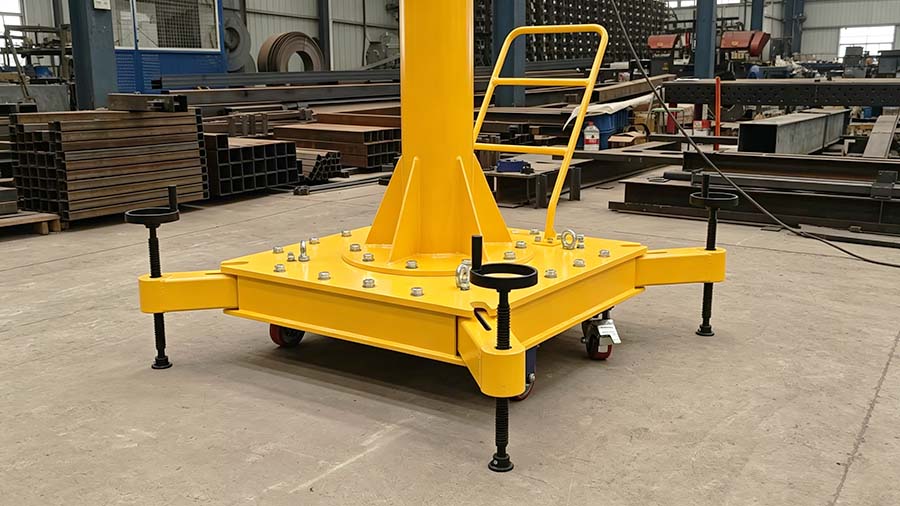

No Pre-embedded Parts Required: Furthermore, the crane features a counterweighted base design that ensures stability without the need for floor anchors. As a result, this allows for immediate deployment and the flexibility to relocate the crane as production lines evolve.
Optimized 3.95m Working Radius: Apart from the large coverage area, the arm length was precisely calculated to balance structural integrity with reach. With this design advantage, this specific radius allows for seamless material transfer between adjacent workstations without interfering with overhead facility structures.

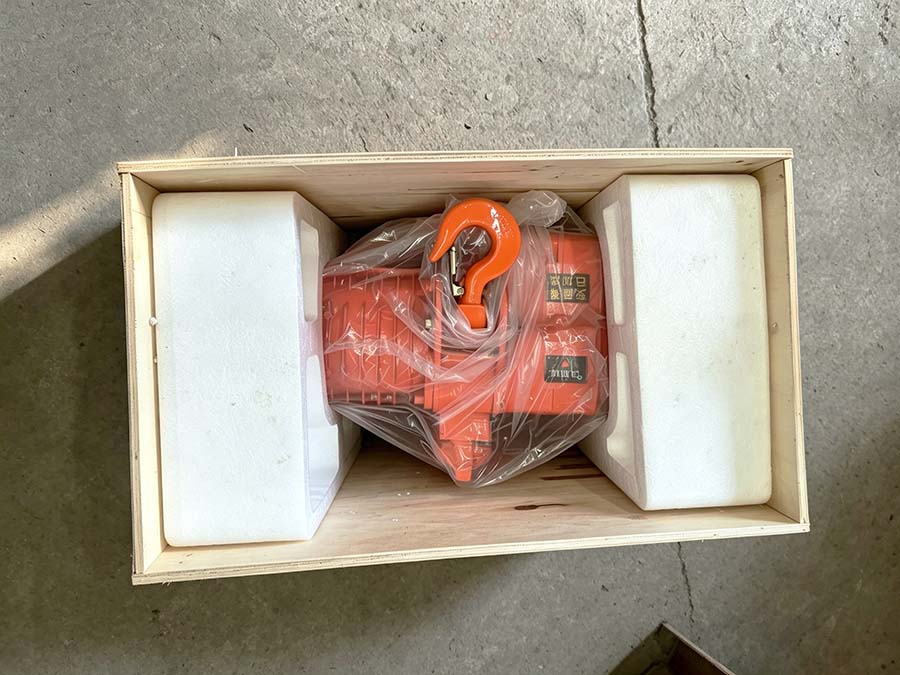

Precision Electric Chain Hoist: Last but not least, the unit is fitted with a precision electric chain hoist. Equipped with a C-type steel power supply system, the hoist provides smooth vertical movement and precise positioning, which is critical for handling delicate manufacturing components.
Quality Assurance and Standards Compliance
Kinocranes follows strict international production standards.This 300 KG Mobile Jib Crane went through multiple strict tests before delivery.We tested load capacity, slewing stability and the whole electrical system.The design meets CE and ISO certification requirements.The unit can work steadily under high outdoor temperatures in Saudi Arabia and maintain reliable performance for years.
Why Choose Kinocranes for Your Mobile Jib Crane?
Kinocranes provides more than just equipment; we deliver engineered value. Our ability to simulate multiple scenarios (as seen in the 3-option CAD analysis for this project) ensures that our clients receive the most cost-effective and operationally efficient solution.
By choosing Kinocranes, you benefit from:
Data-Driven Engineering: CAD simulations to prove efficiency before you buy.
Customization at Scale: Solutions tailored to specific load, radius, and power requirements.
Global Support: Proven expertise in navigating Middle Eastern logistics and industrial standards.
Contact Kinocranes today to discuss your lifting requirements and receive a CAD-supported customized quotation. Visit www.kinocranes.com to explore our full range of industrial crane systems.
