Gantry Crane Series
Port yard, outdoor storage and indoor warehouses
Description

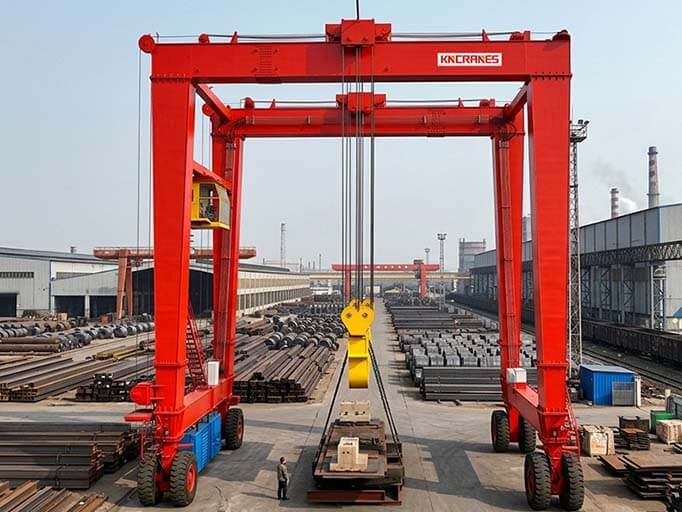

Kinocranes rubber tyre gantry crane features a high-rigidity steel structure that ensures exceptional stability and precise load handling — even at high operating speeds — with minimal sway or vibration.

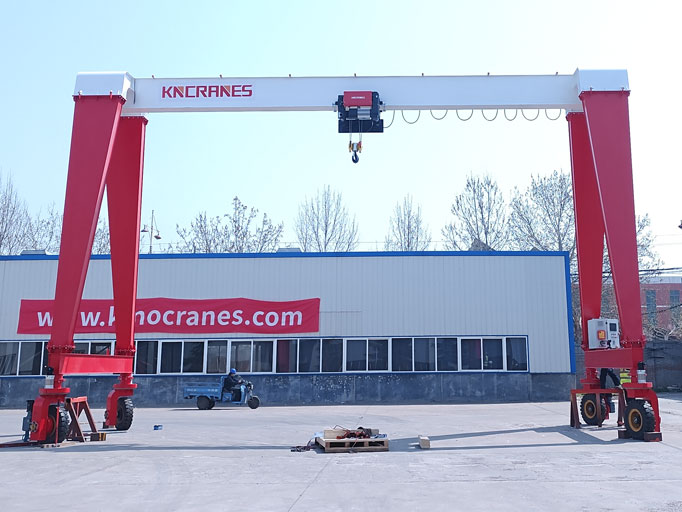

Designed and manufactured in China, our Rubber Tyre Gantry (RTG) Crane provides an efficient, reliable solution for container handling and industrial material movement. Its robust construction, smooth electric operation, and low maintenance requirements make it an ideal choice for ports, logistics hubs, and warehouse facilities.
Technical Data
| # | Description | Technical Parameter |
| 1 | SWL | 5T-400T |
| 2 | Span | 5-28m |
| 3 | Lifting Height | 3m-18m |
| 4 | Work Duty | M3-M5 |
| 5 | Control Method | Remote or pendant control |
| 6 | Power Supply | Diesel generator systems or other power supply equipment |
| Note: The customized is available according to required working conditions. | ||
Features
| # | Mechanism | Feature |
| 1 | Hoisting | Heavy duty motor, 60% ED rating
Super drum, longer wire rope lifetime DIN standard hook, 34CrMo4 material, class T |
| 2 | Cross Travelling | 3 in 1 gear motor with hardened gear,
H Insulation high protection level Stepless speed control |
| 3 | Long Travelling | Non-coupling transmission
Modular design and smart size |
| 4 | Free Turning | PLC control system
Rubber tyred wheel Free turning |
Application
Rubber tyre gantry crane is an ideal solution to lift or handle materials without building railway, it is widely used in various applications, such as port yards, outdoor storage, and indoor warehouses.
Packing and Delivery
Q1: How to choose the right RTG crane for my site?
A: Consider your lifting capacity, span, yard layout, and power source. Our sales team can help design the optimal solution.
Q2: What is the difference between electric RTG and diesel RTG cranes?
A: Electric RTG cranes are energy-efficient, low-noise, and suitable for environmentally sensitive areas. Diesel RTG cranes offer higher mobility for large outdoor yards.
Q3: Are spare parts readily available?
A: Yes, we provide all standard parts and can supply custom components based on your requirements.
This kind of manufacturing usually uses a variety of cranes, including High working class, high lifting capacity crane, low working class, low lifting capacity crane.
Light duty flexible track lifting equipment is used for transporting materials in a line, which can directly connect the loading worker and unloading worker, such as the out-back haul, circle haul, etc.
