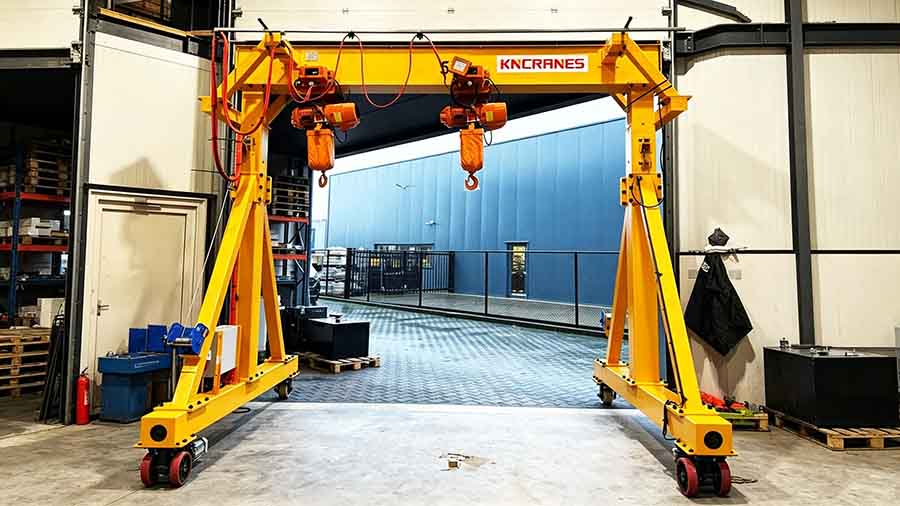

In June 2025, Kinocranes completed the delivery of a custom-engineered 5 Ton Mobile Gantry Crane + Electric Chain Hoist to a corporate client in Chile. We developed the project to transport 5-ton galvanized steel coils in construction scenarios. The equipment demands safe lifting, proper working height and convenient control. It reflects Kinocranes's ability to match a crane configuration with a defined handling task rather than relying on a generic specification.
Project Background and Requirements
The client, operating in Chile's architectural design sector, required a mobile gantry crane + electric chain hoist for transporting 5-ton galvanized steel coils. The project called for a 5-ton capacity, 4m span, and 5m lifting height, with remote control operation and a configuration suitable for the client's working area. Kinocranes also maintained dedicated follow-up during the sales cycle in line with the client's local working hours, helping technical and commercial communication move forward without unnecessary time zone delays.
Technical Specifications
The delivered 5 Ton Mobile Gantry Crane + Electric Chain Hoist features the following key specifications. These parameters define the main working envelope for the coil-handling application and provide a clear basis for equipment inspection and operation:
Model
Electric Small Gantry Crane
Capacity
5T
Span
4m
Lifting Height
5m
Working Class
A3
Power
380V 50Hz 3P
Control
Remote
Travel
Single Speed
Qty
1 set
Key Engineering Features
1. 5m lifting height for coil positioning: The 5m lifting height gives the crane the required vertical working range for transporting and positioning 5-ton galvanized steel coils within the client's facility. It also leaves the customer a clear reference when checking available clearance and storage arrangements before operation.
2. Remote control operation: Remote control allows the operator to keep a suitable viewing position while lifting and moving the coil. This is useful when the load, crane structure, or surrounding work area makes direct pendant operation less convenient.
3. A3 working class: The A3 working class provides the design reference for the expected service condition and handling frequency. It helps keep the equipment selection aligned with the actual duty requirements instead of treating rated capacity as the only selection factor.
4. Single-speed hoist and gantry travel: Single-speed operation keeps the control arrangement straightforward for routine lifting and travel. For this project, the focus was on stable and understandable movement during galvanized steel coil handling rather than adding unnecessary control complexity.
5. Designed for galvanized steel coil handling: The crane configuration was reviewed around the actual 5-ton galvanized steel coil application. Load stability, available clearance, lifting height, and the operator's view should be considered together when planning each handling movement.
6. Cost-optimized procurement plan: Kinocranes prepared a flexible, volume-based discount procurement plan for the client. This reduced the overall procurement cost while keeping the agreed capacity, dimensions, and operating requirements unchanged.
Quality Assurance and Standards Compliance
Every Kinocranes crane undergoes rigorous quality testing and inspection before shipment. For this Chile project, the final review was matched against the agreed 5T capacity, 4m span, 5m lifting height, A3 working class, 380V 50Hz 3P power supply, remote control, and single-speed travel arrangement. This Mobile Gantry Crane + Electric Chain Hoist was manufactured in compliance with international standards, giving the customer a clear technical basis for safe operation and routine maintenance in the architectural design environment.
Why Choose Kinocranes for Your Mobile Gantry Crane + Electric Chain Hoist?
Kinocranes supplies full-series crane products with professional engineering support, timely customer service and cost-effective prices. We finished requirement checking, model selection, time zone aligned communication, purchasing arrangement, production scheduling and shipment preparation for this Chile project. Our one-stop service covers consultation, customized design, production, delivery and aftersales assistance to guarantee stable and efficient operation of your equipment.
Contact Kinocranes today to discuss your lifting requirements and receive a customized quotation. Share the load type, capacity, span, lifting height, control preference, and working conditions so our engineering team can review the suitable mobile gantry crane and electric chain hoist configuration. Visit www.kinocranes.com or reach out to our sales team directly.
