5‑ton gantry cranes remain a popular lifting choice for New Zealand‑based workshops, warehouses and light‑duty industrial sites. With local factories focusing more on daily working efficiency and operator safety, practical upgrades such as VFD speed control and wireless remote control are now widely preferred rather than extra add‑ons.
Kinocranes recently supplied four units of our compact 5‑ton small gantry crane to a New Zealand distributor. Every unit comes with full variable‑frequency control and wireless remote operation. Below we walk through the core technology, real‑world advantages and typical usage scenarios of these gantry cranes.
Variable Frequency Drive (VFD), also called frequency conversion control, adjusts motor speed by changing power supply frequency and voltage. When used on gantry cranes, this system enables stepless speed regulation. Operators can start and stop hoisting or travelling movements smoothly, avoiding sudden jerks caused by conventional multi‑speed motors.
VFD control brings clear practical advantages to gantry cranes. Smooth movement lowers strain on main structure, gearbox, wire ropes and lifting chains, helping extend service life. Fine speed adjustment makes load positioning more accurate, especially important for fragile or high‑value goods. Motors run at matched working speeds instead of fixed rates to save energy. It also removes high‑current surges at startup and reduces wear to the whole electrical system.
Traditional crane operation relies on pendant control — a wired handheld controller connected to the crane by a cable. While reliable, pendant control limits the operator's position to the length of the cable and requires the operator to stand close to the load.

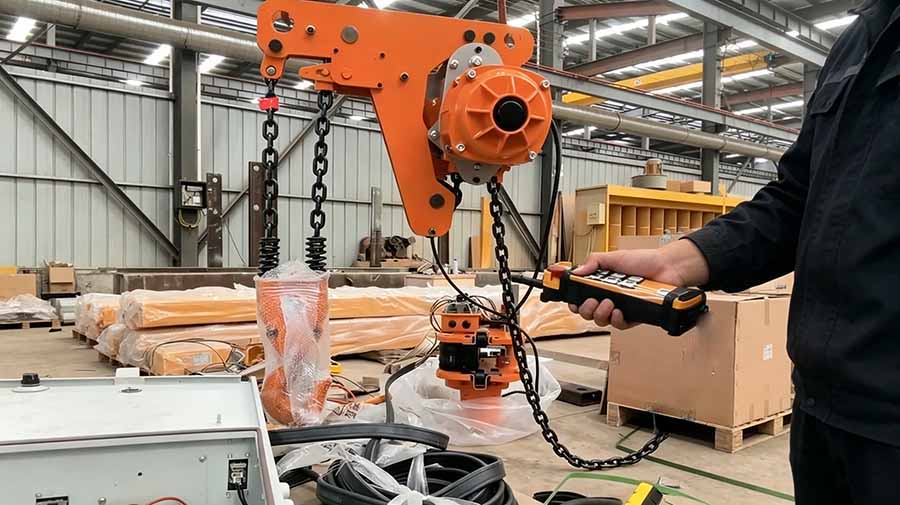

Wireless remote control eliminates these constraints. The operator can control the crane from any position within the signal range, providing better visibility of the load and surrounding area. This improves safety by allowing the operator to maintain a safer distance from the load path and enhances efficiency by enabling the operator to manage the crane while simultaneously coordinating with ground crew.
The Kinocranes gantry cranes delivered to New Zealand feature industrial-grade wireless remote controllers with encrypted signals, multiple safety interlocks, and emergency stop functionality.

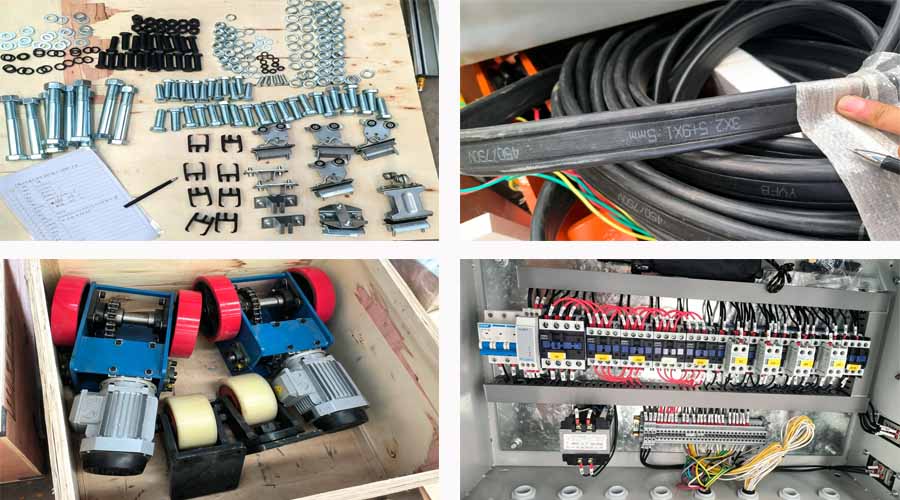

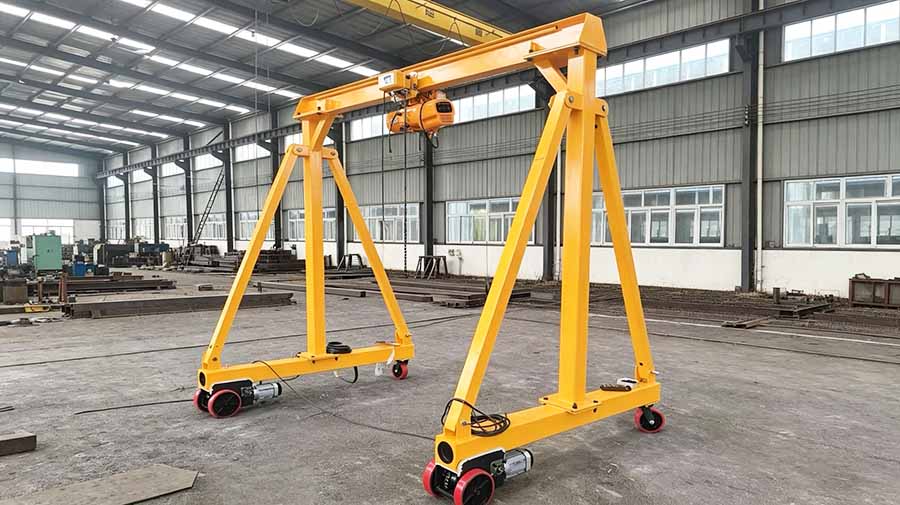

The 5-ton small gantry crane supplied to New Zealand feature the following configuration: rated load capacity of 5 tons, full frequency conversion control on all motions (hoisting, trolley travel, and crane travel), wireless remote control with backup pendant control capability, high cost-effective component selection optimized for the distribution market, and complimentary matching accessories including slings and shackles.
These cranes are designed for ease of assembly, reliable daily operation, and minimal maintenance — qualities that distributors and end users in New Zealand both value highly.
New Zealand covers multiple core industries such as manufacturing, agriculture, construction and logistics, all of which need stable and compact lifting equipment for daily work. Our compact 5‑ton small gantry crane works well for workshop assembly and maintenance, warehouse loading and cargo handling, farm machinery servicing, construction material placement, and small‑batch production sites.
Equipped with VFD speed control and wireless remote operation, these cranes perform well in workplaces that require high precision, strict safety standards and user‑friendly operation.
Kinocranes has built a strong track record in the Oceania region, supplying cranes to both Australia and New Zealand. Our commitment to the New Zealand market includes full technical consultation and responsive communication, configuration optimized for local power supply standards, bulk order pricing for distributors and trading companies, complimentary accessories and comprehensive documentation, and after-sales support and spare parts availability.
Whether you are an end user or a distributor, Kinocranes provides the product quality and service reliability you need.
If you are looking for 5-ton small gantry crane with VFD control and wireless remote for the New Zealand market, Kinocranes is ready to help. Contact us today for specifications, pricing, and lead time information.
