As a professional crane manufacturer with long-term export experience across Africa, Kinocranes has finished production and delivery of the 5 Ton European Single Girder Gantry Crane for an established steel enterprise in Burundi. The client has placed repeated orders with our company, which is sufficient to verify the stable quality of our lifting equipment and complete after-sales service system. All production work is finished at our standardized production base, and strict factory tests are arranged prior to cargo dispatch, fully reflecting our comprehensive R&D and customized production ability for diversified overseas industrial lifting demands.
The local customer focuses on steel cutting, forming and finished product storage in Burundi’s processing park. In daily production, frequent loading and moving of steel plates, section steel and coiled raw materials put forward high stability requirements for workshop lifting equipment. After evaluating multiple crane suppliers locally and internationally, the cooperative enterprise chose to purchase another set of gantry crane from us again. Considering the low indoor ceiling height of the production plant, we customized structural size and lifting parameters on-site, and finalized the design scheme of the 5 Ton European Single Girder Gantry Crane after repeated technical communication between both engineering teams.

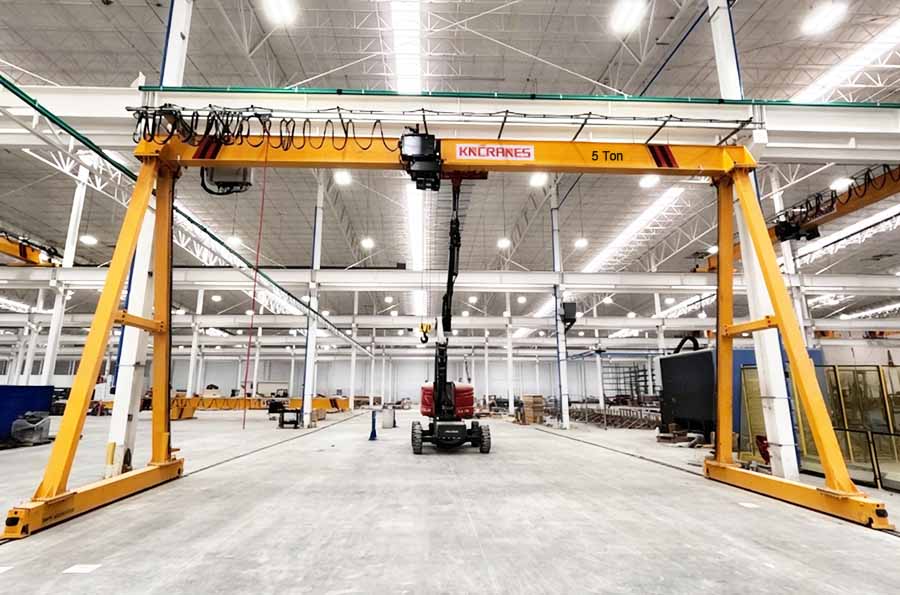

The customized gantry crane adopts KS31 European design framework, all technical indicators are confirmed according to the actual working condition of Burundi workshop:
| Model | KS31-10.9m-H-2.93m |
| Rated Capacity | 5T |
| Main Span | 10.9m |
| Effective Lifting Height | 2.93m |
| Working Class | M6 |
| Hoisting Speed | 0-0.8m/min dual speed control |
| Trolley Travel Speed | 0-20m/min with VFD regulation |
| Gantry Travel Speed | 0-32m/min with VFD regulation |
| Rated Power Supply | 415V 50Hz 3P |
| Main Electrical Accessories | Schneider brand electrical parts |
| Matching Inverter | Schneider brand electrical parts |
| Matching Inverter | Inovance frequency converter |
Built in accordance with mainstream European FEM design norms, the KS31 compact girder structure effectively saves indoor installation space. The lightweight structural layout lowers the load borne by ground running rails while maintaining overall structural strength, perfectly matching the narrow layout feature of the customer’s steel processing workshop.
Two independent control modes bring flexible operation options for on-site staff. Operators use the pendant handle for precise positioning during short-distance material stacking, and switch to wireless remote when transferring long-size steel workpieces, so operators can stand at a safe viewing position to follow up the whole lifting process.
Variable frequency driving configuration is applied to cross trolley and main gantry travelling mechanism. Smooth start and stop greatly restrain cargo swinging during steel transportation, operators can adjust travelling speed flexibly according to load weight and site obstacles to avoid collision accidents.
M6 working level adapts to high-frequency cyclic lifting tasks required by multi-shift steel production. Compared with low-duty cranes used for occasional warehouse handling, this grade effectively prolongs equipment service life and reduces regular component replacement cost for long-term production.
Supported by Inovance dedicated industrial inverter, hoisting and travelling realize seamless stepless speed change. The component can adapt to fluctuating voltage and variable ambient temperature commonly seen in African industrial sites, ensuring continuous stable running of the whole crane.
The integrated drive unit combines motor, reducer and brake into one assembly. Simplified mechanical structure cuts later daily maintenance workload, and delivers stable braking performance during frequent start-stop of gantry operation.

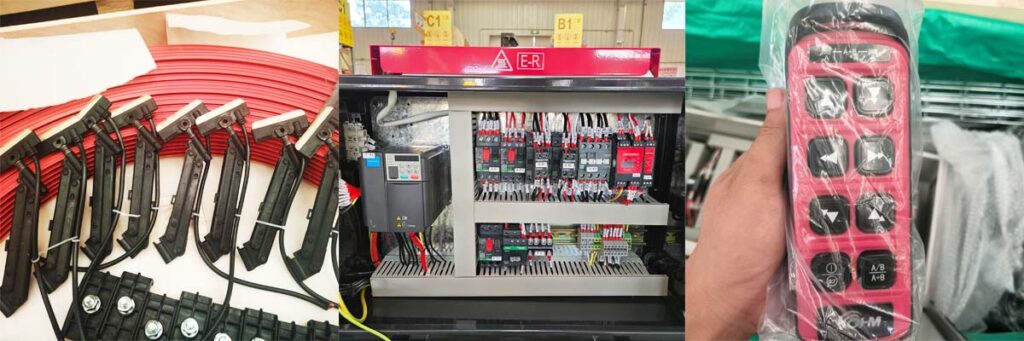

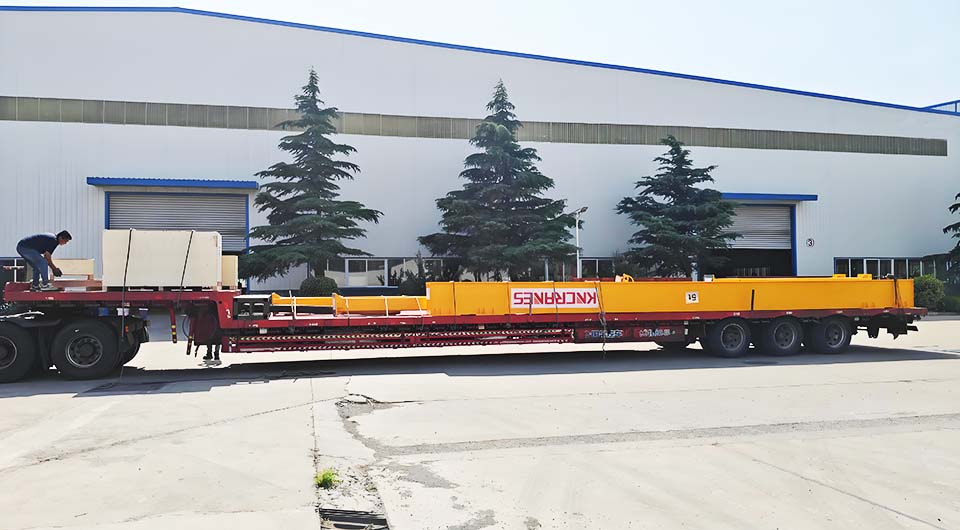

We carry out multi-level inspection for every finished crane before shipment. For this project, all Schneider electrical components and Inovance inverters received individual performance testing before assembly construction. The finished 5 Ton European Single Girder Gantry Crane passed full-load simulation test in factory, and all production links comply with international lifting machinery standards. Complete inspection certificates, electrical circuit diagrams and operation maintenance manuals are packed and delivered together with the equipment to assist the client’s daily equipment management.
We rely on a professional engineering design team to provide personalized lifting solutions for global industrial users, with balanced product cost and reliable after-sales service. Our product coverage has spread to more than 80 countries worldwide, and we have accumulated abundant practical experience in project delivery for African steel processing industry. From early site survey and customized scheme design to finished production, international logistics arrangement and post-delivery technical guidance, we provide full-cycle one-stop service to solve various troubles in equipment use for customers.
If you have customized crane purchasing needs, please visit our official website www.kinocranes.com or get in touch with our sales team to acquire targeted quotation.
