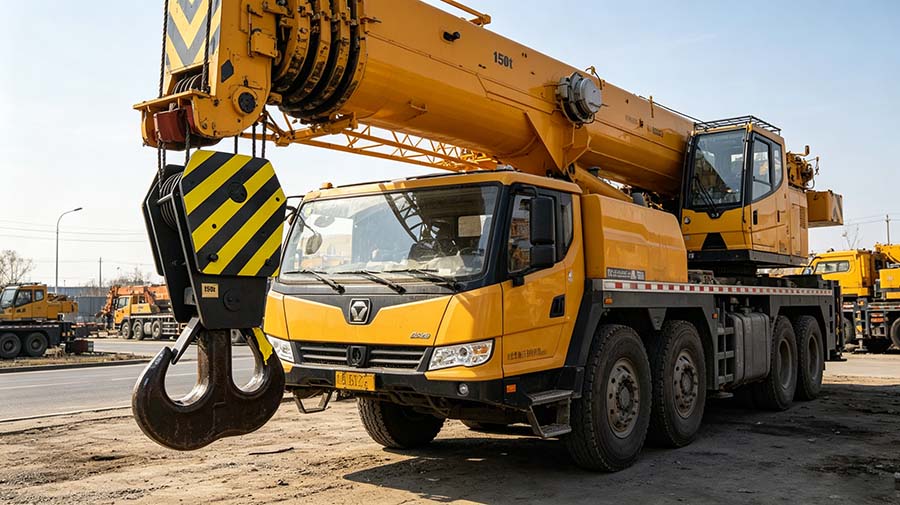

As a world-renowned crane manufacturer and comprehensive provider of lifting solutions, Kinocranes boasts a mature technical system and abundant project experience. Recently, we have successfully completed the production and delivery of custom 150T Automobile Hook Block (Hook Assembly) to a cooperative factory in Yemen. This project once again proves that Kinocranes is capable of designing and manufacturing customized crane components to cope with various harsh industrial working conditions, fully demonstrating our strong R&D and manufacturing capabilities in the lifting equipment industry.
The client is a local enterprise engaged in trading and heavy lifting sectors in Yemen. Specifically, its daily operations mainly cover transportation of large-tonnage goods and hoisting of heavy equipment; consequently, the enterprise has an urgent demand for a 150 ton hook block featuring superior load-bearing capacity and stable performance. After conducting a comprehensive evaluation and comparison on product quality, technical strength and delivery capacity of multiple suppliers, the client finally chose to cooperate with Kinocranes, fully recognizing our rich practical project experience and professional engineering service capabilities.

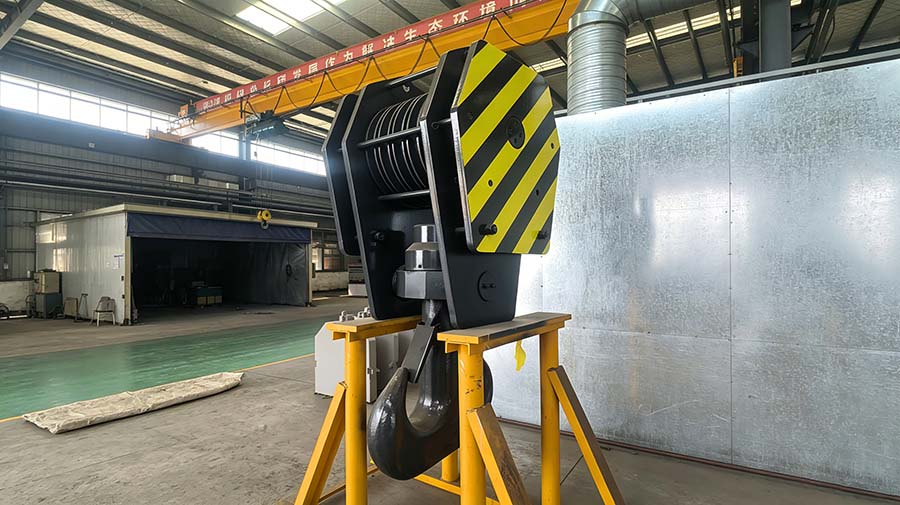

We have specially optimized the design of the delivered 150T automobile hook block. Below are its core technical parameters:
| Model | 150T Automobile Hook Block |
| Rated Load | 150T (Maximum intermittent load: 160T) |
| Wire Rope | 26-28mm in diameter |
| Pulleys | 7 Pcs |
| Working Duty | M3 |
| Hook Grade | S-Class |
| Hook Material | 35CrMo Alloy Steel |
| Pulley Process | Rolled |
1.The product features a rated load of 150 tons with a maximum intermittent load of 160 tons. The sufficient load margin makes it perfectly fit the client’s on-site requirements for hoisting heavy loads with this heavy duty hook block.
2.Adopting a 7-sheave pulley structure, the equipment realizes even force distribution, effectively reduces hoisting resistance and greatly improves the transmission efficiency and overall load-bearing capacity of the crane hook assembly.
3.Equipped with high-standard S-Class hooks, the product delivers excellent impact resistance and fracture resistance, ensuring the safety of heavy lifting operations at the core component level of the automobile hook block.
4.We forge the hook with 35CrMo alloy structural steel. It boasts high strength, excellent toughness, superior wear resistance and fatigue resistance, making it ideal for the industrial hook block’s long-term heavy-duty work.

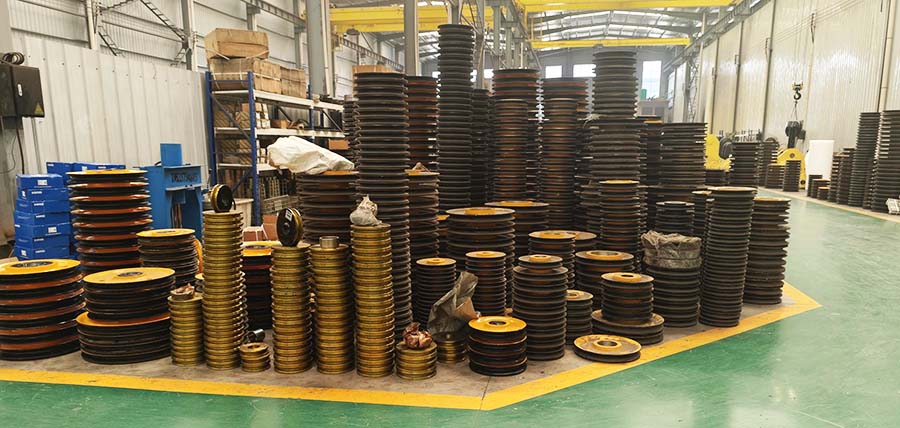

5.The pulleys are integrally formed by professional rolling technology with high surface precision and solid structural strength. They are resistant to deformation and damage, effectively extending the overall service life of the 150 ton hook block.
6.Matched with standard wire rope of 26-28mm diameter, all components fit perfectly and run smoothly, further optimizing the overall working performance of the lifting device applied as Yemen crane parts.
Kinocranes has established a full-process quality control system. All lifting equipment and supporting components will go through multiple strict performance tests, load tests and visual inspections before shipment. This 150T Automobile Hook Block (Hook Assembly) is manufactured in strict accordance with international standards for lifting equipment. It can operate safely and stably even under intense and high-load working conditions of commodity transportation and heavy lifting, presenting outstanding reliability and long service life.
Kinocranes supplies a full range of complete lifting equipment and supporting components including 150 ton hook block, heavy duty hook block and other industrial hook block products. Supported by an experienced professional engineering team, responsive customer service and cost-effective product solutions, we serve clients across the globe. We provide one-stop full-cycle services including pre-sales working condition consultation, customized solution design, product manufacturing, logistics and transportation, on-site coordination as well as after-sales technical support, to fully guarantee the efficient operation of clients’ production work.
If you have demands for purchasing lifting equipment and accessories and wish to get a customized quotation, please feel free to contact Kinocranes. You can visit our official website: www.kinocranes.com, or communicate directly with our sales team for further negotiation.
