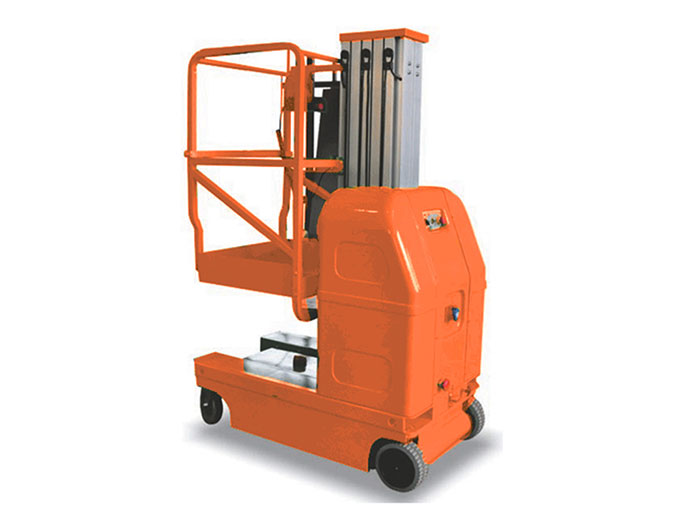

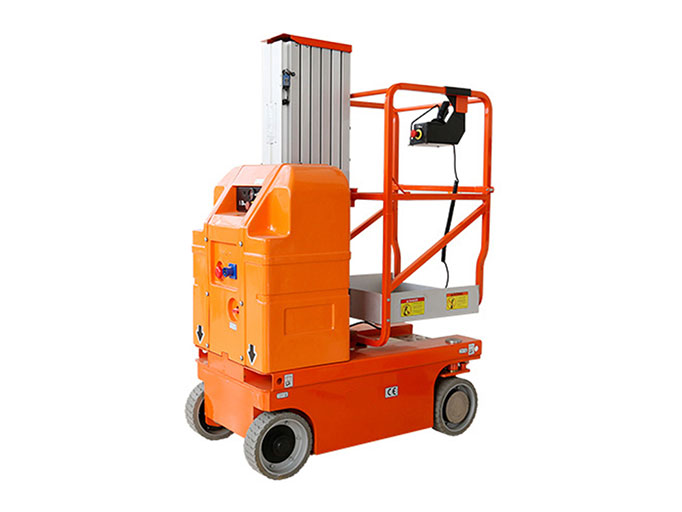

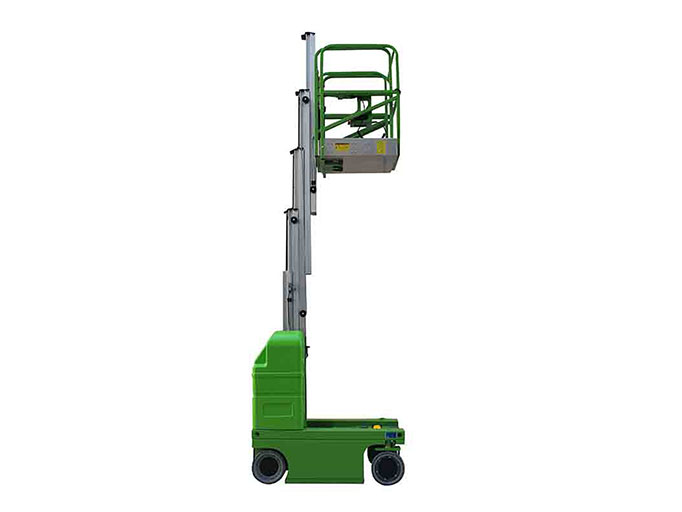

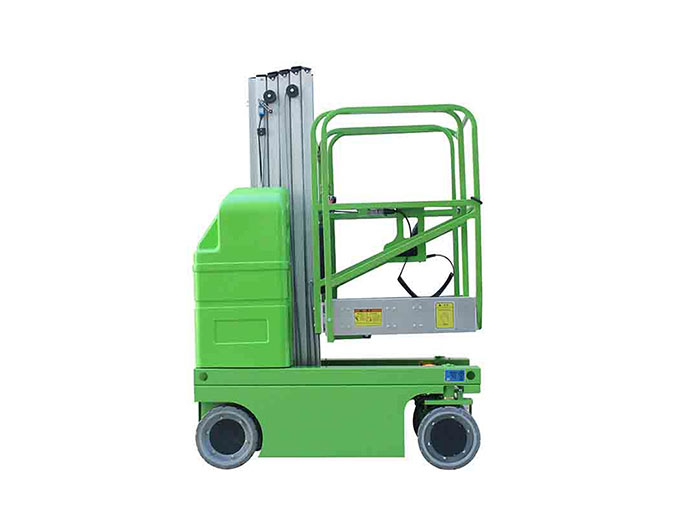

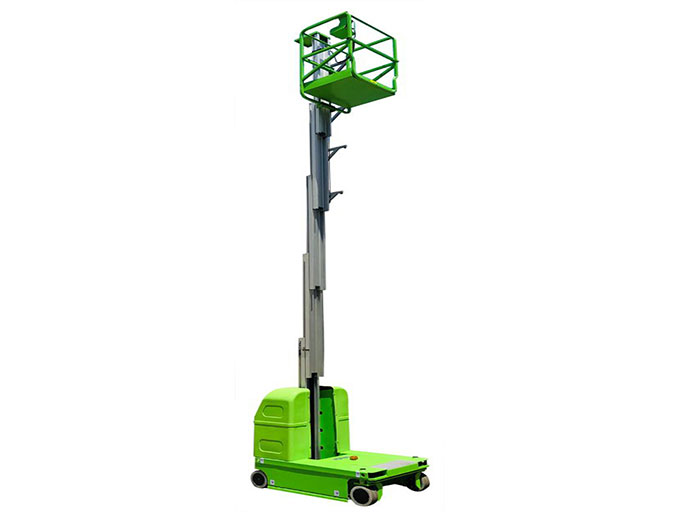

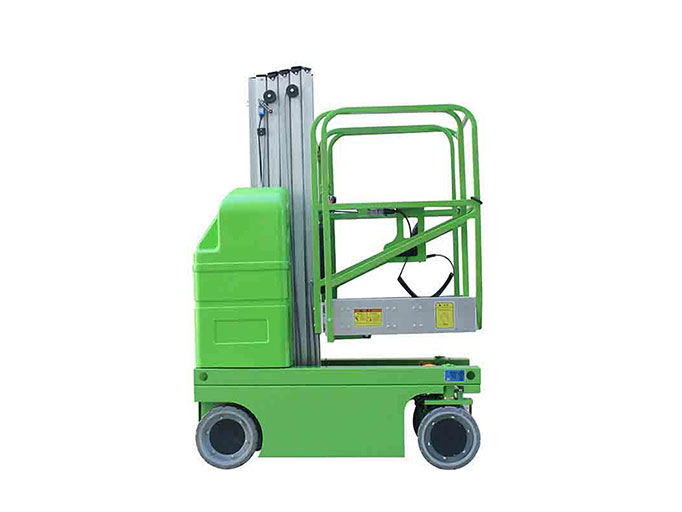

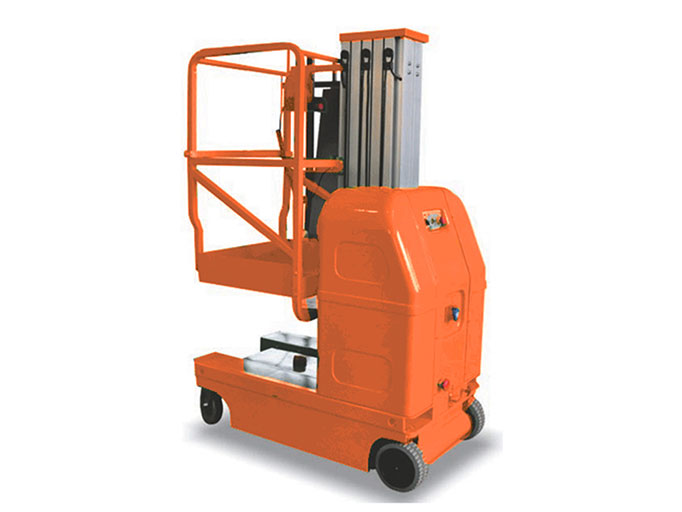

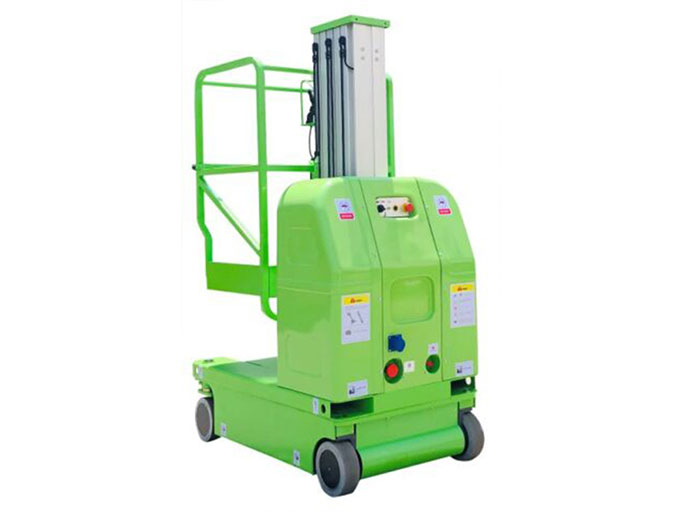

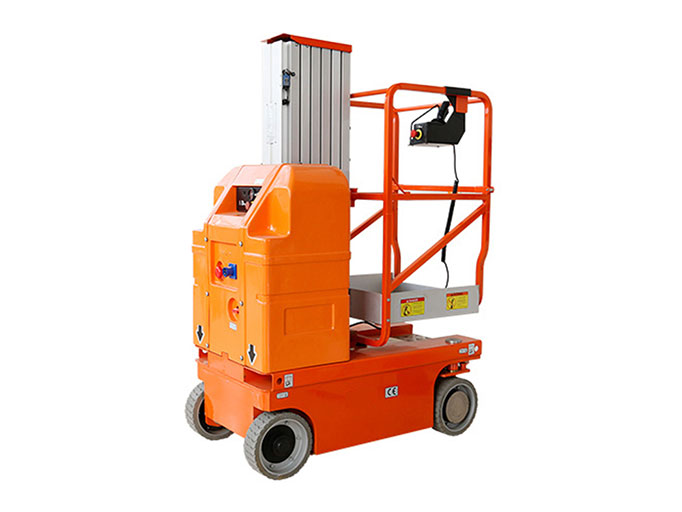

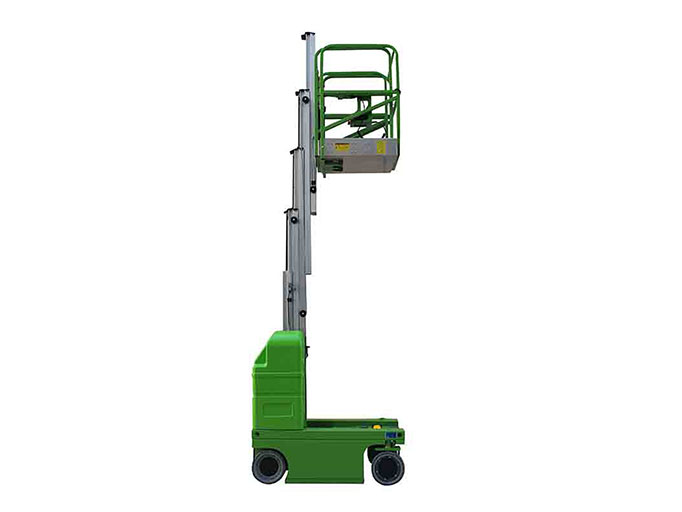

Self-propelled Vertical Mast Lift

Description

Fully self-propelled self-propelled vertical mast lift is an aerial work platform with outstanding work performance. Its small size allows it to enter a variety of space-constrained venues, and its 0m turning radius means free steering movement even in narrow aisles. High mobility, high sensitivity, pure battery drive, additional extension platform increases the working range. This is a man lift that is not only environmentally friendly, but also can greatly improve your work efficiency.

Technical Data

Type		SP600-1	SP750-1	SP750-2	SP900-2
Platform carrying capacity		125Kg	125Kg	200Kg	150Kg
Working height		8m	9.5m	9.5m	11m
Platform height		6m	7.5m	7.5m	9m
Overall dimensions of the vehicle		1.36×0.79×2.08m	1.36×0.79×2.08m	1.5×1×2.08m	1.5x1x2.08m
Platform size		0.78×0.7m	0.78×0.7m	1.0×0.7m	1.0*0.7m
Grade		25%	25%	25%	25%
Maximum allowable angle		1.5°	1.5°	3°	3°
Minimum turning radius		0	0	0	0
Wheelbase		1.15m	1.15m	1.28m	1.28m
Driving speed	Collapsed state	3km/h	3km/h	3km/h	3km/h
Driving speed	Raised or extended	0.5km/h	0.5km/h	0.5km/h	0.5km/h
Ground clearance		0.05m	0.05m	0.05m	0.05m
Drive wheel size		φ 0.25×0.08	φ 0.25×0.08	φ 0.25×0.08	φ 0.25×0.08
Motor		2*24V/0.4kw	2*24V/0.4kw	2*24V/0.5kw	2*24V/0.5kw
Lifting motor		24V/1.1kw	24V/1.1kw	24V/2kw	24V/2kw
Maintenance-free battery		2*12V/105A	2*12V/105A	2*12V/115A	2’12V/115A
Charger		24V/12A	24V/12A	24V/12A	24V/12A
Weight		800kg	910kg	1200kg	1450kg

Features

Walkable for working at height
Infinitely variable transmission
Large angle steering system
Smart charging system
Extended platform
High standard construction
Power failure self-locking function
Green environmental protection
