Pneumatic Chain Hoist

Electric Hoist Series

Capacity: 0.25–60 tons, Customized
Lifting height: Standard 3m (customizable)
Control: Pull cord or pendant control
Operation type: Hook suspension / trolley mounted
Material: Alloy steel chain, aluminum body
Surface treatment: Anti-corrosion coating

Applications:

Oil & Gas industry, Chemical and pharmaceutical plants, Marine and shipyard lifting operations, Mining and tunneling applications, Heavy machinery assembly workshops

Description
Technical Parameters
Features
Why Choose Us
Workshop Production

Description

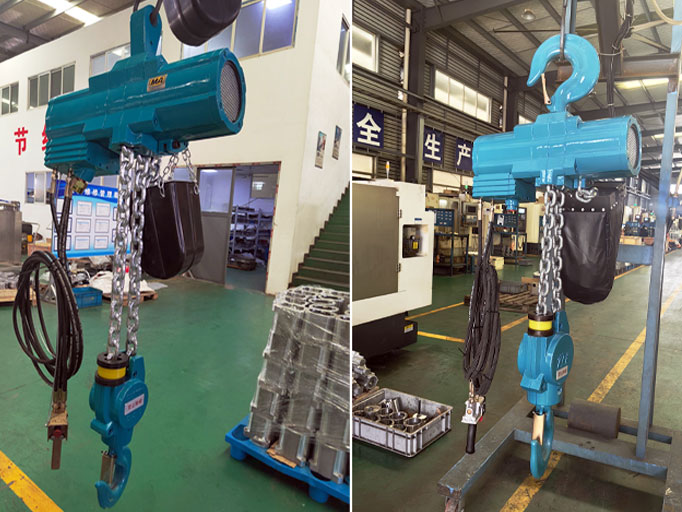

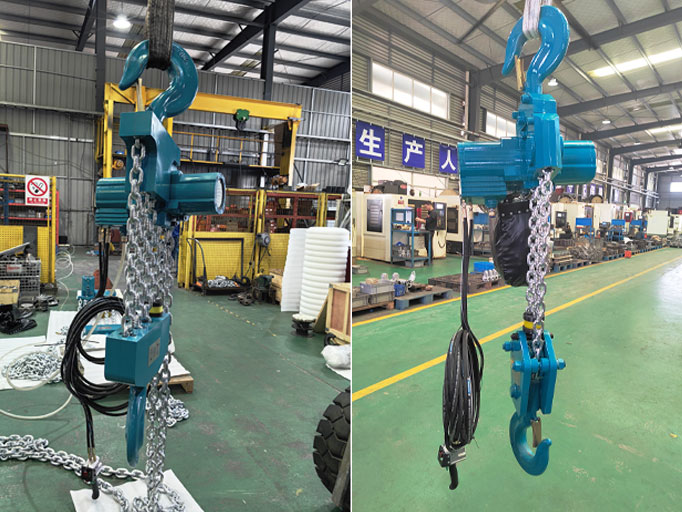

Our pneumatic chain hoists are designed for precise and efficient lifting in industrial, marine, and hazardous environments.
Powered by compressed air, these pneumatic hoists are explosion-proof, compact, and capable of continuous operation under demanding conditions.

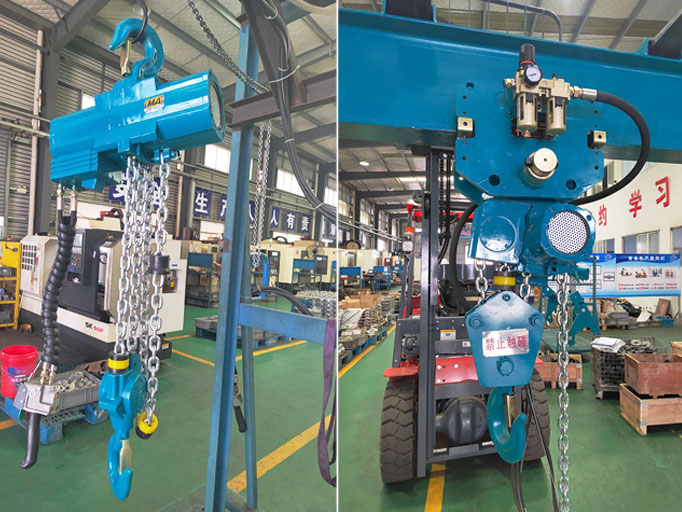

As one of the reliable pneumatic chain hoist manufacturers, we provide both hook suspension and pneumatic hoist and trolley options.

Technical Parameters

Capacity (t)	Air Pressure (bar)	Motor Power (kW)	Full Load Lifting Speed (m/min)	No Load Lifting Speed (m/min)	Full Load Lowering Speed (m/min)	Air Consumption (m³/min)
0.16	4	0.6	20	37.5	38	0.7/0.8
0.25	6	1	20	42	38	1.2/1.5
0.32	4	0.6	10	16	17	0.7/0.8
0.5	6	1	11	19	17	1.2/1.5
0.63	4	0.6	5	10	10	0.7/0.8
1	6	1	5.5	11	11	1.2/1.5
1.25	4	0.6	2.5	5	5	0.7/0.8
2	6	1	2.7	5.5	5.5	1.2/1.5
3.2	4/6	1.8/3.5	2.5/5	6/10	7.5/10.8	2/3.5 4/5.5
5	4/6	1.8/3.5	1.2/2.5	3/5	3.6/5.4	2/3.5 4/5.5
6.3	4/6	1.8/3.5	1.2/2.5	3/5	3.6/5.4	2/3.5 4/5.5
8	4/6	1.8/3.5	0.8/1.6	2/3.2	2.5/3.4	2/3.5 4/5.5
10	4/6	1.8/3.5	0.8/1.6	2/3.2	2.5/3.4	2/3.5 4/5.5
15	4/6	1.8/3.5	0.5/1	1.3/2	1.6/2.1	2/3.5 4/5.5
20	4/6	1.8/3.5	0.4/0.7	1/1.4	1.2/1.6	2/3.5 4/5.5
25	6	6.3	1.25	2.4	2.8	6.5/2.9
30	6	6.3	1	2.4	2.8	6.5/2.9
37.5	6	6.3	0.75	1.7	2	6.5/2.9
40	6	6.3	0.7	1.7	2	6.5/2.9
50	6	6.3	0.55	1.3	1.6	6.5/2.9
60	6	6.3	0.45	1.3	1.6	6.5/2.9

Features

Explosion-proof air motor — safe for flammable or high-temperature working environments.
Stepless speed control — precise lifting and lowering operation.
Compact and lightweight design for easy installation and handling.
Continuous duty — no overheating or motor burnout risk.
Durable chain & gearbox — long service life with minimal maintenance.
Overload protection system for safety.

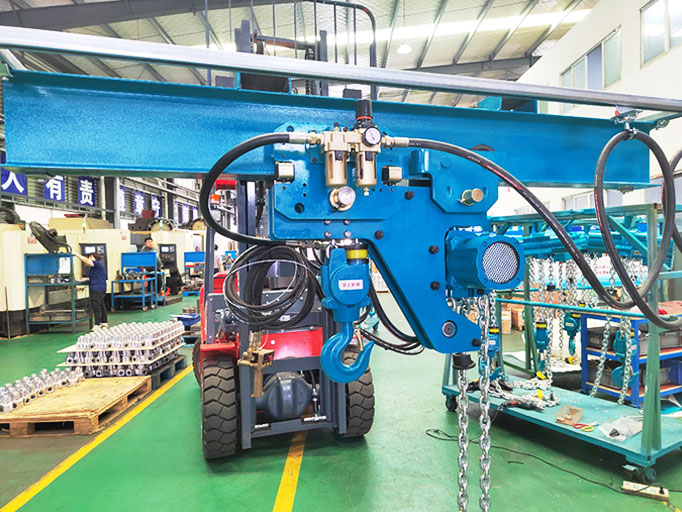

Optional pneumatic trolley for horizontal load movement.
Corrosion-resistant housing for offshore or chemical use.

Advantages of Pneumatic Chain Hoist

Ideal for explosive, humid, or dusty environments where electric hoists are unsafe.
Continuous operation without cooling intervals.
Less maintenance — no electric parts, no spark risk.
Precise control for assembly or load positioning.
Compact size with high load capacity.

Why Choose Us

Professional pneumatic chain hoist manufacturer with OEM/ODM capability.
Strict quality control and CE/ATEX compliance.
Fast lead time and full after-sales support.
Customized air hoists and trolleys available.

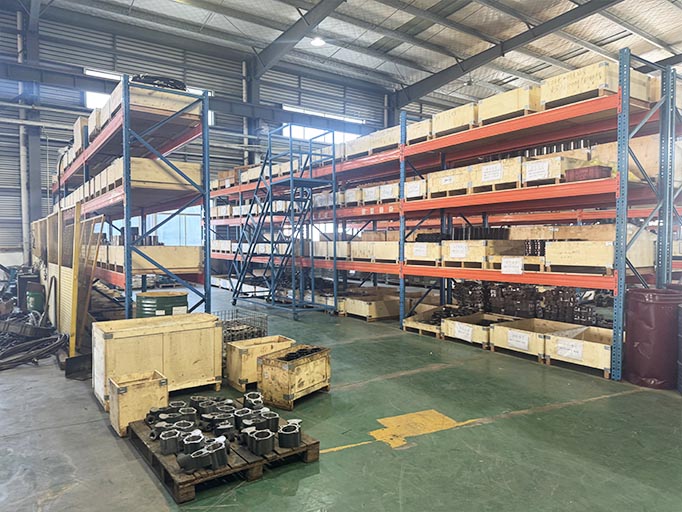

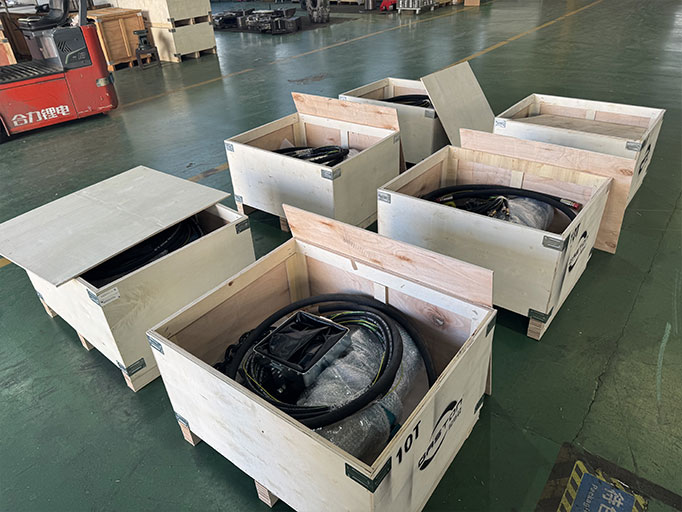

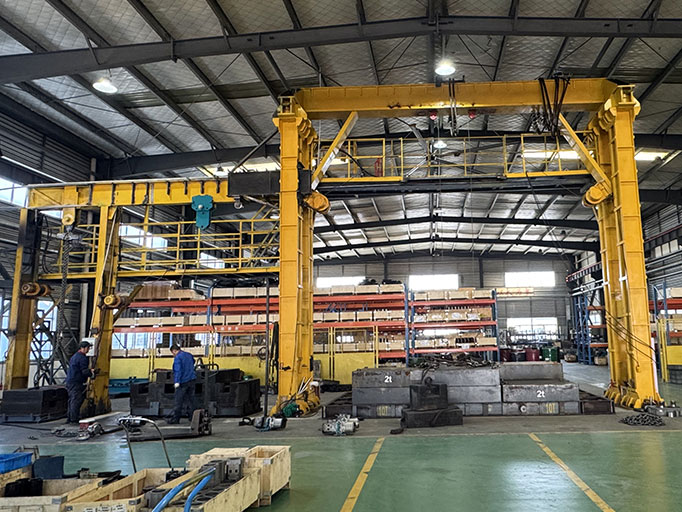

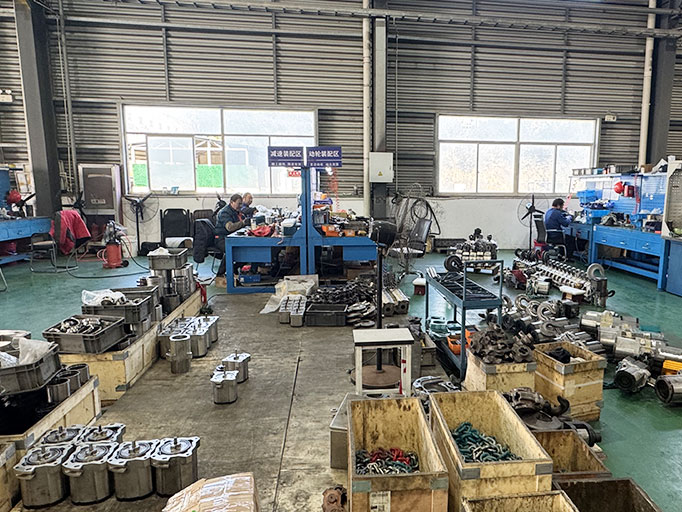

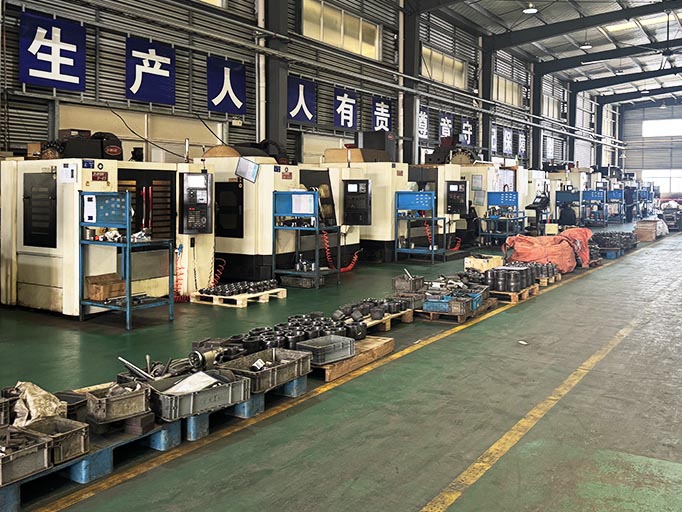

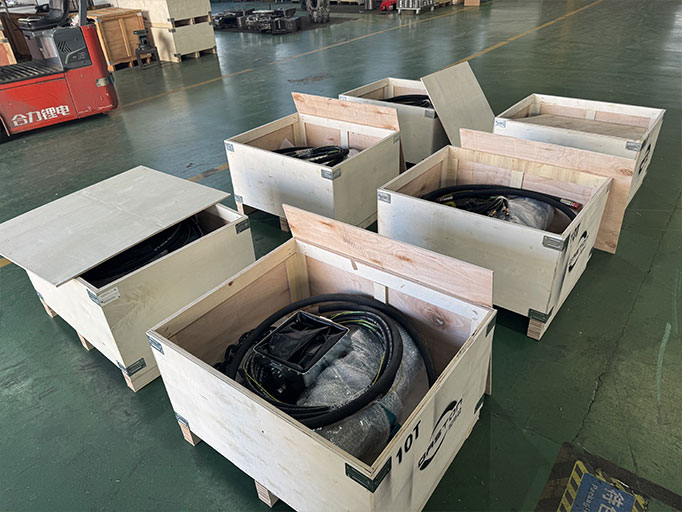

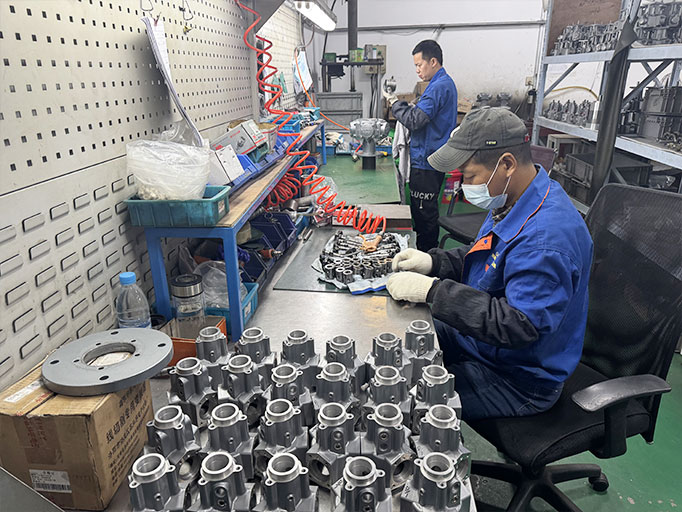

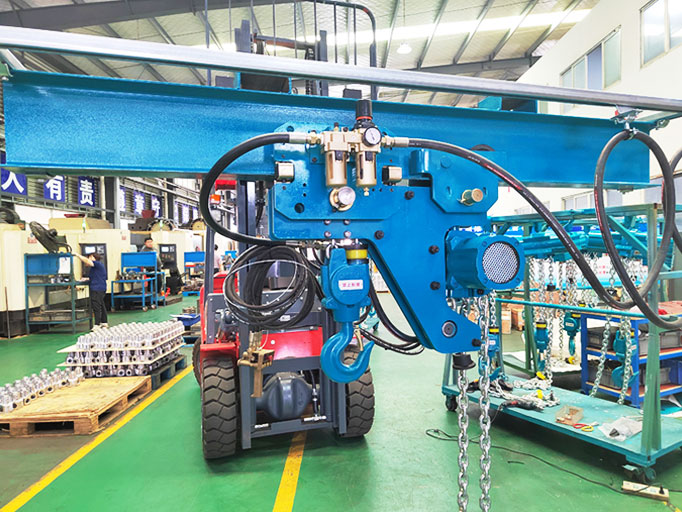

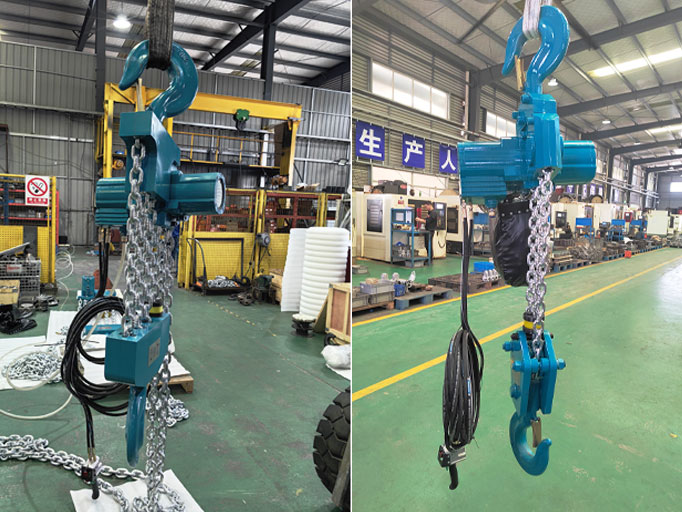

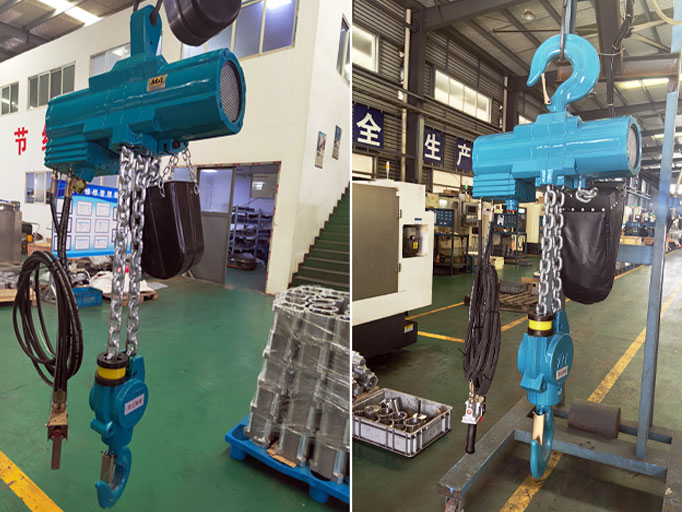

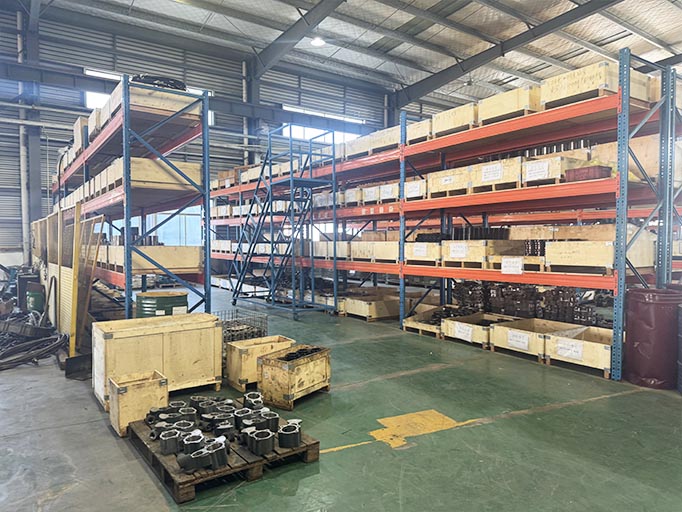

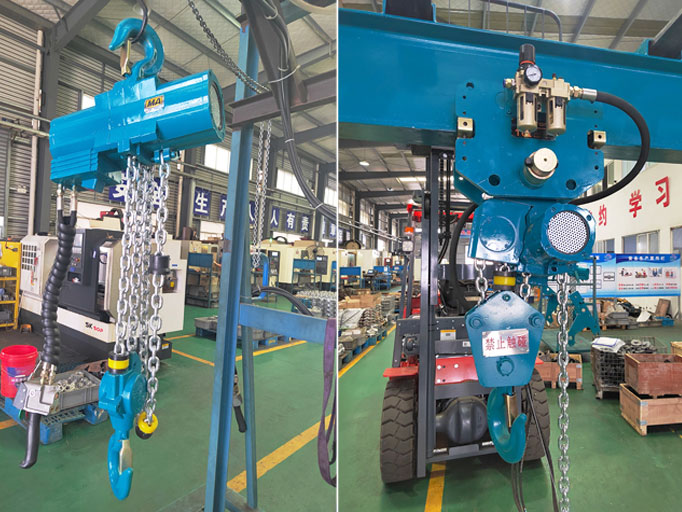

Workshop Production

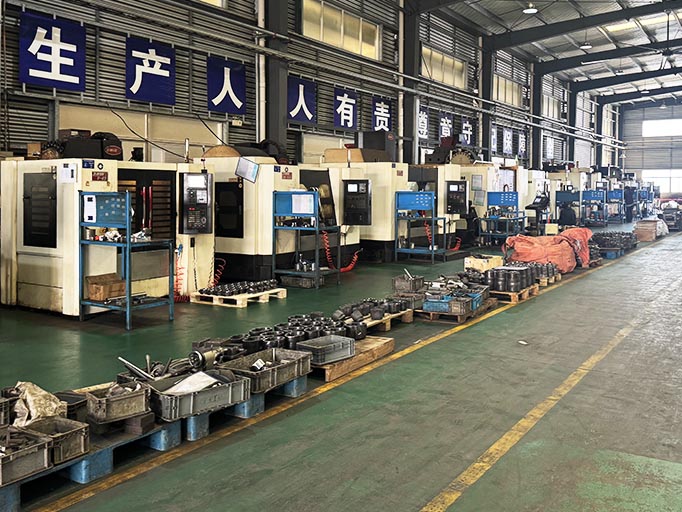

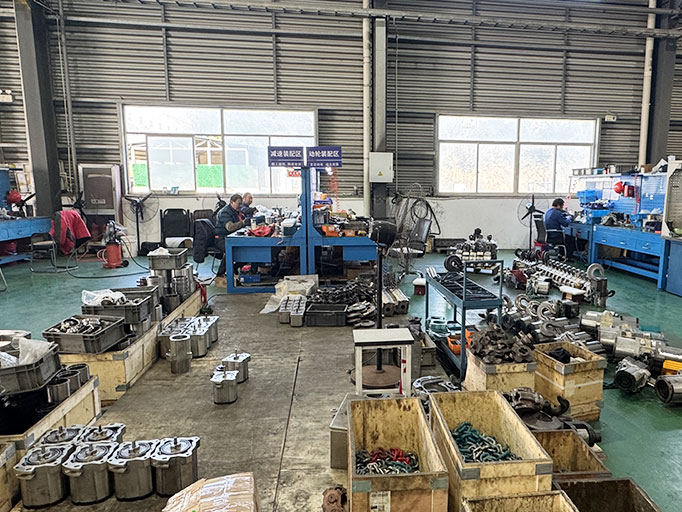

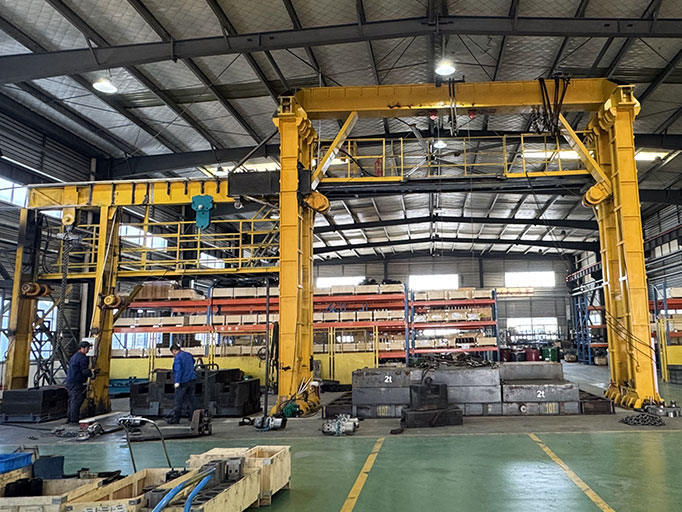

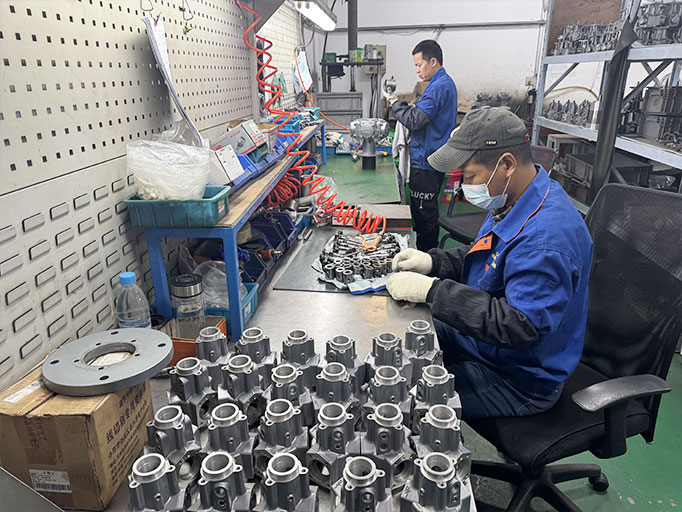

Explore our production environment and product details — from precision machining to final assembly and testing. Every pneumatic chain hoist is built under strict quality control, delivering dependable performance for lifting applications across industries.
