Automobile industry, mould industry,hipbuilding, machinery processing, aerospace, etc
Description

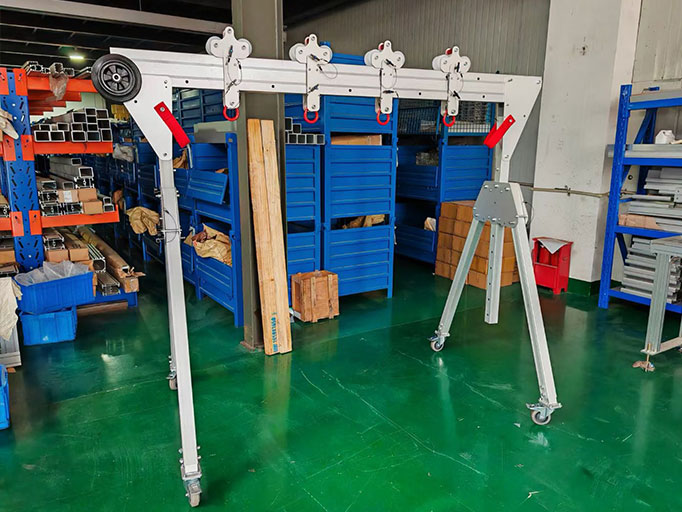

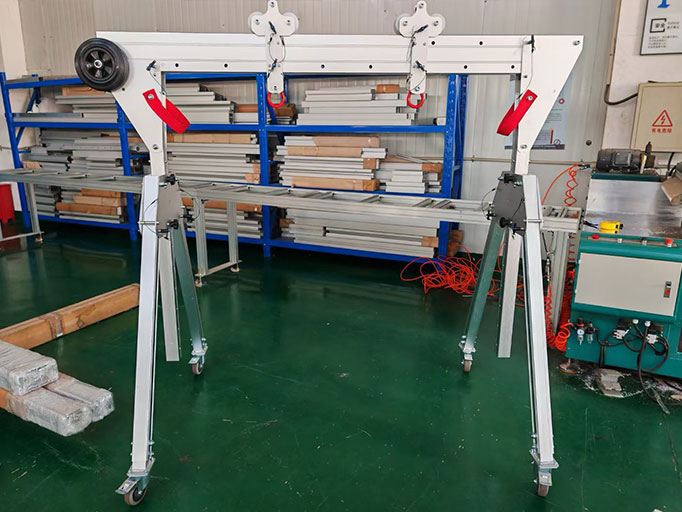

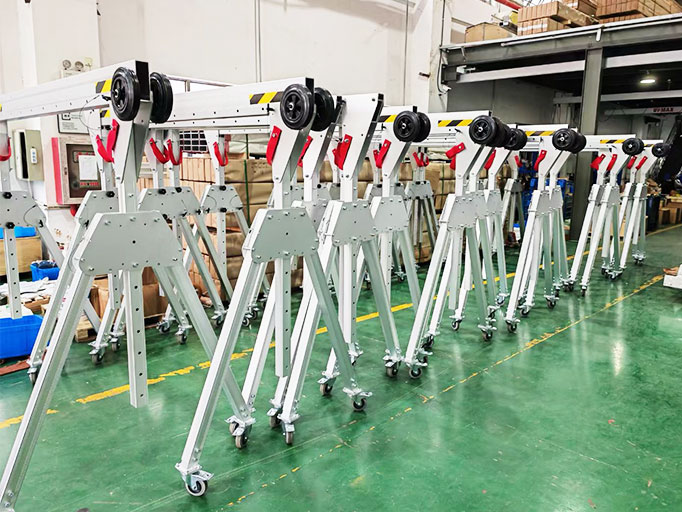

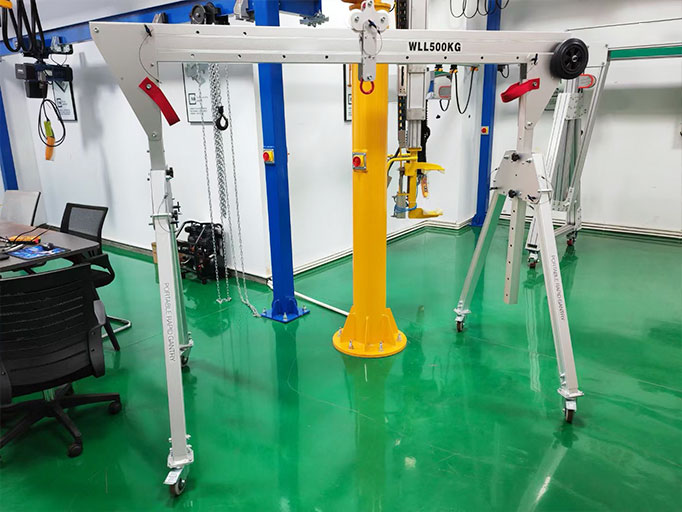

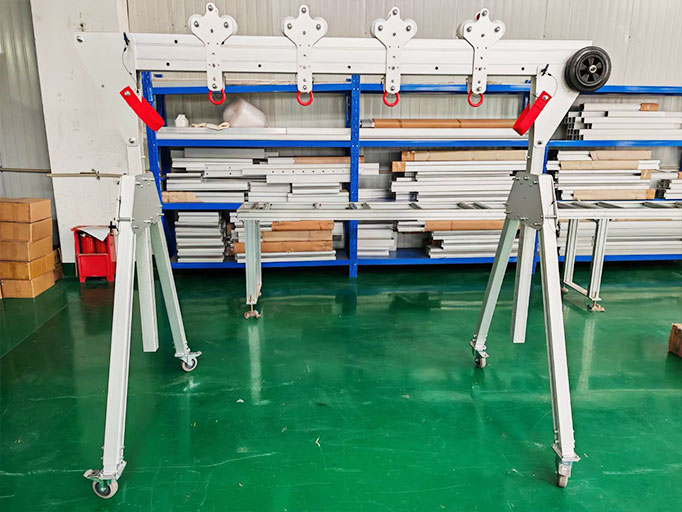

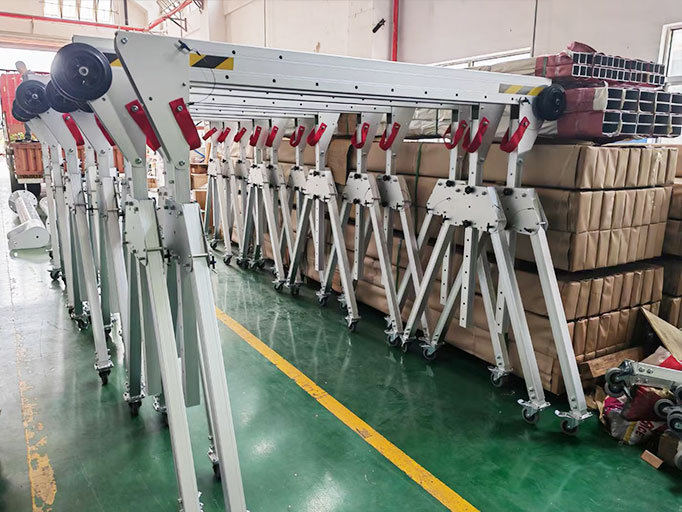

The KNPRG foldable aluminum alloy gantry crane is a lightweight, portable, and high-strength lifting solution for both goods and personnel. It fully complies with European and international safety standards, making it ideal for industrial maintenance, construction sites, rescue operations, and confined space work.
* With selected accessories, it can support up to 3 workers simultaneously.
* Designed and manufactured according to EN795 Class B, OSHA, ANSI, and CSA standards.
* Suitable for domestic and European regulations.
Technical Data

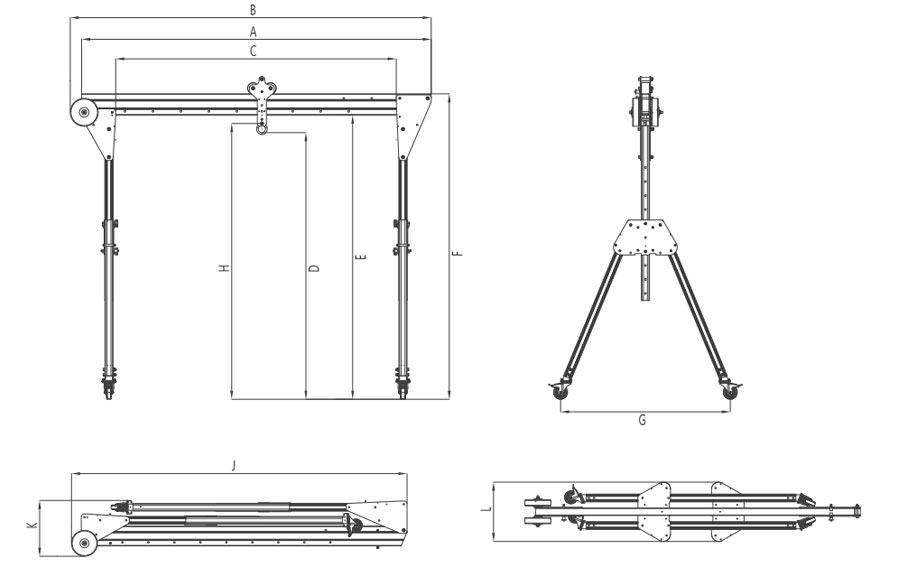

| Load(kg) | Operator | Dimension parameter (mm) | Self weight
(kg) |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Load(kg) | Numberreqaired | A | B | C | E | F | G | H | J | K | L | ||
| 500 | 250 | 3 | 2000 | 2078 | 1100-1500 | 1914-2114 | 2064-2264 | 1158 | 1850-2050 | 2190 | 415 | 440 | 33 |
| 400 | 200 | 2 | 2300 | 2378 | 1200-1800 | 2376 | 34 | ||||||
| 250 | 125 | 1 | 4000 | 4076 | 2700-3500 | 4076 | 40 | ||||||
| 400 | 200 | 2 | 2000 | 2076 | 1100-1500 | 1818-2218 | 1968-2388 | 1215 | 1755-2155 | 2076 | 34 | ||
| 400 | 200 | 2 | 2300 | 2378 | 1200-1800 | 2376 | 34 | ||||||
| 250 | 125 | 1 | 4000 | 40T6 | 2700-3500 | 4076 | 40 | ||||||
| 250 | 125 | 1 | 2000 | 2076 | 1100-1500 | 2092-2992 | 2242-3142 | 1586 | 2028-2928 | 2631 | 38 | ||
| 250 | 125 | 1 | 2300 | 2378 | 1200-1800 | 2631 | 39 | ||||||
| 250 | 125 | 1 | 4000 | 4078 | 2700-3500 | 4076 | 44 | ||||||
| 1000 | 500 | 3 | 2000 | 2077 | 1102-1502 | 1661-2161 | 1822-2322 | 1270 | 1549-2049 | 2077 | 464 | 536 | 45 |
| 1000 | 500 | 3 | 3000 | 3077 | 1902-2502 | 3077 | 53 | ||||||
| 500 | 500 | 3 | 4000 | 4077 | 1902-3502 | 4077 | 58 | ||||||
| 1000 | 500 | 3 | 2000 | 2077 | 1102-1502 | 1900-2600 | 2061-2761 | 1484 | 1859-2559 | 2200 | 49 | ||
| 1000 | 500 | 3 | 3000 | 3077 | 1902-2502 | 3077 | 54 | ||||||
| 500 | 500 | 3 | 4000 | 4077 | 1902-3502 | 4077 | 59 | ||||||
| 1000 | 500 | 3 | 2000 | 2077 | 1102-1502 | 2140-3040 | 2301-3201 | 1698 | 2099-2999 | 2830 | 53 | ||
| 1000 | 500 | 3 | 3000 | 3077 | 1902-2502 | 3077 | 58 | ||||||
| 500 | 500 | 3 | 4000 | 4077 | 1902-3502 | 4077 | 62 | ||||||

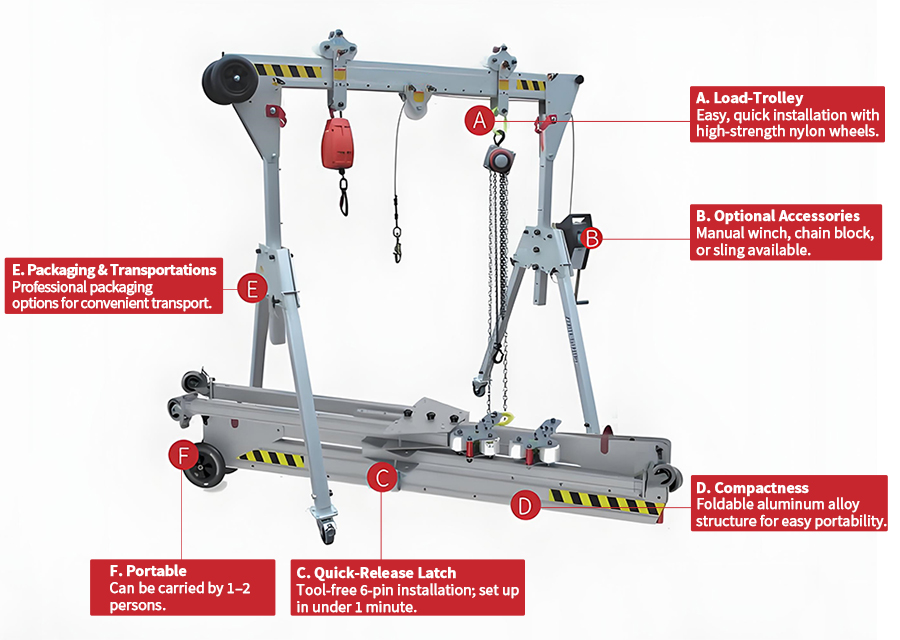

Features

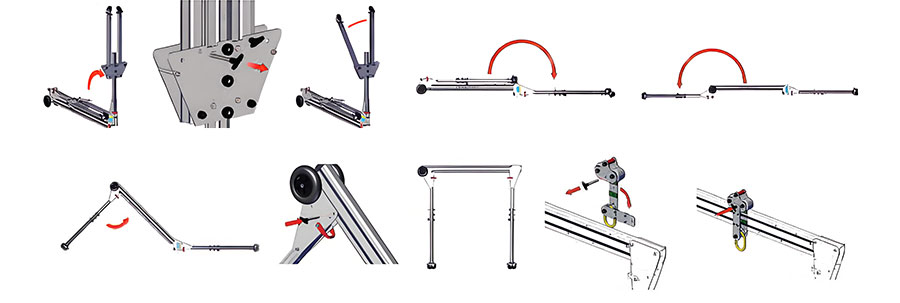

Assembly
Light duty flexible track lifting equipment is used for transporting materials in a line, which can directly connect the loading worker and unloading worker, such as the out-back haul, circle haul, etc.
This kind of manufacturing usually uses a variety of cranes, including High working class, high lifting capacity crane, low working class, low lifting capacity crane.
