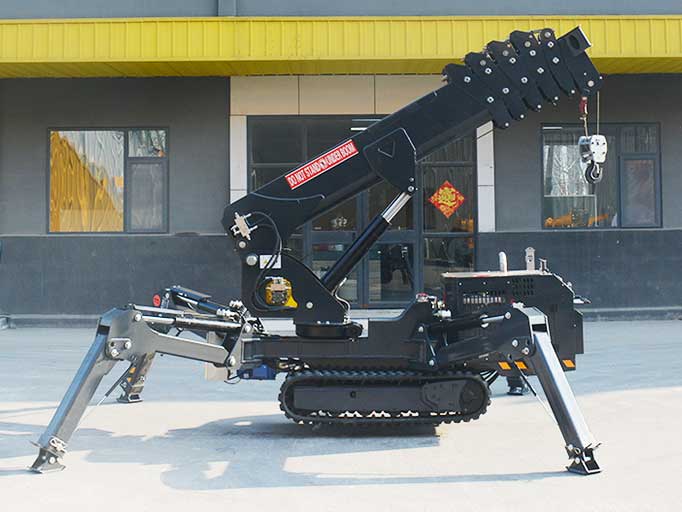

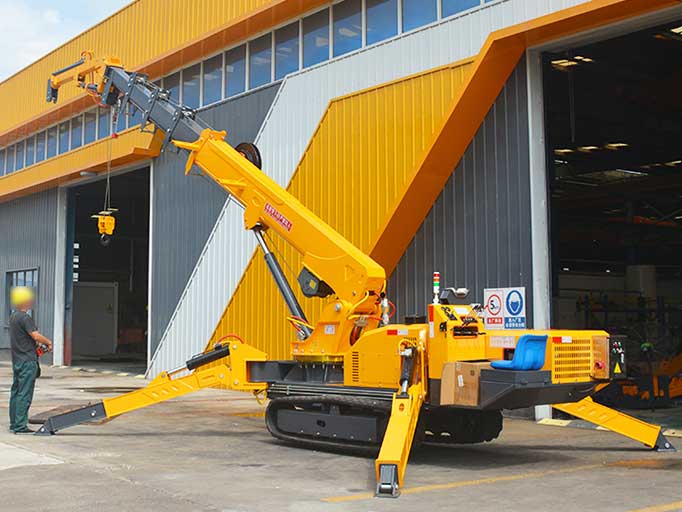

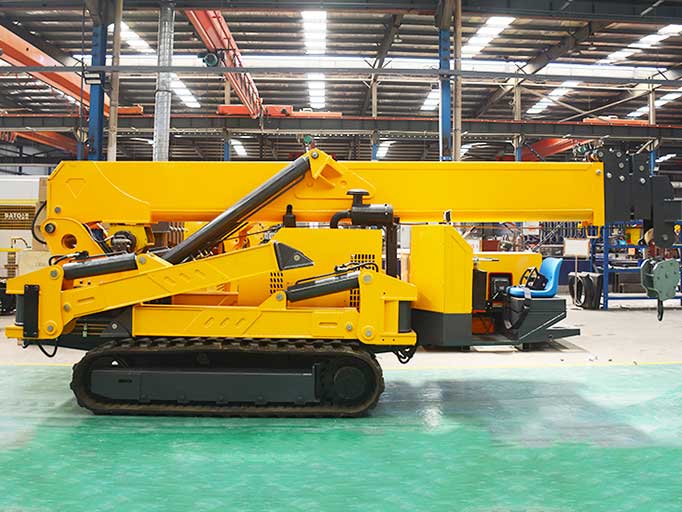

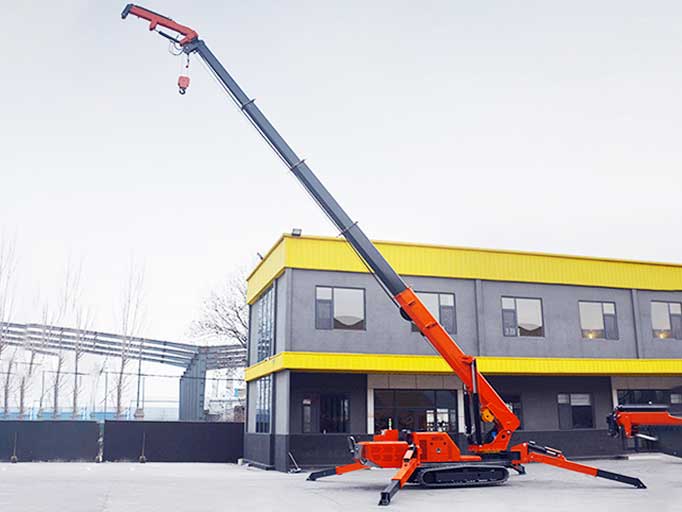

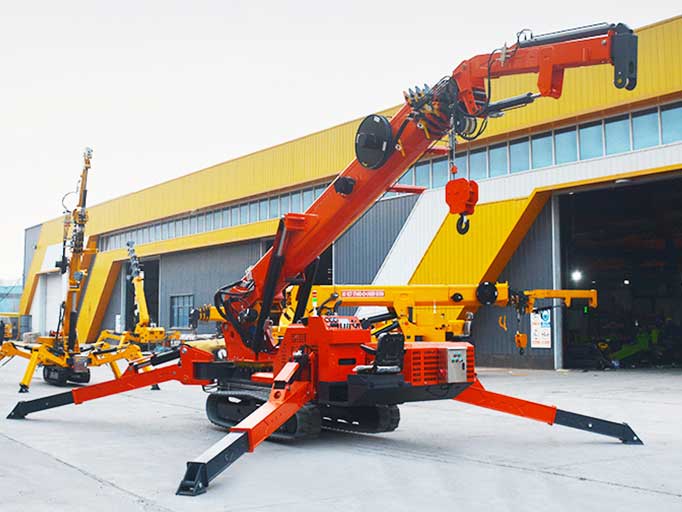

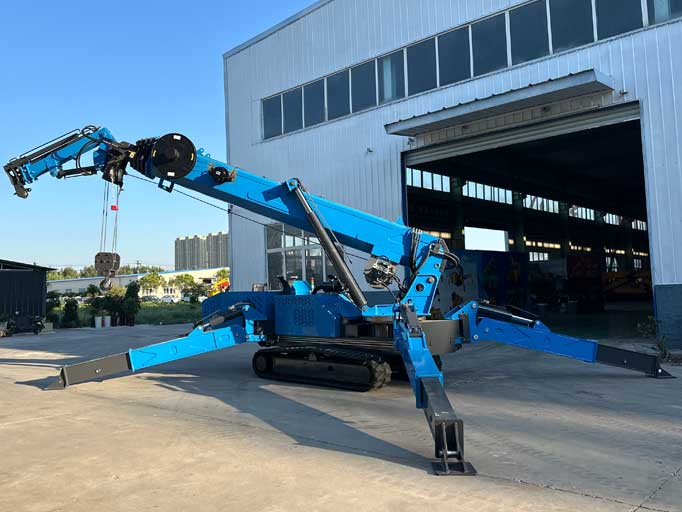

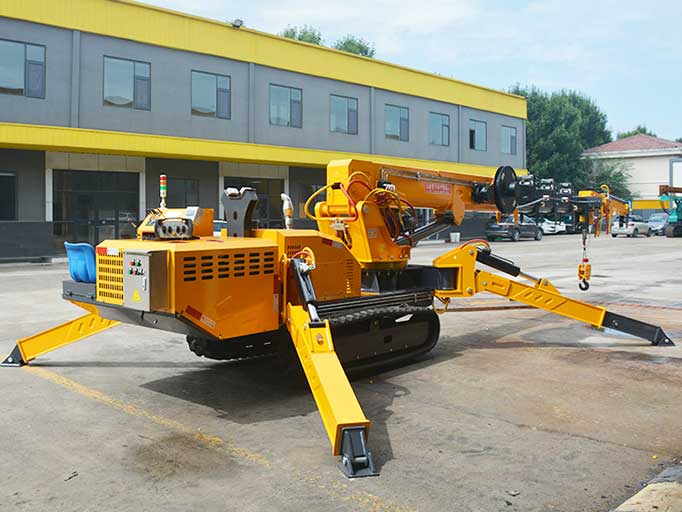

Spider Crane

Electric Spider Crane, Diesel Spider Crane

Lifting Capacity: 3 ton – 16 ton (customized models available)
Max Lifting Height: Up to 30 m
Drive System: Hydraulic drive
Power Options: Diesel engine / Electric / Lithium battery
Control Mode: Remote + Manual operation
Travel Speed: 0–2.5 km/h (hydraulic drive)
Optional Configurations: Wireless remote control, working basket, jib extension, load moment indicator
Crawler Type: Rubber tracks / Steel tracks
Safety System: Load moment limiter, overload protection, emergency stop
Diesel Engine Options: Euro V emission standard / EPA compliant engine

Applications:

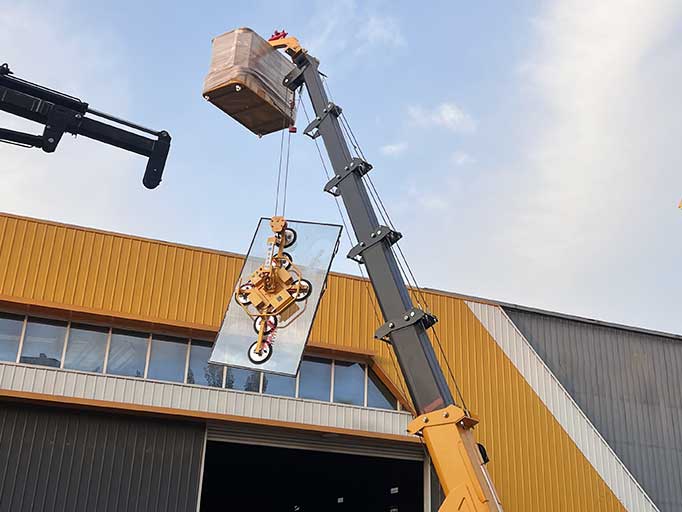

Glass & Curtain Wall Installation, Factory Maintenance & Machine Handling, Construction, Warehouse, and Logistic Yard Operation

Description
Technical Advantage
Why Choose Kinocranes
Customized Cases

Description

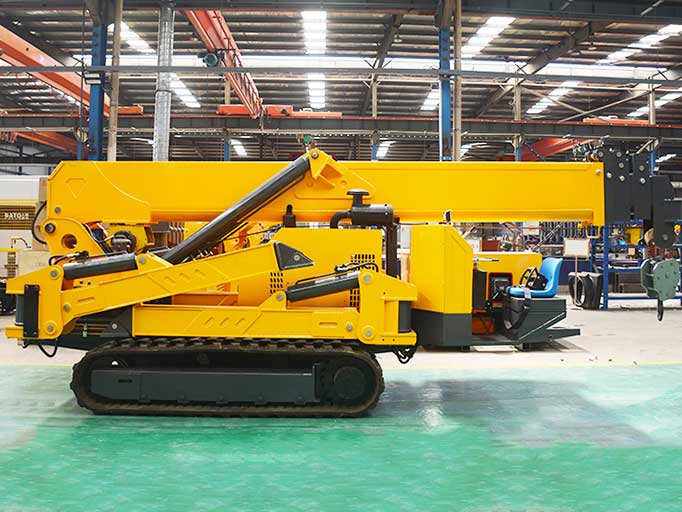

The Spider Crane, also known as a mini crawler spider crane, is a compact yet powerful lifting solution designed for confined or hard-to-reach areas where traditional cranes cannot operate.

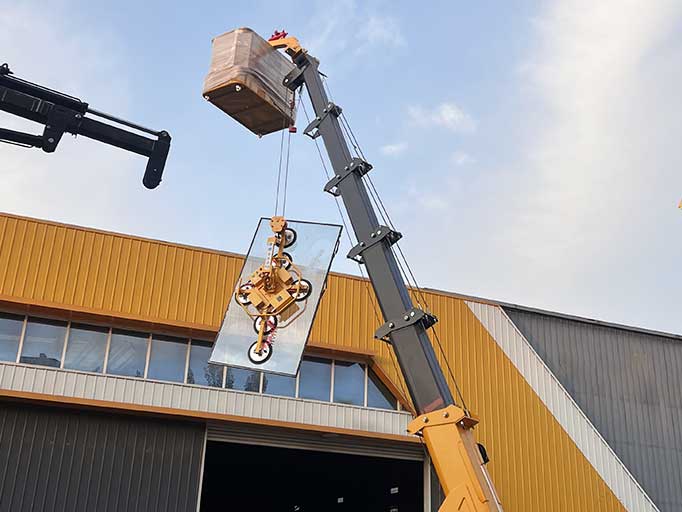

Featuring flexible outriggers, remote control operation, and strong lifting capability, it is ideal for glass installation, equipment maintenance, indoor construction, and industrial material handling.

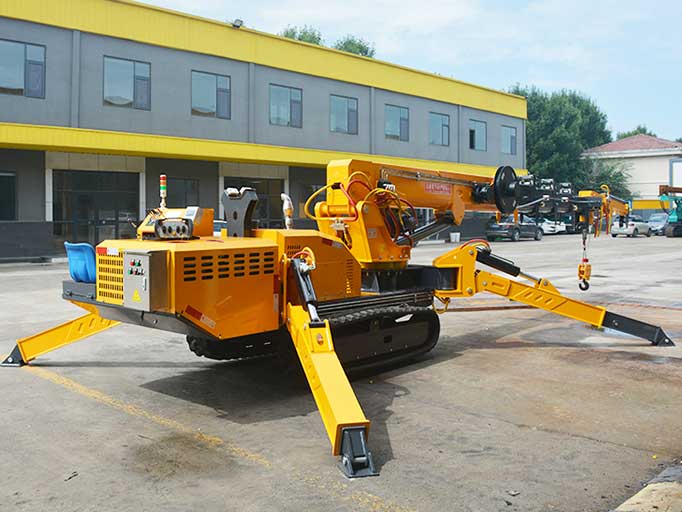

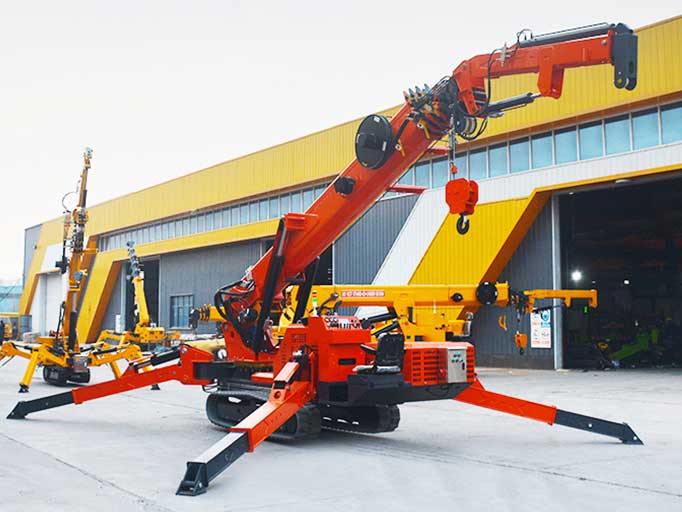

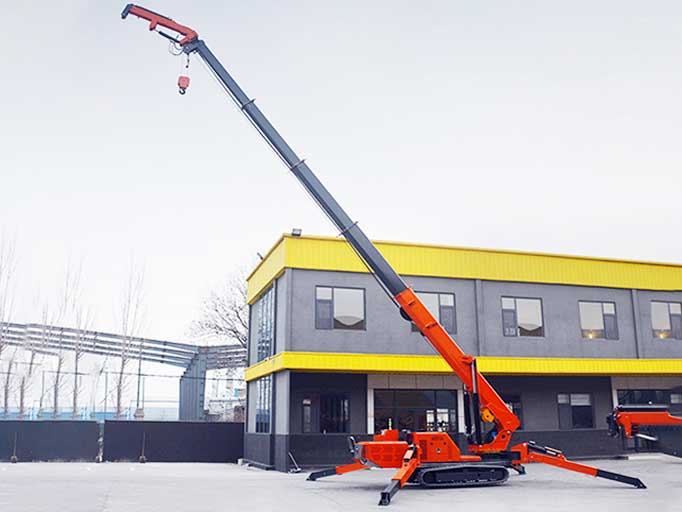

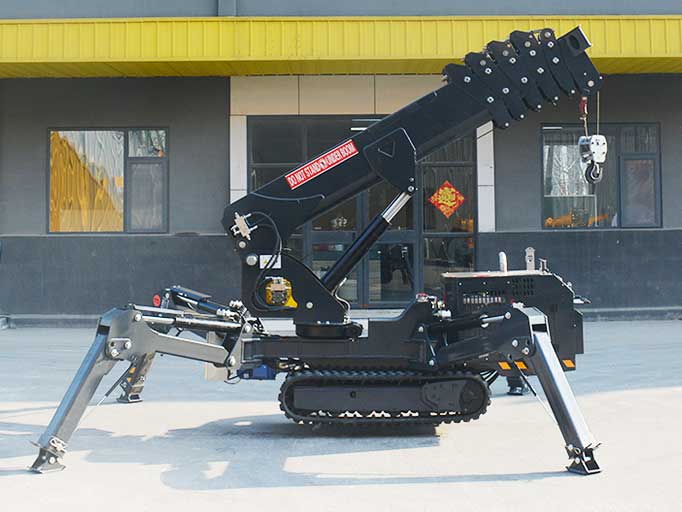

Kinocranes provides a complete range of spider cranes from 3 tons to 16 tons, offering flexible power options including diesel, electric, or lithium battery configurations.

Technical Advantage

Feature	Description
Moment Limiter	Displays boom length, angle, and prevents overwind or overload.
Hydraulic System	Integrated circuit with oil-lock valves; no O-rings; high reliability.
Wire Rope	High-grade Langshan steel rope, with traceable serial numbers.
Boom Material	BS700 manganese steel (Baosteel)
Welding Structure	Mortise-tenon + full weld with box-type chassis for extra rigidity.
Motor Type	Piston motor (≥5t) with higher torque and longer life; smaller models may use cycloid motor.
Painting	Powder coating (inside/outside) for corrosion and weather resistance.

Why Choose Kinocranes

Proven Manufacturing – Decades of crane design experience and export-quality control.
Reliable Components – Branded hydraulic system and traceable materials.
Flexible Customization – Supports color, power system, and functional upgrades.
Competitive Pricing – Factory-direct sales, better value than domestic peers.
Global Support – CE/ISO certified, with professional after-sales and spare parts service.

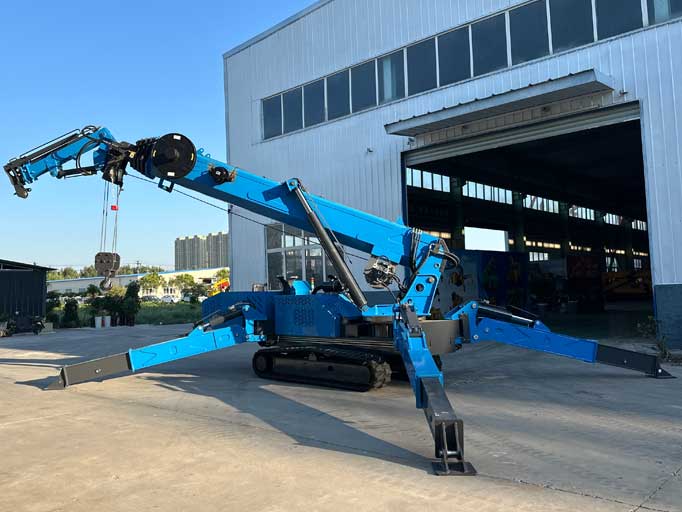

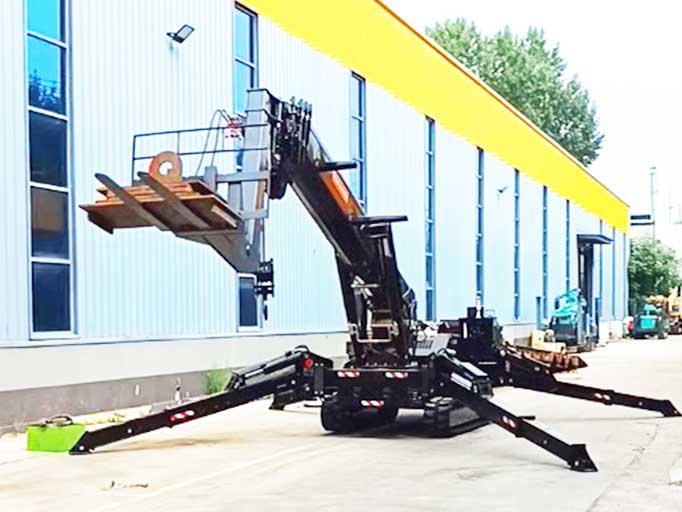

Customized Cases

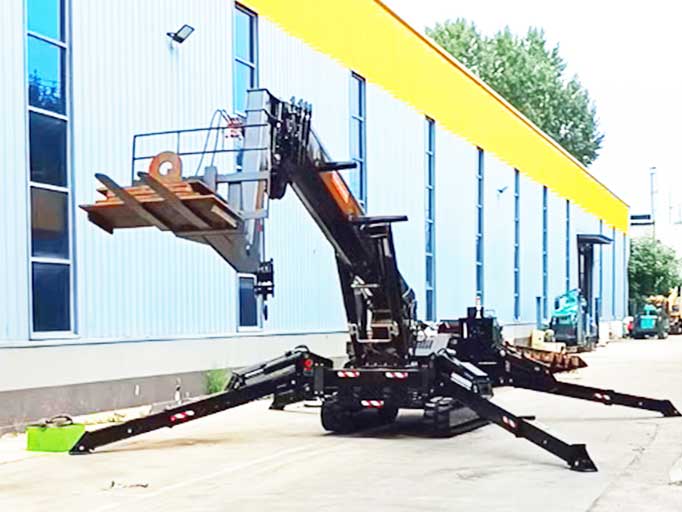

To meet diverse lifting requirements across construction, installation, and industrial applications, we provide a wide range of custom-engineered attachments and tailored lifting solutions.
Below are some representative project cases showcasing our customization capabilities.
