How often should I replace brake pads on my overhead crane

A crane brake is a mechanical device used in cranes to control their movement and ensure the safe operation of the crane system.

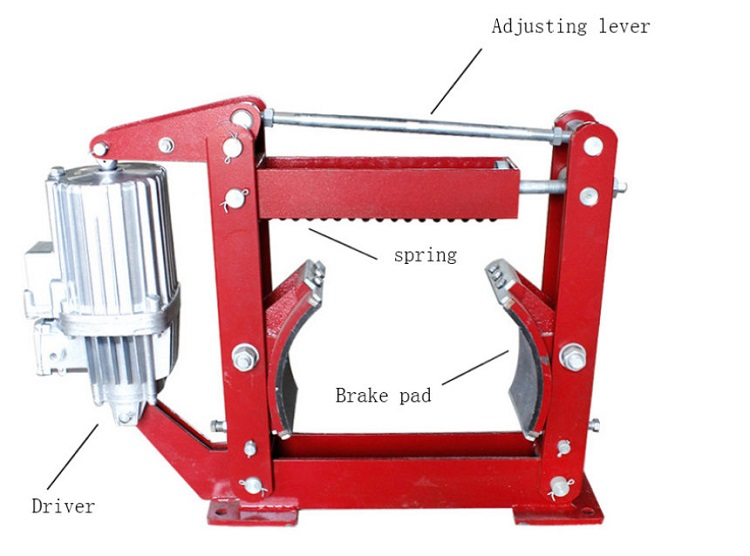

Crane Brake Components
Crane Brake Components

The frequency of replacing brake pads on an overhead crane depends on several factors, including the type of crane, its usage, environment, and maintenance practices. It is important to follow the manufacturer's recommendations and guidelines for the specific crane model you are using.

As a general rule, you should replace the brake pads when they reach 2mm of wear or 50% of their original thickness. However, you should also regularly inspect the brake pads and other components to determine the appropriate replacement schedule.

Factors that may affect the replacement frequency include:

  1. Usage: Heavy or continuous usage can lead to faster wear and tear of the brake pads, requiring more frequent replacements.
  2. Environmental factors: Exposure to harsh environmental conditions, like dust, moisture, and corrosive chemicals, can accelerate the wear of brake pads. Be mindful of the environment your crane operates in and adjust your maintenance schedule accordingly.
  3. Maintenance history: Proper maintenance can extend the life of your brake pads. Keep a record of all maintenance activities and brake pad replacements to help identify patterns and optimize the replacement schedule.

Always prioritize regular maintenance and adhere to manufacturer guidelines to ensure the safe and efficient operation of your overhead crane.

When it's time to replace the brake pads on your overhead crane, follow these steps to ensure the process is done correctly and safely:

  1. Turn off the crane and lock out/tag out the power source: Before starting any maintenance work, ensure the crane is turned off and disconnected from the power source. Follow the lockout/tagout procedures to prevent accidental energizing during the maintenance process.
  2. Access the brake assembly: Locate and access the brake assembly according to the manufacturer's instructions. This may require the use of ladders, platforms, or other access equipment.
  3. Loosen the brake screws and release the tension on the central spring: Loosen the single-sided brake screws on both sides and slightly release the tension on the central spring.
  4. Open the brake pad holders: Turn the middle limit screw to open the brake pad holders on both sides. This will create enough space for you to remove the old brake pads and install the new ones.
  5. Remove the old brake pads: Carefully remove the worn brake pads from the brake pad holders. Dispose of them properly, following any applicable regulations or guidelines.
  6. Install the new brake pads: Position the new brake pads in the brake pad holders, ensuring they are seated properly and evenly.
  7. Adjust the tension of the screws and the spring: Adjust the tension of the screws and the spring appropriately. It should neither be too loose nor too tight. This step is crucial to ensure the proper functioning of the braking system.
  8. Inspect the brake assembly: Before reassembling, inspect the brake assembly for any signs of wear, damage, or corrosion. Replace or repair any damaged components as necessary.
  9. Reassemble the brake assembly and restore power: Once you've completed the brake pad replacement, reassemble the brake assembly following the manufacturer's instructions. After everything is in place, remove the lockout/tagout devices and restore power to the crane.
  10. Test the crane's braking system: Before resuming normal operations, perform a test to ensure the braking system is functioning properly. Make any necessary adjustments if you notice any issues during the test.

Remember to follow the manufacturer's guidelines and prioritize regular maintenance to ensure the safe and efficient operation of your overhead crane.
