Wheel Load Calculator

Compute max & min wheel loads for double-girder bridge cranes, plus static and fatigue verification against your rail and wheel specification. Based on GB/T 3811 and FEM 1.001.

GB/T 3811 FEM 1.001 Double-girder bridge Metric units Shareable URL

InputsEditable

Crane Parameters Geometry & mass

Rated capacity Q · t

Span L · m

Trolley weight G₁ · kg

Crane total weight G · kg

Hook minimum limit a · mm

Distance from rail centerline to hook at closest approach.

Trolley wheels n₁

pcs

Bridge wheels n · total

pcs

Total wheels across both end-trucks (end-beams).

Wheel & Rail Verification spec

Wheel diameter D · mm

Travel speed v · m/min

Rail type

b = 40 mm · r = 8 mm

Allowable pressure ratio k · N/mm²

Duty class M · C₂

Speed factor C₁ · auto

auto

Looked up from wheel Ø & travel speed.

Results

Pmax · Bridge wheel

--kN

Under loaded + trolley at closest hook

Pmin · Bridge wheel

--kN

Unloaded + trolley at far side

Trolley wheel — max(Q·9810 + G₁·9.81) / n₁ / 1000

Trolley wheel — minG₁·9.81 / n₁ / 1000

Equivalent fatigue loadP_eq = (Pmin + 2·Pmax) / 3

Allowable load — fatigue[P] = k·D·(b−2r)·C₁·C₂ / 1000

Allowable load — static[P]ₛ = 1.9·k·D·(b−2r) / 1000

PASS

Fatigue check — equivalent wheel load kN ≤ allowable kN.

PASS

Static check — Pmax kN ≤ allowable kN.

Ready to spec this crane?

We'll use your inputs — span, capacity, duty class, rail type — to pre-fill a configured quote. Engineer response within 24 hours.

Get a quote with these specs →

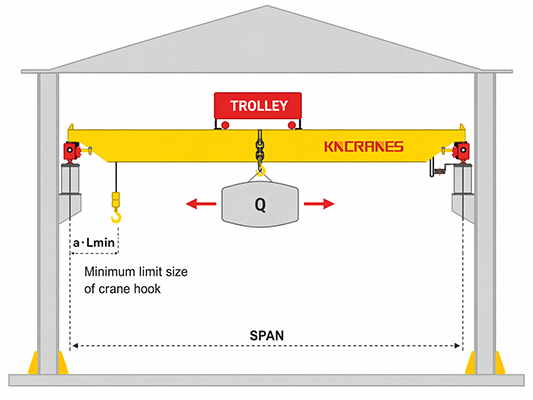

How wheel load is applied

Maximum wheel load occurs on the side nearest the hook, when the trolley sits at the closest-approach position a. The formulas split the trolley + payload reaction across the bridge wheels of that rail, then add half the dead weight of the remaining bridge structure.

QRated hoisted mass — tonnes
GTotal crane weight — kg
G₁Trolley weight — kg
LBridge span — m
aHook minimum limit — mm
n, n₁Bridge / trolley wheel count
PmaxMax bridge wheel load — kN
PminMin bridge wheel load — kN

How this calculator works

Wheel loads determine runway beam sizing, column design and foundation anchors. Getting them right early saves structural rework later. This tool implements the formulas from GB/T 3811 (China) and their FEM 1.001 equivalents used across Europe.

Bridge wheel loads

Pmax = (Q·9810 + G₁·9.81) · (L·1000 − a) / (L·1000) / (n/2) / 1000 + (G·9.81 − G₁·9.81) / n / 1000 Pmin = G₁·9.81 · a / (L·1000) / (n/2) / 1000 + (G·9.81 − G₁·9.81) / n / 1000

The first term is the trolley + payload reaction at the near rail. The second term is half of the bridge's self-weight (excluding trolley) distributed across its wheels. Output is in kilonewtons.

Trolley wheel loads

Ptrolley,max = (Q·9810 + G₁·9.81) / n₁ / 1000 Ptrolley,min = G₁·9.81 / n₁ / 1000

Fatigue verification

The equivalent cyclic wheel load is compared to an allowable that accounts for wheel material, rail contact width, and duty class:

Peq = (Pmin + 2·Pmax) / 3 [P] = k · D · (b − 2r) · C₁ · C₂ / 1000

Pass criterion: P_eq ≤ [P].

Static strength verification

[P]static = 1.9 · k · D · (b − 2r) / 1000

Pass criterion: Pmax ≤ [P]_static. Both must pass for the wheel + rail combination to be acceptable.

Reference tables

Rail dimensions (b, r) — mm

Rail	b · face	r · radius
40 × 50	40	8
40 × 60	40	8
38 Kg/m	68	13
43 Kg/m	70	13
50 Kg/m	70	13
60 Kg/m	73	13
75 Kg/m	75	15
QU 70	70	6
QU 80	80	8
QU 100	100	8
QU 120	120	8

Duty class factor C₂ · GB/T 3811

Class	Examples	C₂
M1–M2	Hand / occasional	1.25
M3–M4	Light / regular	1.12
M5	Medium	1.00
M6	Heavy	0.90
M7–M8	Very heavy / continuous	0.80

Wheel Load Calculator

Crane Parameters Geometry & mass

Wheel & Rail Verification spec

Ready to spec this crane?

How wheel load is applied

How this calculator works

Bridge wheel loads

Trolley wheel loads

Fatigue verification

Static strength verification

Reference tables

Related products & tools

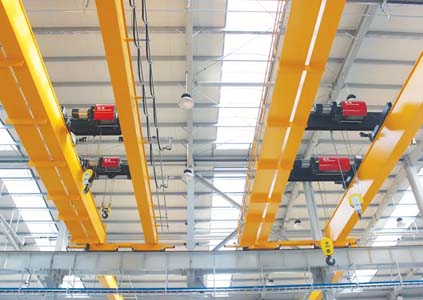

Double-girder bridge crane · 20 t

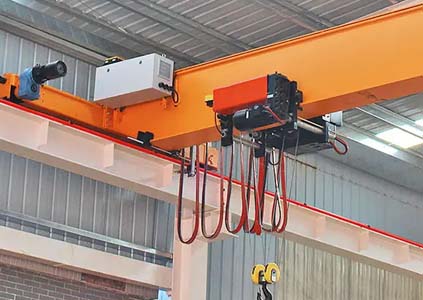

European-style low-headroom crane
